Smart-UPS On-Line Step-Down Transformer SRT5KRMTF 2
Electrical safety
• 230 V models only: In order to maintain compliance with the EMC directive for products sold in Europe, output cords
attached to the transformer must not exceed 10 meters in length.
• The protective earth conductor for the transformer carries the leakage current from the load devices (computer
equipment). An insulated ground conductor is to be installed as part of the branch circuit that supplies the transformer.
The conductor must have the same size and insulation material as the grounded and ungrounded branch circuit supply
conductors. The conductor will typically be green and with or without a yellow stripe.
• The UPS input ground conductor must be properly bonded to protective earth at the service panel.
• If the UPS input power is supplied by a separately derived system, the ground conductor must be properly bonded at
the supply transformer or motor generator set.
General information
• The model and serial numbers are located on a small, rear panel label. For some models, an additional label is located
on the chassis under the front bezel.
• Recycle the package materials or save them for reuse.
FCC Class A radio frequency warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are intended to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Product Information
The Smart-UPS
™
SRT transformer is intended for use as an isolation transformer. This transformer can also function as
a step down transformer.
The transformer can be installed in a standard 19-inch rack with the supplied rail kit.

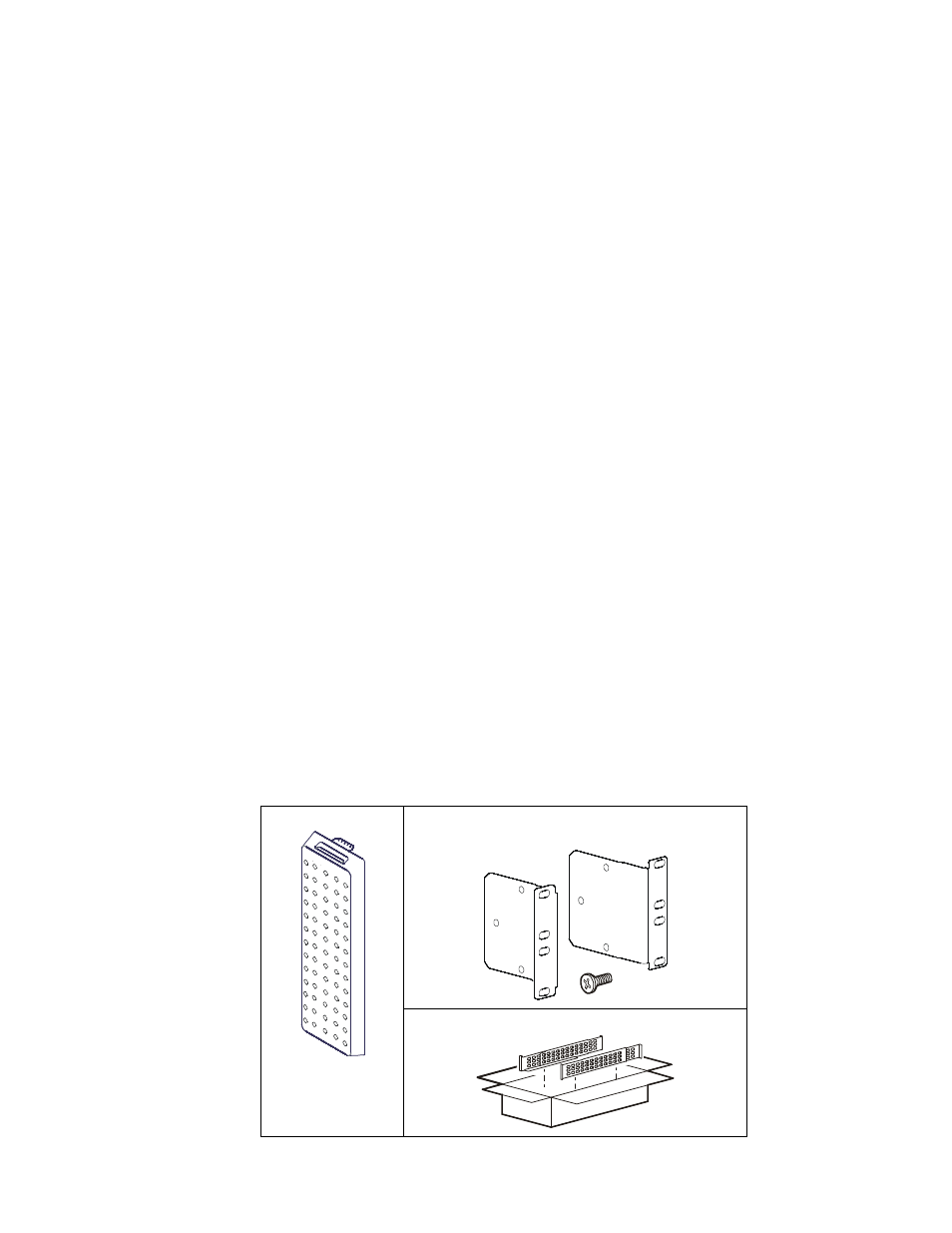

Package Contents
Inspect the contents upon receipt. Notify the carrier and dealer if the unit is damaged.
Front bezel • 1 pair rack-mount brackets
• 6 flat head screws to secure rack-mount brackets
Rail kit
