INTRODUCING NUCLEUS NII MOTOR
16
Attach part ➀ lens gear to the lens, following
the indicated direction. Secure part ➁ to
complete the assembly.
ATTACHING MOTOR TO LENS
Note: If the lens comes with a 0.8 module gear ring, skip this step.
➀
➁
➄
⑥
➂
�
TECHNICAL DATA
Material: Aluminum Alloy+Plastic Dimensions: 83*46*31mm Weight: 80g Color: Black
< Left Side > < Rear Side >
Motor Driver
0.8M Lens Gear
LED Indicator
USB-C Port 1
USB-C Port 2
Connects to Lens
15mm Rod Holder
Tie Down
For Mounting via a 15mm Rod
For securing the Motor
01
02
03
04
05
06
07
08

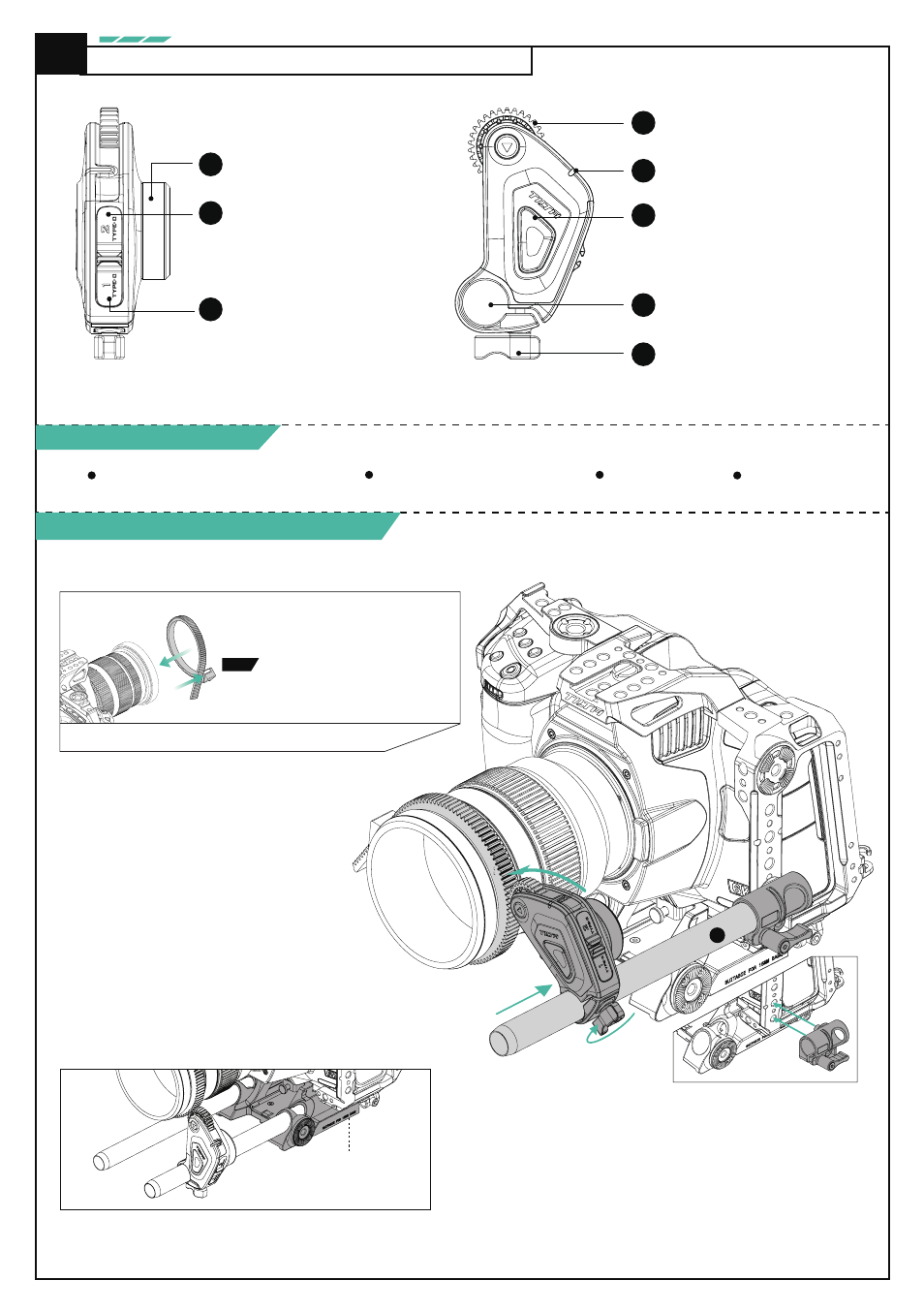

(1) Attaching Lens Gears
(2) Attaching the Rod Holder & 15mm Rod
(3) Attaching the Motor
Attach the ➂ rod holder to the 1/4" thread on the cage
side arm, and tighten the screw. Then, secure the 15mm
rod ➃ to the rod holder, which will be used to attach the
motor.
Mount the ➄ motor onto the 15mm rod, adjust the motor
angle, and then engage the motor gear with the adjustable
lens gear and then tighten the tie down ➅ to complete
the assembly.
Supports PD input,
(input voltage: 7.4V-16.8V)
Supports USB-C to C
control cables
Function Button
Single-Click : Switch Motor
FOCUS / IRIS / ZOOM / OTHERS
Double-Click : Enter Pairing Mode
Long Press 3s : Calibrate Lens
Supports PD Input/Output,
(input voltage: 7.4V-16.8V)
Supports USB-C Run / Stop
cables
gear pitch, can be used with the adjustable lens
gear included in the kit or the TILTA Seamless
Focus Gear Ring (Optional).
Compatible with focus rings with a 0.8 Note:
Optional TILTA rod adapters for motor assembly
Including: 15mm Single Rod Holders and LWS Baseplates
TA-BSP�-��-B
