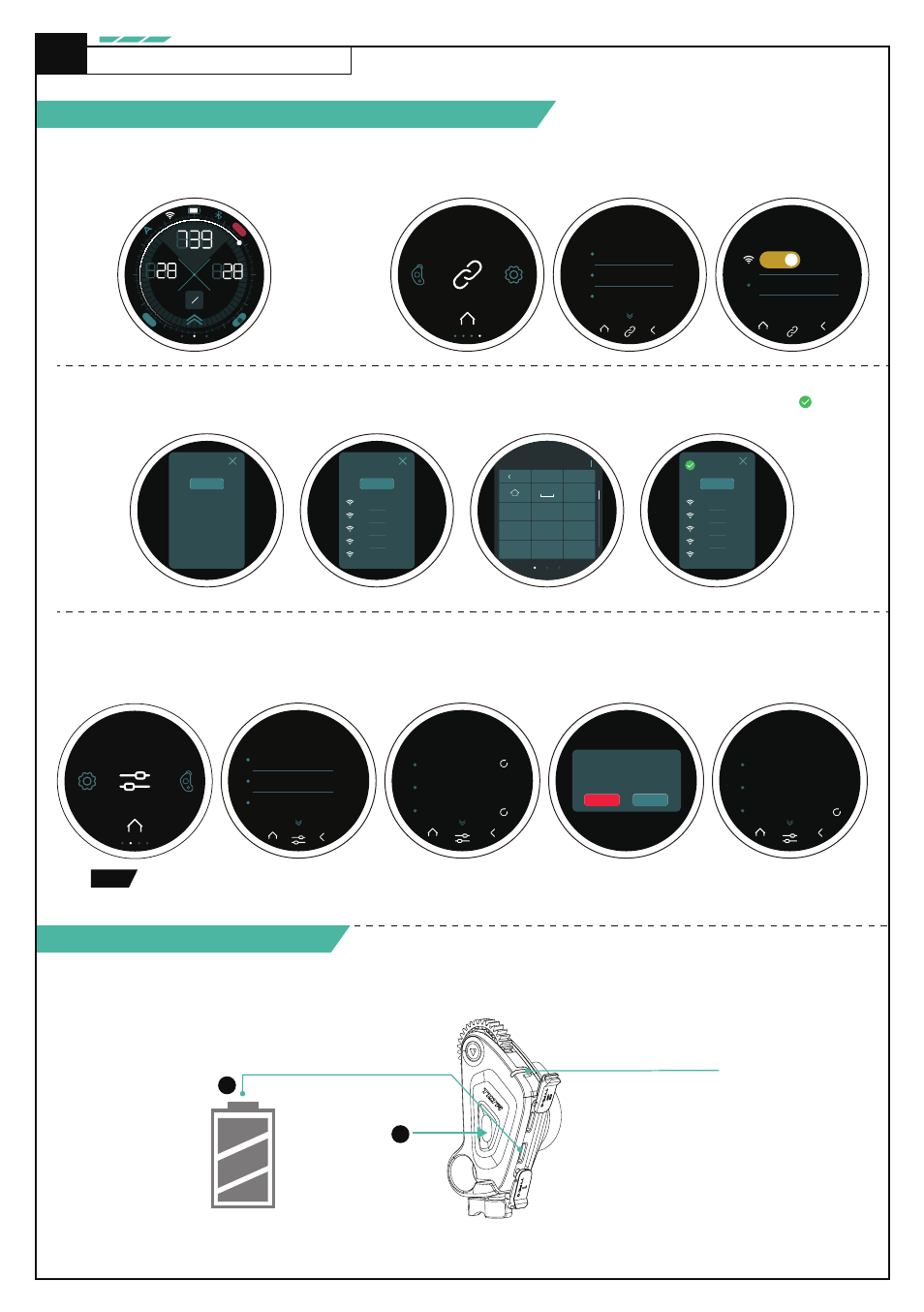

FIRMWARE UPDATE
21
Click on SEARCH to find available WiFi networks, enter the password, then click OK , when the green check mark icon appears,
the connection is successful.
02 Choose CONNECT - WIFI mode, then turn ON and click
SETTINGS to enter the WIFI searching mode.
HAND WHEEL CONTROLLER - FIRMWARE UPDATE
Enter the hand wheel controller’s menu, select SYSTEM - FIRMWARE UPDATE , choose to update the hand wheel
HAND WHEEL-M , and click CONFIRM to start the update. Once the update progress reaches 100%, the update is complete
and the menu will return to the main interface.
�
�
PD Power Cable
Power Source
Green Light will Flash Briefly
Enter the hand wheel controller’s main
interface, swipe from bottom to top to
access the menu.
MOTOR - FIRMWARE UPDATE
Note: Only the HAND WHEEL-M hardware requires online updates, while other hardware can be updated offline once the
Hand Wheel-M component update is completed.
If the hand wheel controller has already been updated press and hold the motor's FUNCTION button ① and then connect power ② .
A green light will flash briefly, which means the motor is in update mode.
CONNECT
� . � G
W I F I
CONNECT
BLUETOOTH
O N
W I F I
SETTINGS
CONFIRM CANCEL
THE SCREEN WILL TURN OFF
PLEASE WAIT FOR THE
UPGRADE TO FINISH
