Figure 3B shows a block diagram of the Innova-Switch™ with the addition of an EMC filter
required for the CE options (see section 7.0).

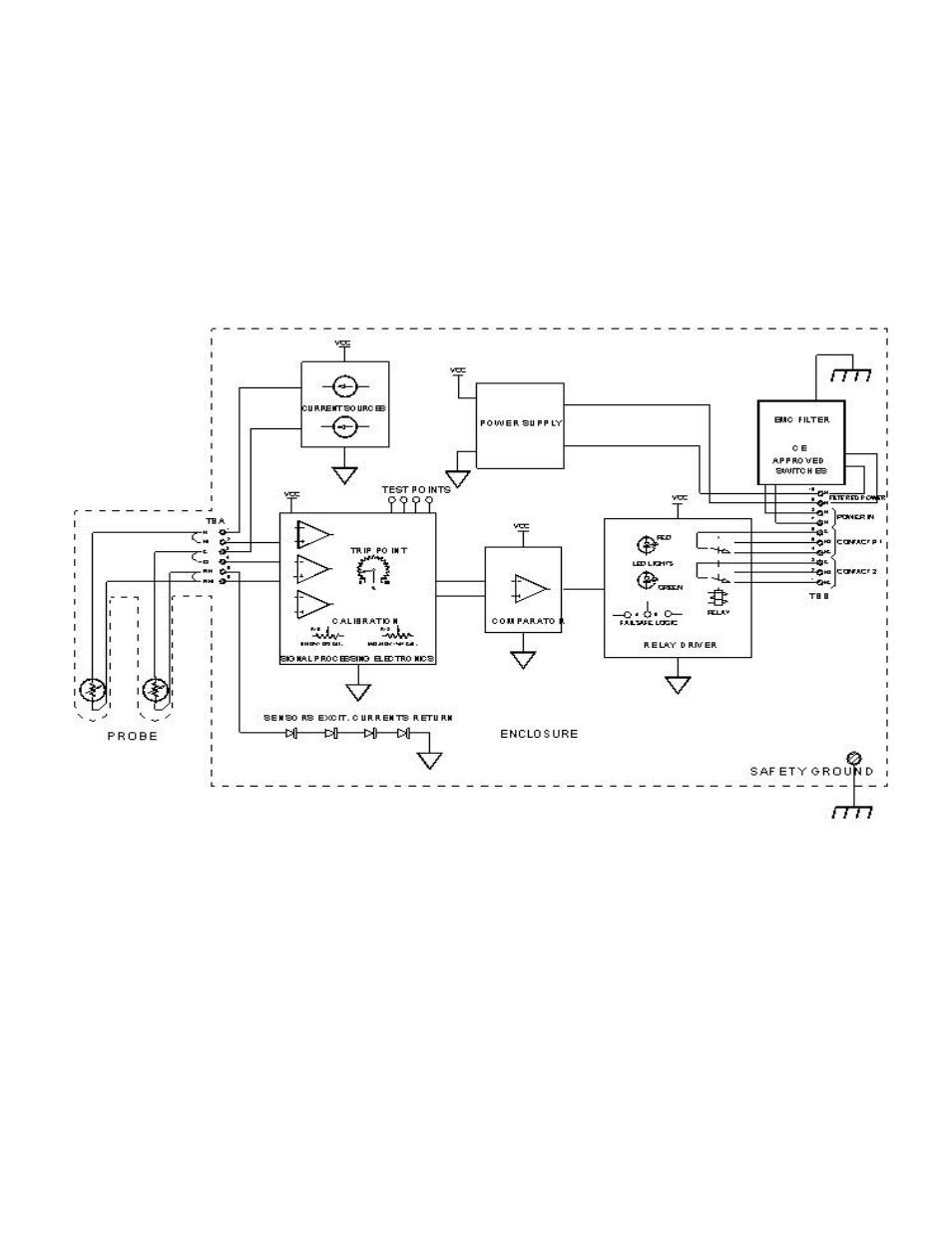

FIGURE 3B: Innova-Switch™ MODELS WITH THE CE OPTION SWITCH BLOCK DIAGRAM
