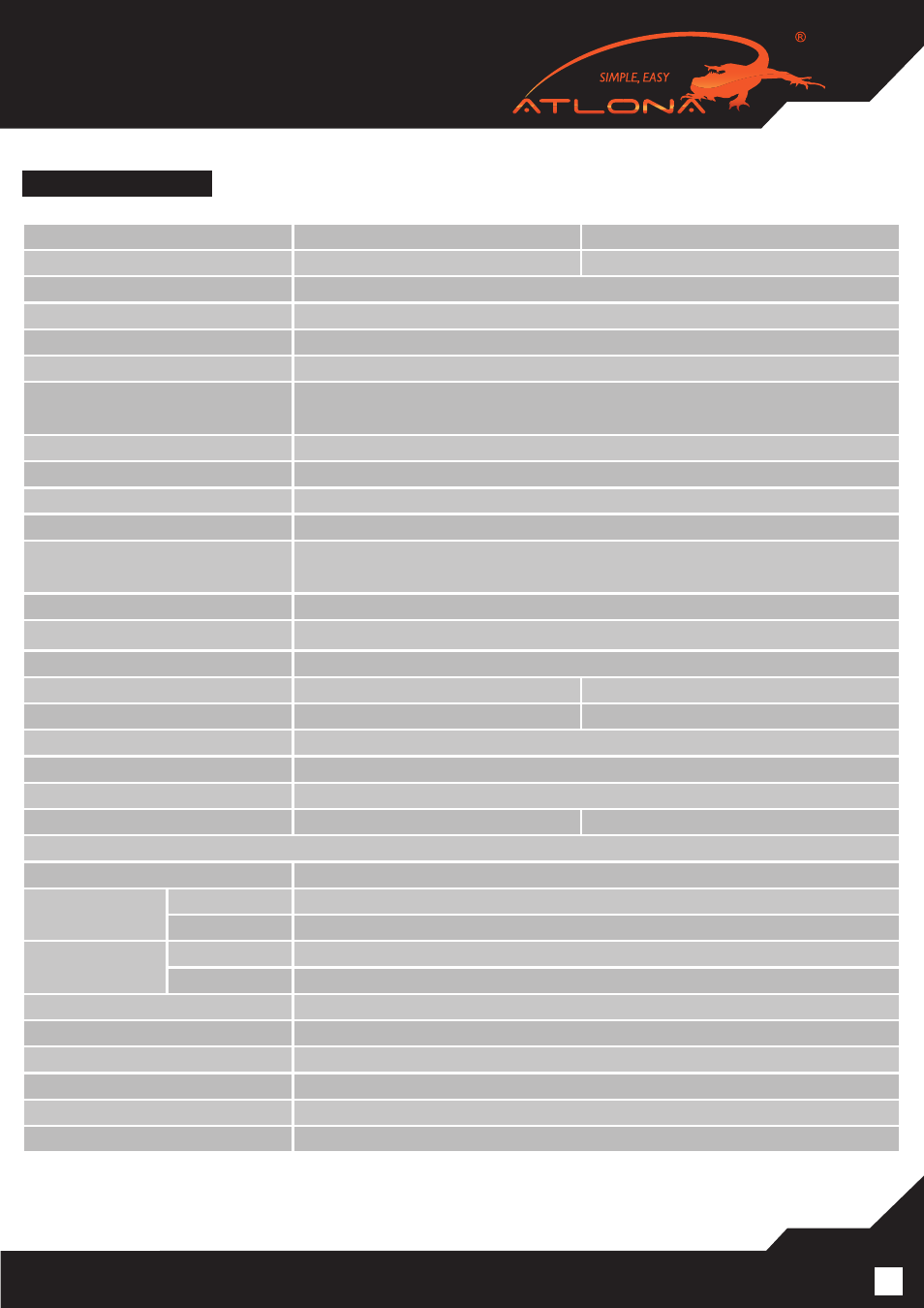

SPECIFICATIONS:
Technical Transmitter Receiver
3D Support Yes Yes
HDMI TM compliance HDMI TM 1.3c
HDCP compliance Yes
Video bandwidth Single-link 225MHz (6.75Gbps)
Video support 480i / 480p / 720p / 1080i / 1080p60 24/30/36-bit color
HDMI TM transmission
[24-bit]
Full HD (1080p) – 130ft (40m) [CAT5e] / 165ft (50m) [CAT6]
HD (720p/1080i) – 165ft (50m) [CAT5e] / 200ft (60m) [CAT6]
Audio support Surround sound (up to 7.1ch) or stereo digital audio
Equalization 8-level digital control at receiver
Input TMDS signal 1.2 Volts [peak-to-peak]
Input DDC signal 5 Volts [peak-to-peak, TTL]
ESD protection
[1] Human body – ±19kV (air-gap discharge) & ±12kV (contact discharge)
[2] Core chipset – ±8kV
PCB stack-up 4-layer board [impedance control — differential 100Ω; single 50Ω]
IR remote control Electro-optical characteristics: τ = 25° / Carrier frequency: 20-60kHz
IR pass-through Bi-directional
Input 1x HDMI TM + 1x 3.5mm 2x RJ45 + 1x 3.5mm
Output 2x RJ45 + 1x 3.5mm 1x HDMI TM + 1x 3.5mm
HDMI TM connector Type A [19-pin female]
RJ45 connector WE/SS 8P8C with 2 LED indicators
3.5mm socket Blue socket for IR blaster / Green socket for IR receiver
Rotary control switch None Signal level equalization
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model 83 x 74 x 27mm (3.3” x 2.9” x 1.1”] for sender / receiver
Package 270 x 175 x 80mm (10.6” x 6.9” x 3.1”)
Weight
Model 215g (7.6 oz) for sender / receiver
Package 815g (1.8 lbs)
Fixedness Wall-mounting case with screws
Power supply 5V DC either at Sender Unit or at Receiver Unit
Power consumption 1.5 Watts [max]
Operation temperature 0~40°C (32~104°F)
Storage temperature -20~60°C (-4~140°F]
Relative humidity 20~90% RH (no condensation)
