5.2. Receiving Module

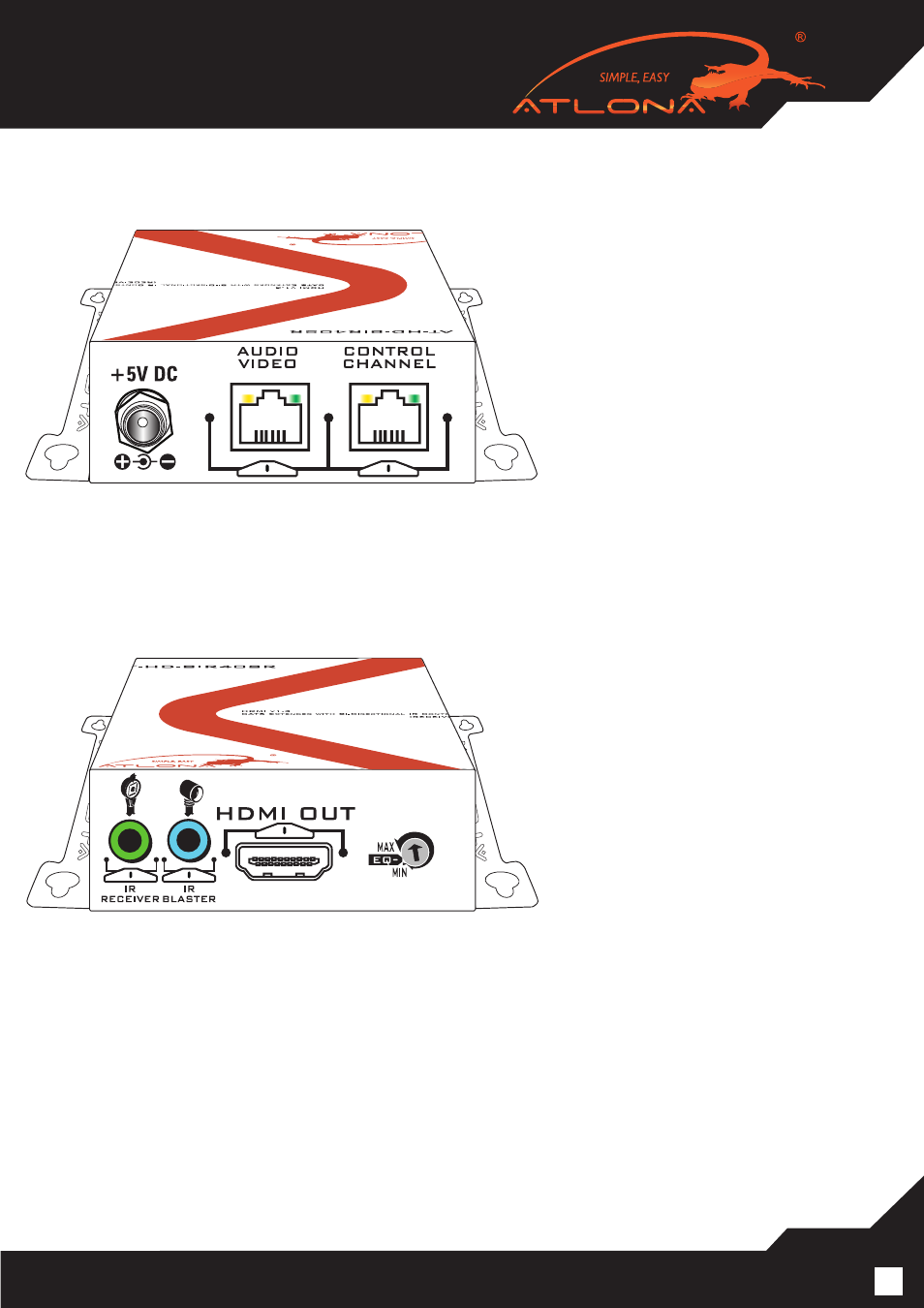

5.2.1. Front Panel
+5V DC: Connect to 5V DC power supply unit either at the Receiver Unit or the Sender Unit. Powered at one end is
enough to supply the whole extender set.
AUDIO VIDEO: Connect a Cat-5/5e/6 cable to the AUDIO/VIDEO port on the sender unit
CONTROL CHANNEL: Connect a Cat-5/5e/6 cable to the CONTROL CHANNEL port on the sender unit
5.2.2. Rear Panel
IR RECEIVER: 3.5mm infrared socket for plugging in the extension cable of IR receiver
IR BLASTER: 3.5mm infrared socket for plugging in the extension cable of IR blaster
HDMI OUT: Connects to a HDMI display or projector with a HDMI male-male cable
EQ: Adjust the 8-level signal equalization control to the received HDMI signals. The HDMI signal level varies from
MAX (strongest) to MIN (weakest) for respective transmission length from longest possible range to short
distance. Dial the EQ from MIN to MAX and stop turning the rotary switch whenever the audio/video is playing
normally. Inappropriate signal level setting may cause overpowering issues that would shorten the product's life
significantly!
