IR PASS-THROUGH:

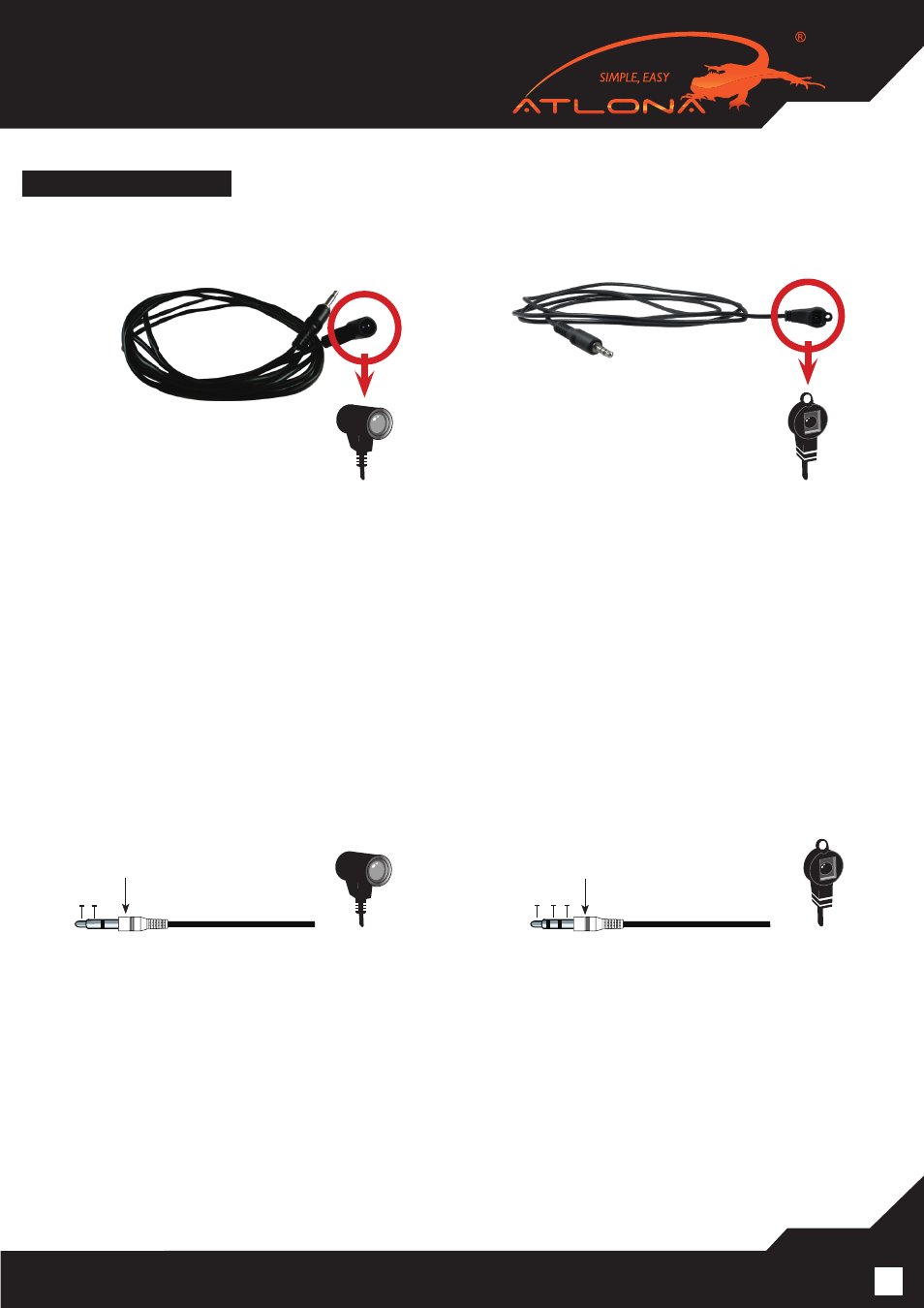

6.1 IR Extenders
IR Blaster IR Receiver
6.2 IR Sockets
IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR receiver from the other enf
to control the devices corresponding to the IR signals.
IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR remote controls of the
corresponding devices.
CAUTION!
Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders. Please
check carefully before plugging in the IR extender to the respective IR sockets. Warranty will not
cover the damage.
6.3. Definition of IR Earphone Jack.
IR Blaster IR Receiver
1. IR Signal [20-60KHz]
2. Grounding
1 2
1. Power
2. IR Signal [20-60KHz]
3. Grounding
1 2 3
