PANEL DESCRIPTIONS:
5.1. Transmitting Module

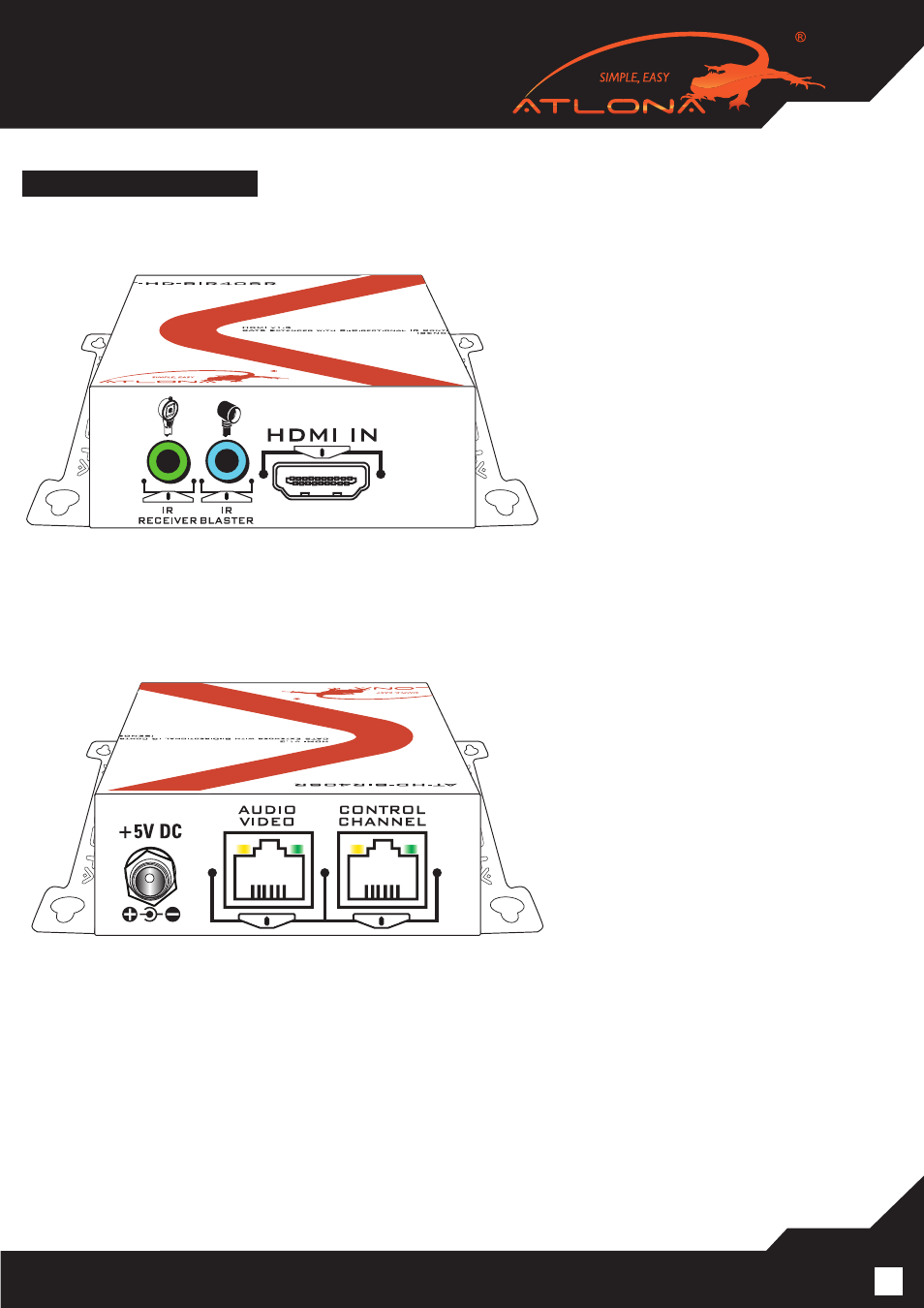

5.1.1. Front Panel
IR RECEIVER: 3.5mm infrared socket for plugging in the extension cable of IR receiver
IR BLASTER: 3.5mm infrared socket for plugging in the extension cable of IR blaster
HDMI IN: Connects to a HDMI source with a HDMI male-male cable
5.1.2. Rear Panel
+5V DC: Connect to 5V DC power supply unit either at the Sender Unit or the Receiver Unit. Powered at one end is
enough to supply the whole extender set.
AUDIO VIDEO: Connect a Cat-5/5e/6 cable to the AUDIO/VIDEO port on the receiver unit
CONTROL CHANNEL: Connect a Cat-5/5e/6 cable to the CONTROL CHANNEL port on the receiver unit
