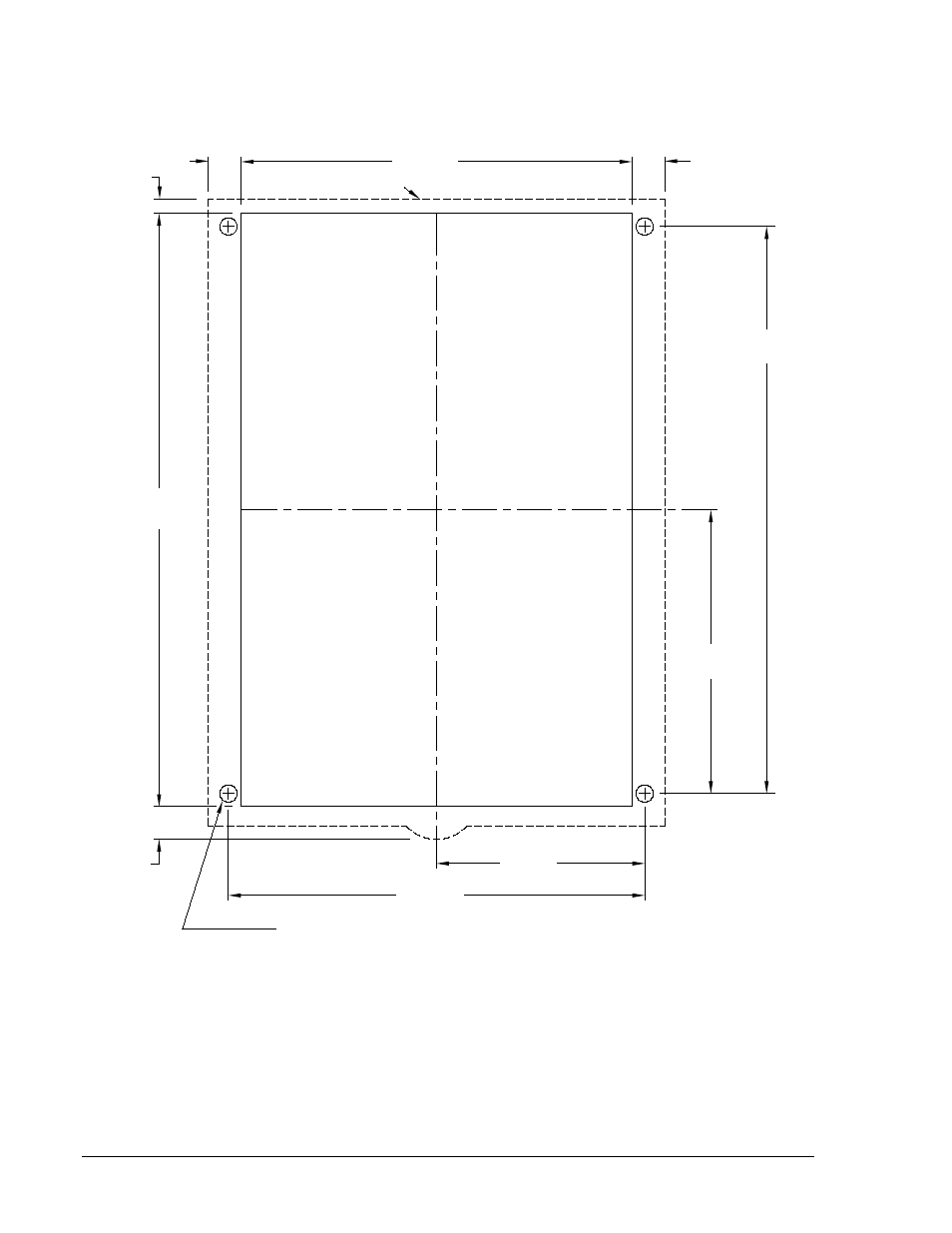

Figure 4-1. Panel Cutting/Drilling, Semi-Flush, S1 Case
3.03 (77)
6.06 (154)
0.25 (6) diameter, 4 places
CL
Cut-Out
0.575
(15)
8.63
(219)
0.552
(14)
5.69 (144)
Outer Edge of Cover
0.480
(12)
8.25
(210)
4.13
(105)
0.480
(12)
P0072-12
