9.17.075
Bronkhorst Cori-Tech BV
8
Start FlowPlot through the Start
menu: Start >> Programs >>
Bronkhorst >> FlowPlot

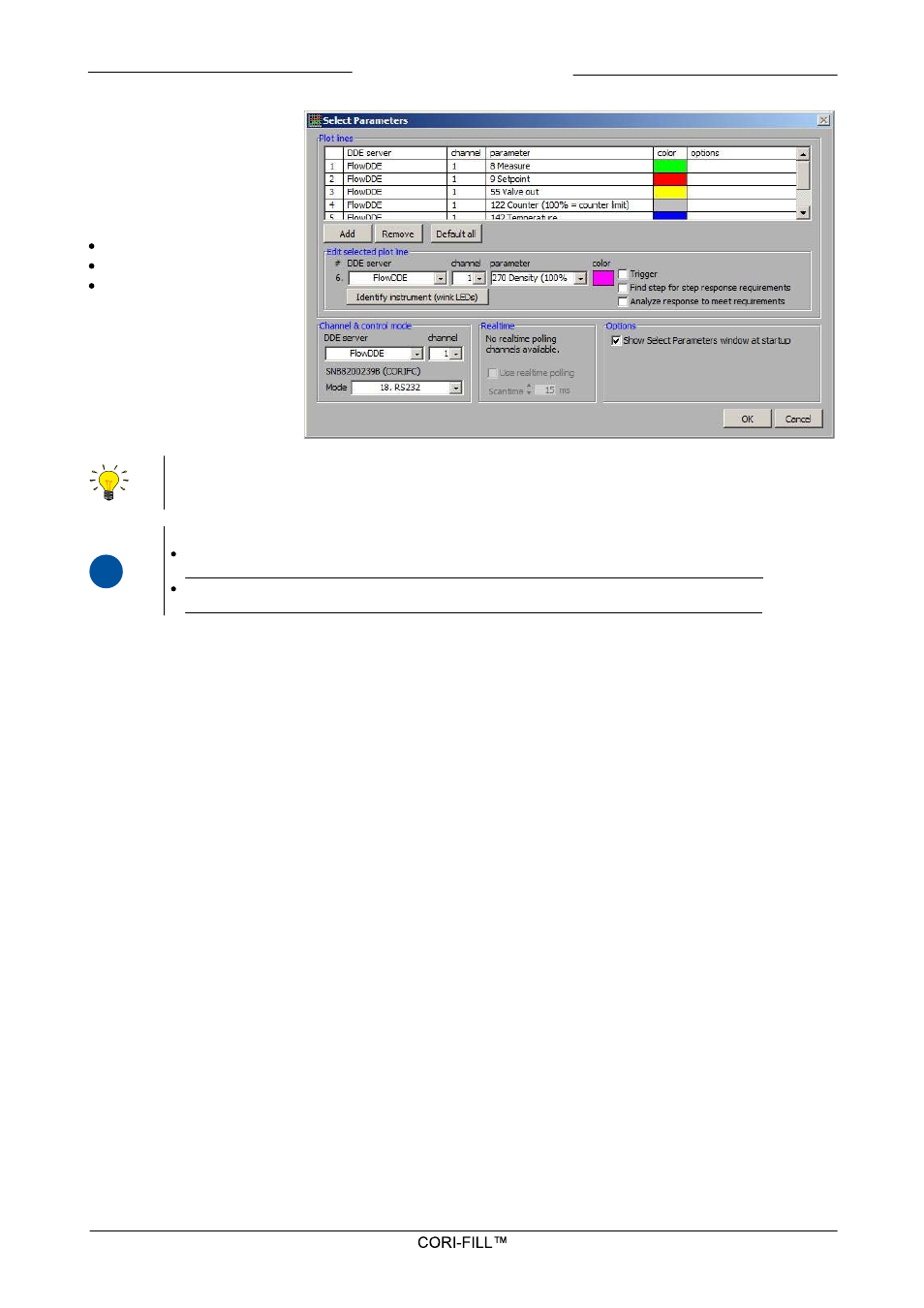

At the screen “Select
parameters” connect the
colored lines to:
FlowDDE/FlowDDE2
channel number (typically = 1)
parameter number
e.g. like in picture on the right.
It is possible to use up to 8 plotlines in different (pre-defined) colors to watch the dynamic behavior of these signals
in time. Mode 18. RS232 (or mode 0 : bus & RS232) should be selected to enable your PC to take over setpoint
control for the Coriolis instrument.
i
www
For more detailed information about FlowPlot and FlowDDE see:
FlowPlot manual
http://www.bronkhorst-cori-tech.com/files/downloads/manuals_english/917030manual_flowplot.pdf
FlowDDE manual
http://www.bronkhorst-cori-tech.com/files/downloads/manuals_english/917067manual_flowdde.pdf
Press OK to go to Main screen.
