- 22 -
EBA 435 E • EBA 435 EP
cm
inch
cm
inch
Cutting to specified dimensions
• EBA 435E: The cutting size can now be set
with the handle G .

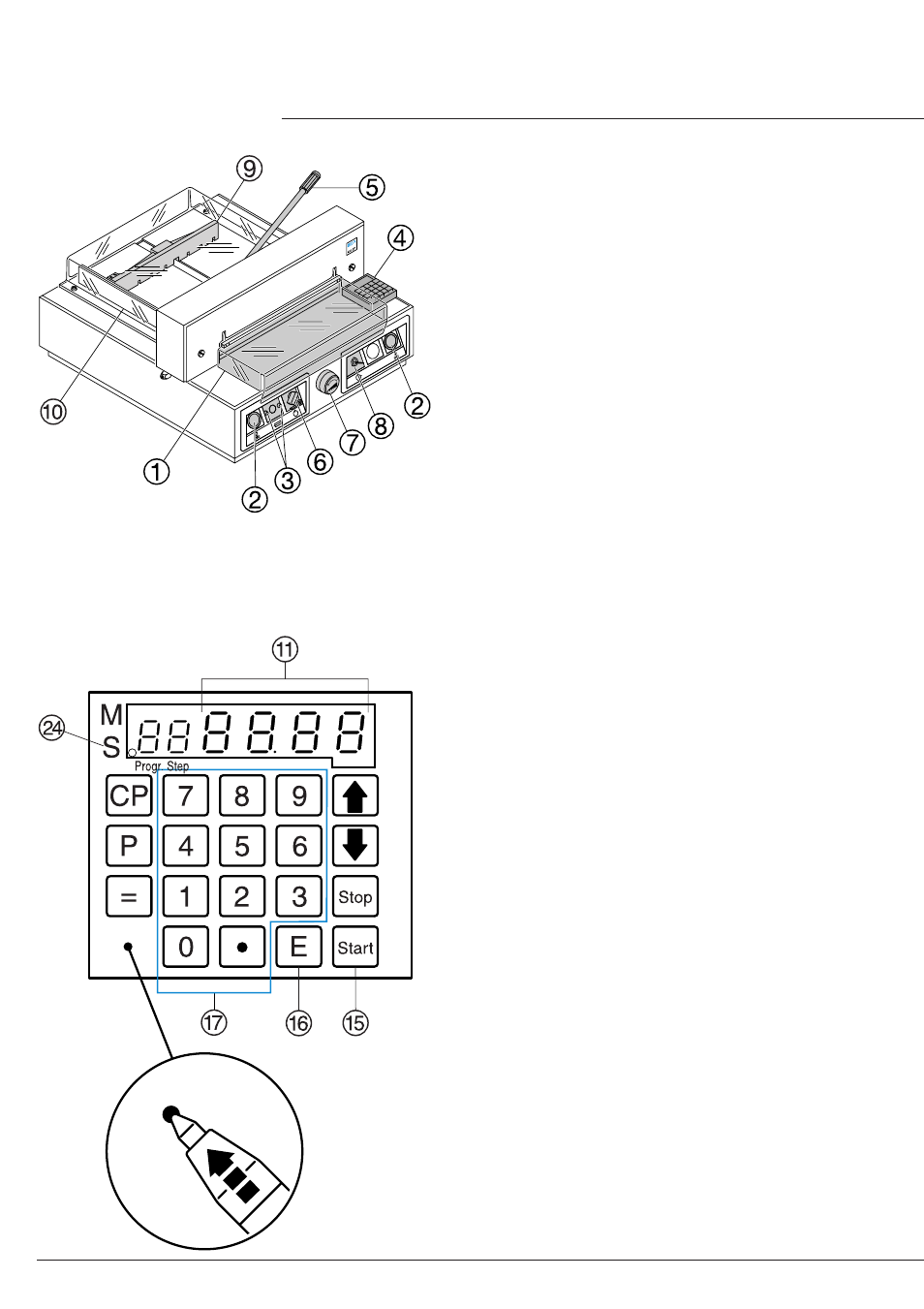

• EBA 435EP: Enter dimension on the
numerical key pad Q LED "S" X appears.
(If a wrong dimension is entered this can be
corrected by pressing the s button).
• Press S button dimension is approached,
LED "S" disappears.
Dimensions below 9 cm can only be
approached with the S button pressed and
held. (When the S button
O
is released, the
backgauge
I
moves to a measurement
of 9 cm measurement 9 cm blinks, now
press and hold the start button, backgauge
I moves to e.g. 7 cm.
• Insert paper and move by means of the
stacking angle to the backgauge I and side
lay on the left J .
• Move the pressing lever E to the left by a
slight swing.
• Close the front safety guard A.
• Release the cut.
Cut according to markings
• Adjust the backgauge with the hand-wheel or
crank handle G to the back.
• Insert paper and move by means of the
stacking angle to the backgauge I and side
lay on the left J .
• Turn the hand-wheel or crank handle G to the
right until the marking on the paper to be cut
is below the cutting line indicator. The further
the hand-wheel is turned to the right, the
faster the backgauge moves. If the hand-
wheel is turned to the left the backgauge will
return quicker.
• Move the pressing lever E to the left by a
slight swing.
• Close the safety guard A.
• Release the cut.
•
Operation
•
