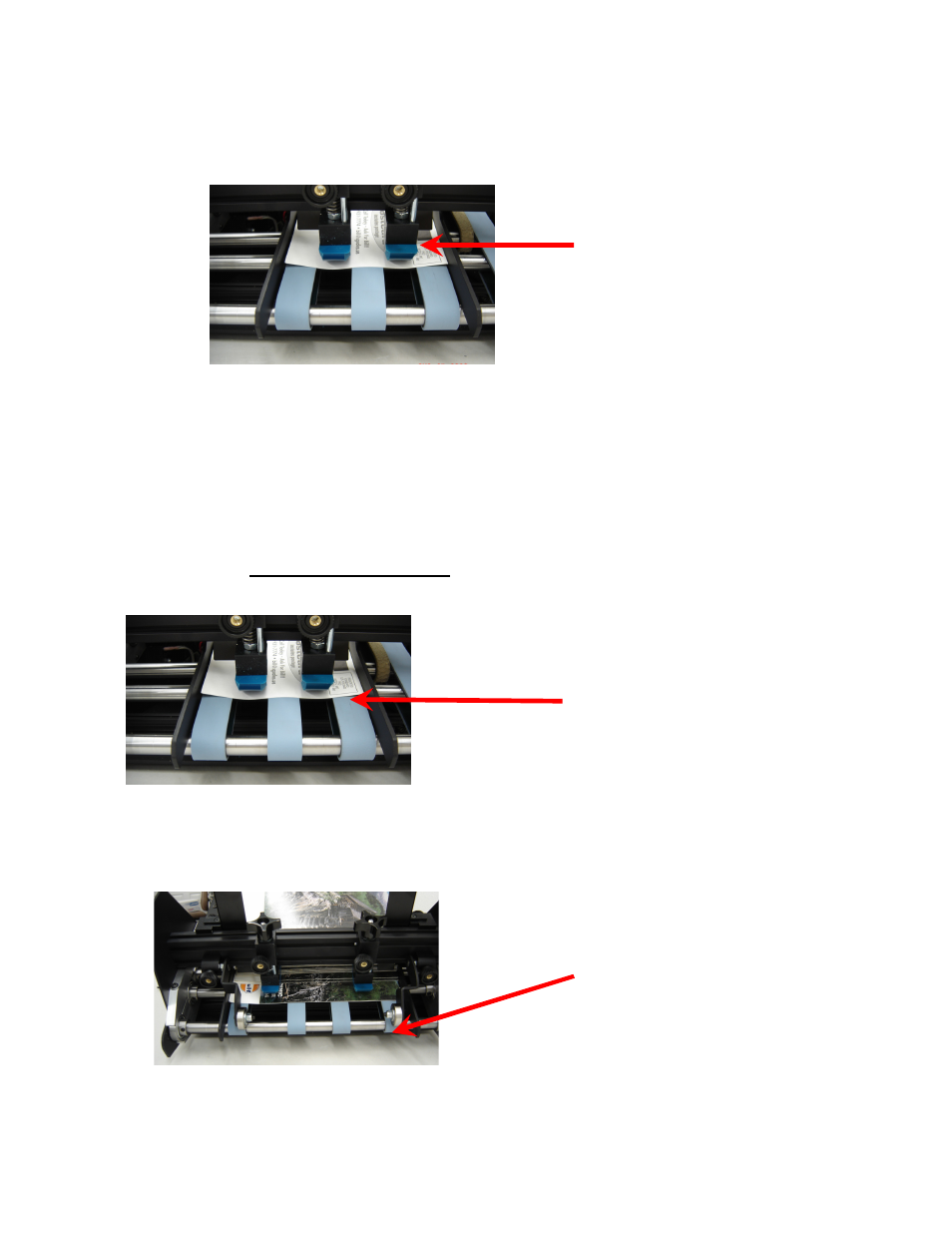

STEP 3. Place a single piece of your media under the separator and slowly lower each
separator by turning the top knob counter clockwise until the separator tip forces the
stock to "bow" downward slightly between feed belts.
TIPS AND TRICKS FOR USING THE SEPARATORS
The Bow Separators™ on the EasyFeed 120 offer tremendous versatility. Each separator can
be adjusted independently for thickness and lateral position. In addition, since the separators
can be easily removed and replaced, you can utilize as many of them as you need.
1. THIN MEDIA: When running thin stock, try to position the belts within ¼" of each side
of the separators.
2. THICK MEDIA: If your media is thick, like catalogs, a very slight bow under the
separators is all that is necessary for good separation
Bow stock
downward between belts.
(More bow for thinner
documents.)
THIN STOCK
Try to position belts close to
the separators so that the
stock bends down sharply
THICK STOCK
You can position the belts a
bit further away from the
separators and buckle the
stock only slightly.
