Research Concepts RC300 - Manual (Page 30)

RC300 Flyaway Companion 30

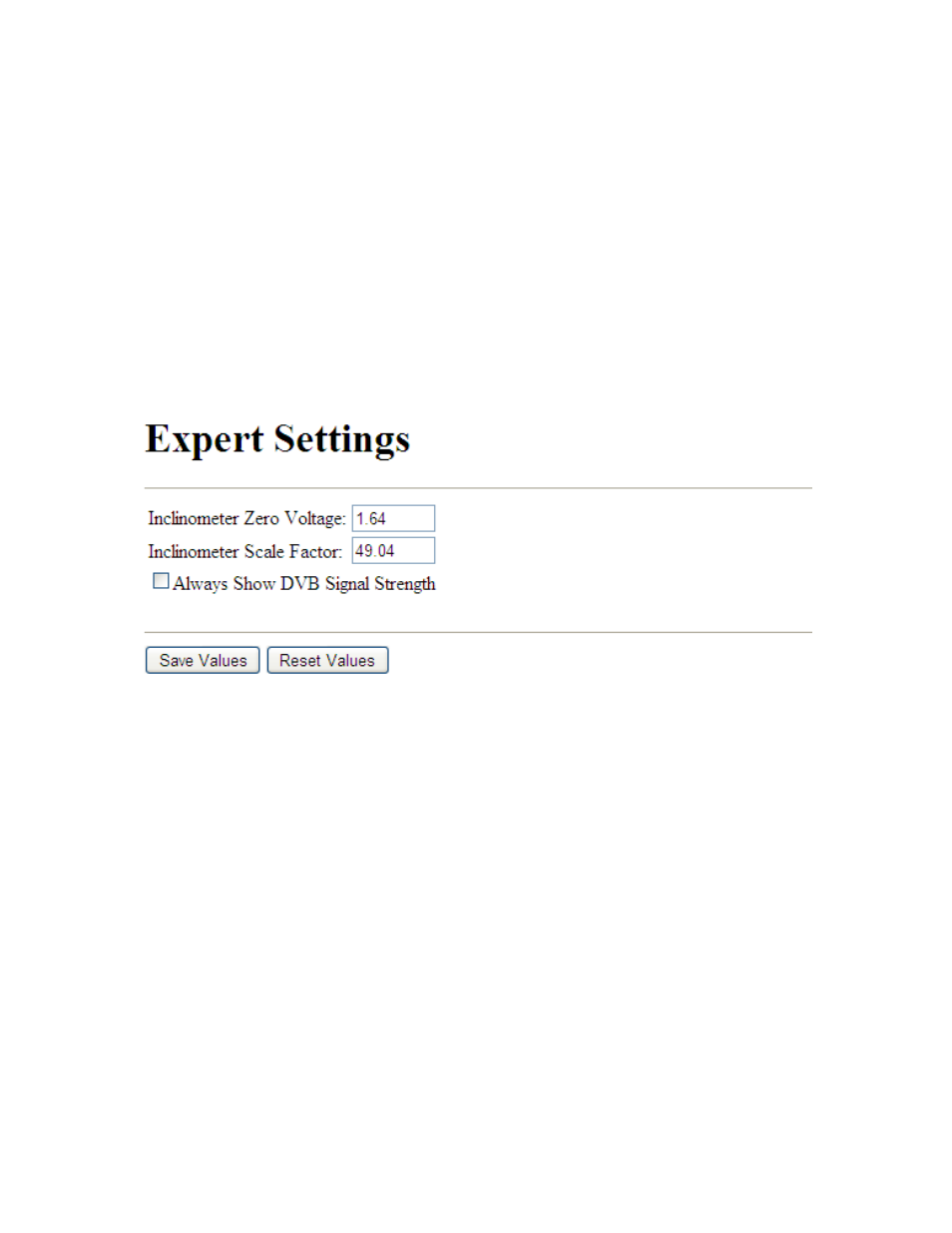

4.11 Changing the Expert Settings
Step 1) Open the configuration page by typing “192.168.252.1/config” into the address bar of your
web browser.
Step 2) If you would prefer to have the unit display the DVB Signal Strength at all times, check
the “Always Show DVB Signal Strength” box. When the box is left unchecked, DVB Signal
Strength will only be displayed when DVB Lock is achieved.
Inclinometer Zero Voltage and Inclinometer Scale Factor should be obtained automatically by
performing an inclinometer calibration as described in Section 4.9 of this manual. However, they
can be adjusted manually by changing the displayed values.
Step 3) S ave your changes by clicking the “Save Values” button. The interface may have to be
refreshed for changes to take effect.
