15
ClearinG BloCKaGes
4.22 Check Inspection door
a. Open the inspection door on the bottom of
cleaner.
b. Twist nozzle hose to unlock hose inside
inspection door.
c. Remove hose and clear any blockages.
d. Reattach hose inside nozzle and twist to lock
into place. Close inspection door.
e. Reattach nozzle hose on back of cleaner body.
WARNING
! !
To reduce the risk of personal injury, unplug before cleaning or servicing.

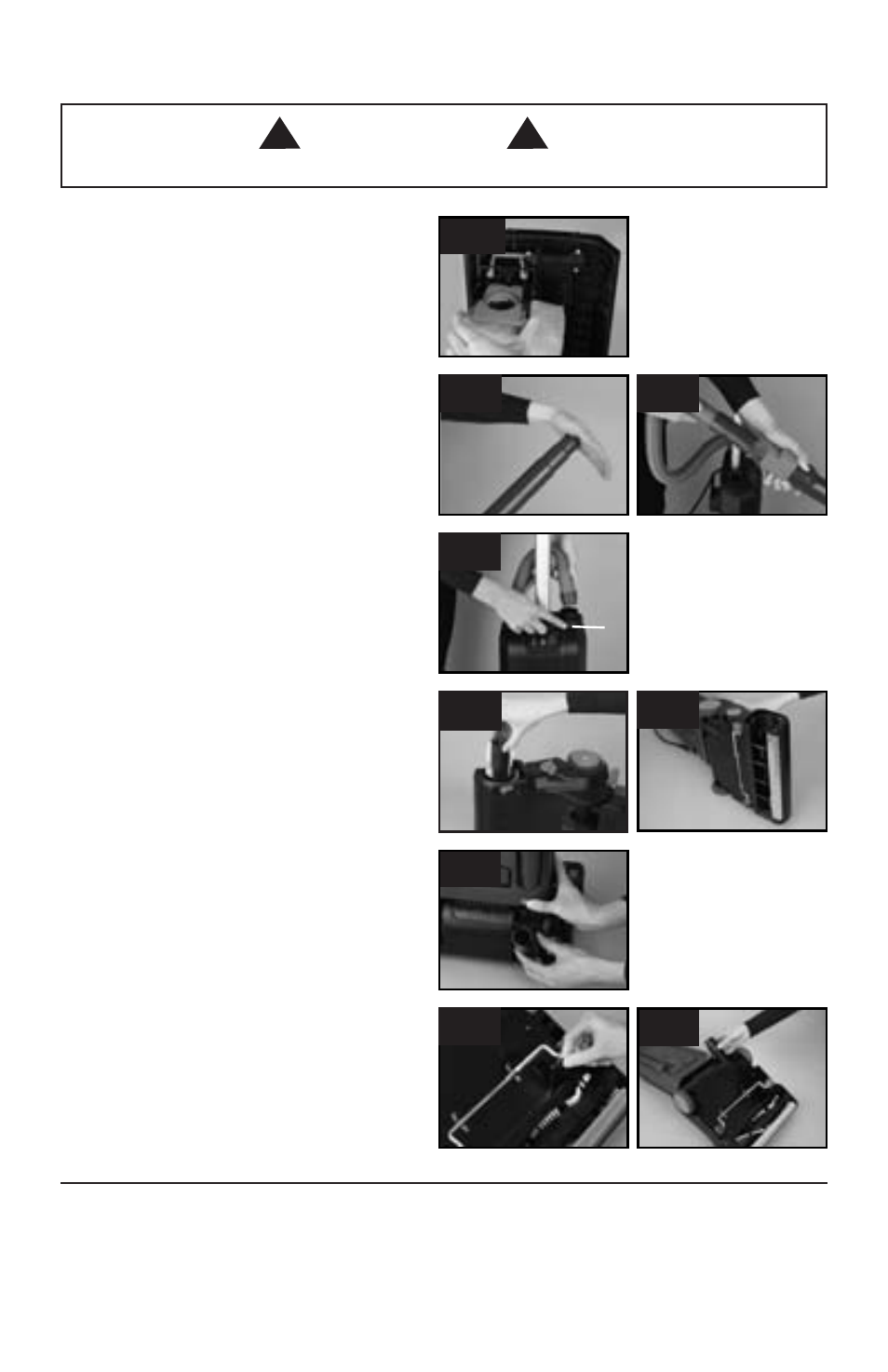

Low suction or pick up may be due to a blockage in
the system. Refer to the following steps to check
for blockages, continuing with each step until
the blockage is found:
4.18 Check fullness of filter bag
a. Change if needed.
4.19 Check airflow path
a. Plug cleaner in and turn ON. Check for
suction at end of hose (A).
b. If there is suction, continue to step 4.20.
c. If there is no suction, check for blockage
in hose and wand as follows:
i) Disconnect wand from hose by pressing
the wand release button (B) and pulling
wand from hose. Clear any blockages in
wand.
ii) Remove hose by pressing hose release
button on cleaner body (C) and pulling hose
out. Clear any blockages from hose or hose
duct.
iii) Reattach hose and wand by reversing steps
above.
4.20 Check under nozzle.
a. Turn cleaner OFF and unplug.
b. Release the handle all the way to the floor
by stepping on the handle release lever twice.
c. Turn cleaner on its side.
d. Remove brushroll by following steps on page13.
e. Inspect nozzle (D) and nozzle inlet (E) and
remove any blockages.
f. Replace brushroll by following steps on page 13.
4.21 Check nozzle hose located on back of cleaner
a. Slide the nozzle hose release button (F) to
disconnect the hose and clear any blockages.
b. Proceed to 4.22
luBriCation
The motor is equipped with bearings that contain sufficient lubrication for the life of the motor. The addition of lubricant
could cause damage. Therefore, do not add lubricant to motor bearings.
4.18
4.19
A
4.19
4.19
4.20 4.20
4.21
4.22 4.22
C
B
E
D
Note: Inspection door will not close unless hose is properly locked in position.
F
