In the diagrams you will see the position of the various components, others can
be added or removed to construct a variety of systems. At first you may experience
a little difficulty, but once used to the logic of the system, everything becomes
simple and intuitive.
Some tables will help you to combine the various elements on the basis of the
lenses used.

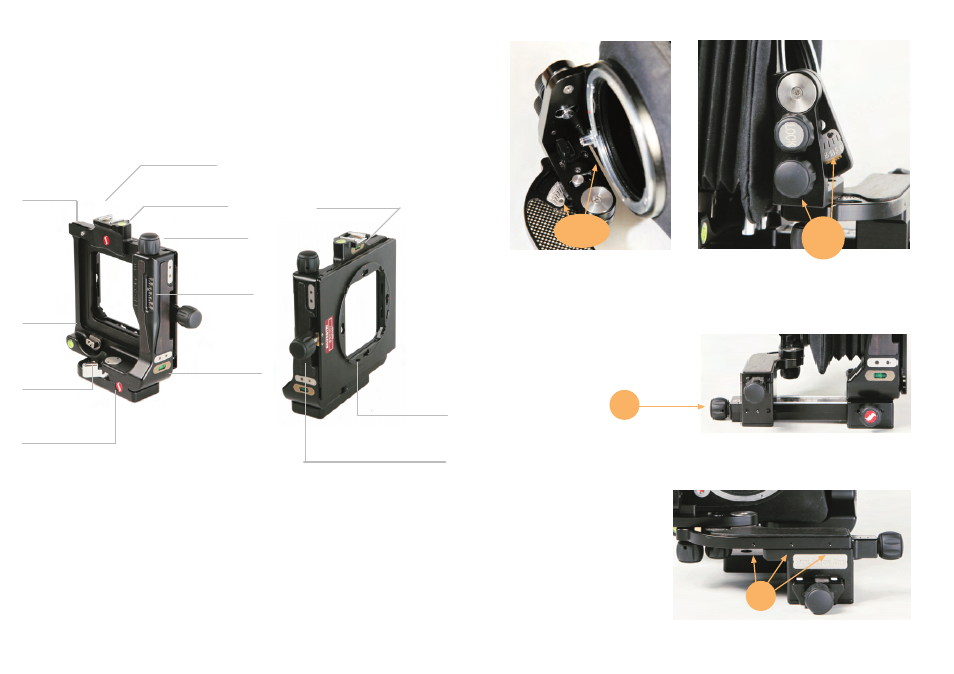

Legenda
1
2
3
4
5
6
Top rail for the quick mounting of accessories and the camera overturning.
Bottom rail for the fitting of the Flexi Bellow Maxi and other accessories.
Shoe to attach the viewfinder.
Precise screw control of rise and fall movement of the back element of the
camera' body: 15mm up, 15mm down.
Rotating knob to lock and unlock the lens board in position.
The back ring is a rapid 4-point mounting system with 8° rotation. Two red
reference spots indicate the entry position of the attachments.
viewfinder housing
rise & fall control
top spirit level
rise & fall scale
horizontal spirit level
bottom rail lock
top rail
lens board
lock
bottom rail
back ring
horizontal spirit level
1
2
3
4
5
7
6
horizontal shift control 8
Side shift on Flexi
bellow Maxi:
swing
tilt
Focusing system on Flexi Bellow Maxi:
