Silvestri Bicam III - Manual (Page 5)

For full features and instructions read the DRCU user manual.
Remote Control Unit for Prontor and Schneider electronic
Rotating Panoramic Base

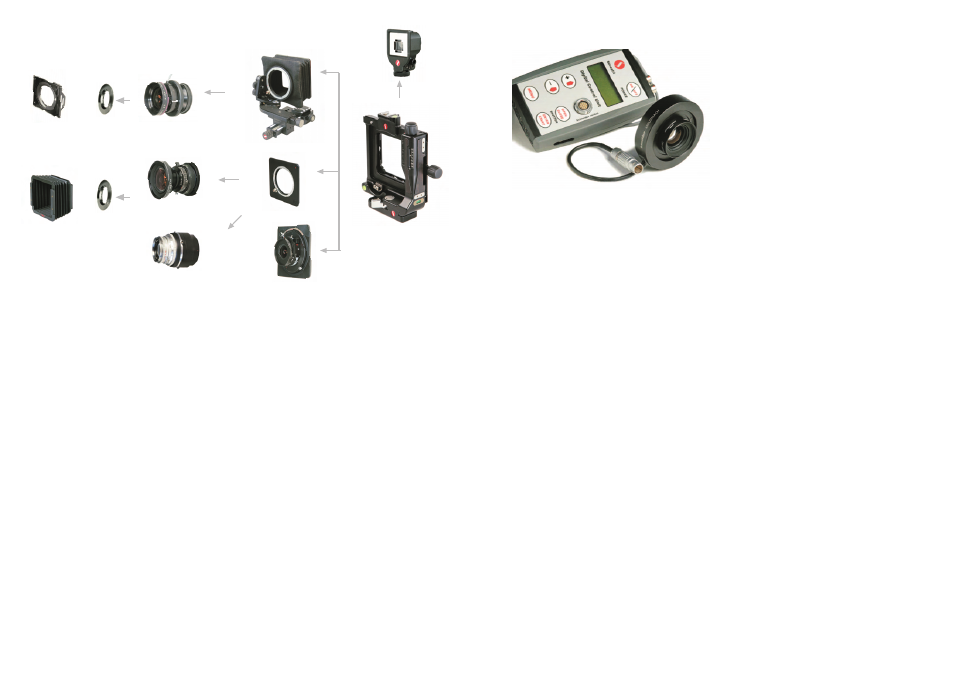

The Digital Remote Control Unit 7053K
interfaces digital backs, controls the
Prontor magnetic shutters, simulates
Hasselblad 555ELD. With the Silvestri
panoramic base code 7072, produces
panoramic shots from 0 to 360°. With
the motorized back code D7022 the
Control Unit widens the shooting format
with two consecutive shots for a 5x7 final format with the new 4x5 backs and
a 4x7 format with the 4x4 backs. The Digital Control Unit allows to take 4 and
16 microstep shots. Controls the Prontor Schneider: shutters a) single shot b)
multishot with selectable times with increasings of 1/10 diaphragm c) Control
full open d) Control of field depth with selectioned diaphragm e) during the
depth controlling it is possible to change the work diaphragm.
This accessory allows to make series of panoramic photographs in sequence. The
system consists in a Bicam Camera with interchangeable lenses in magnetic
shutter, a Remote Control Unit and a digital back. The programmable functions are:
* Number of shots
* Exposure time from 1/125” and 60”
* Total field angle selecting from 0° to 360°.
* Time break between shots.
The system is powered by a 12V battery.
Bicam Body only without back & lens board, with 15+15mm shift
Flexi Bellow Maxi
Lens Board R with Silvestri Bayonet for Bicam
Lens Board with bayonet Type F (17,55mm)
Lens Board with bayonet Type E (24,8mm)
see table 2 on page 9
see table 1 on page 4
Actuator for Hasselblad V lenses with Silvestri bayonet - long
Actuator for Hasselblad V lenses with Silvestri bayonet - short
Adapter Ring 40.5mm (for codes 3300 & 3305)
Adapter Ring 49mm (for codes 3300 & 3305)
Adapter Ring 52mm (for codes 3300 & 3305)
Adapter Ring 58mm (for codes 3300 & 3305)
Adapter Ring 67mm (for codes 3300 & 3305)
Adapter Ring 72mm (for codes 3300 & 3305)
Adapter Ring 77mm (for codes 3300 & 3305)
Adapter Ring 82mm (for codes 3300 & 3305)
Adapter Ring 86mm (for codes 3300 & 3305)
Adapter Ring 95mm (for codes 3300 & 3305)
Bellow Filter Holder Combination 100mm
Wide Angle Filter Holder 100x100mm
Shiftable Viewfinder with spirit level
3000
3002
1119
1123
1121
-
-
1150
1152
3306
3307
3308
3309
3310
3313
3315
3317
3318
3319
3305
3300
1080B
A
B
C
D
E
F
G
H
I
V
A
B
C
D
E
F
G
H
I
V
