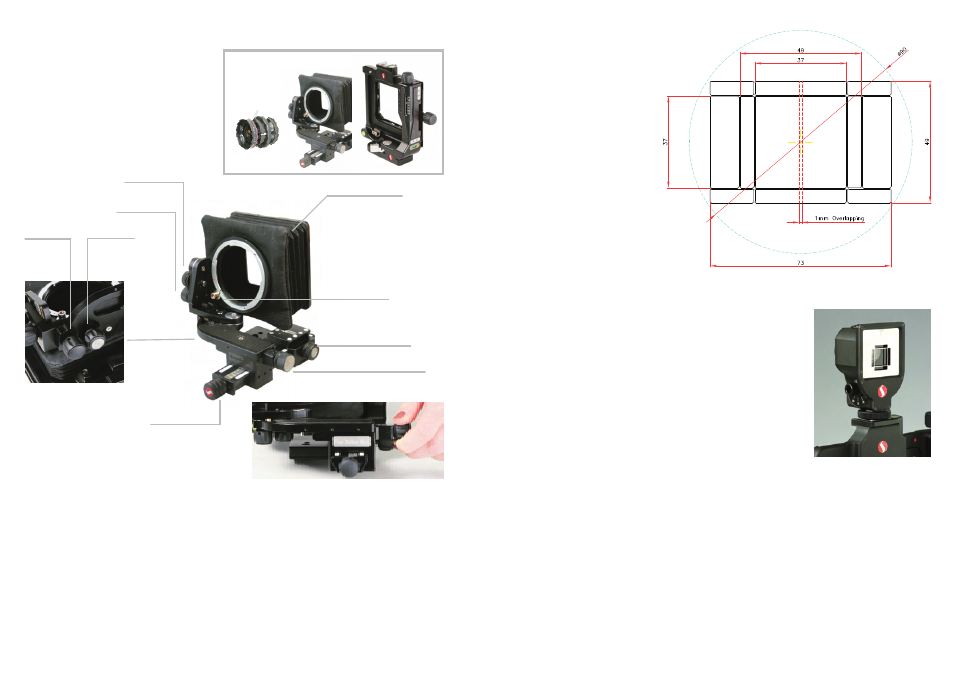

Legenda
A
B
C
D
E
F
G
Swing 15+15° Micrometric adjustment with locking system.
Cylindrical and bag combined bellow.
Bayonet lock button to remove lenses.
Tilt 15+15° Micrometric adjustment with locking system.
Extension: 75mm with click and micrometric adjustment.
Possibility to move back the camera standard in order to clear wide angle
lenses.
Side Shift 15+15mm.
combined bellow
swing control
bayonet lock
side shift control
focusing knob
tilt control
bottom rail lock
A
F
B
D
swing lock
tilt lock
C
E
G
Flexi bellow Maxi
In certain occasions this type of viewfinder simplifies
working and helps in making the compostion process
faster.
Slide the viewfinder bottom piece in the viewfinder
housing (3) and rotate the black locking disk.
A series of format frames are available for specific
lenses. The viewfinder has an adjustment option to
move the format frame to simulate the 15-0-15mm
shift movement.
How to attach, detach & operate the viewfinder
Stitching shooting options
table 3
Digital Frames for viewfinder code 1080B
2024K Viewfinder Frame Digitar 40x40/24mm (for viewfinder cod.1080B)
2028K Viewfinder Frame Digitar 40x40/28mm (for viewfinder cod.1080B)
2035K Viewfinder Frame Digital 40x40/35mm (for viewfinder cod.1080B)
2047K Viewfinder Frame Digitar 40x40/47mm (for viewfinder cod.1080B)
2060K Viewfinder Frame Digitar 40x40/60mm (for viewfinder cod.1080B)
2128K Viewfinder Frame Digitar 40x50/28mm (for viewfinder cod.1080B)
2135K Viewfinder Frame Digitar 40x50/35mm (for viewfinder cod.1080B)
2145K Viewfinder Frame Digitar 40x50/45mm (for viewfinder cod.1080B)
2155K Viewfinder Frame Digitar 40x50/55mm (for viewfinder cod.1080B)
