13
Service

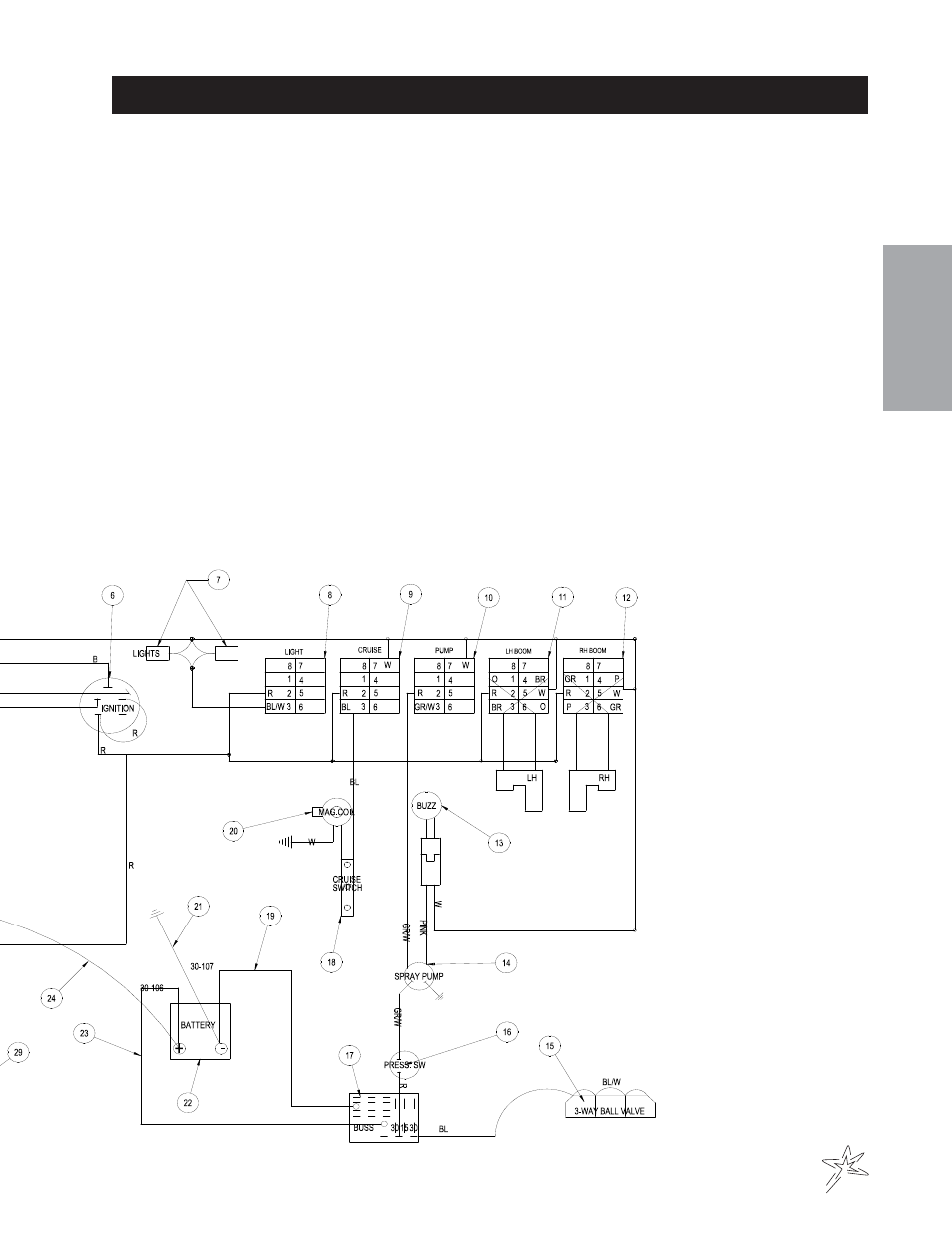

WIRING DIAGRAM
REF#
PART#
DESCRIPTION
QUANTITY
13
77-207
Buzzer
1
14
16-998
Hypro Pump
1
15
18-372
3-Way ball Valve
1
16
33-480
Pressure Switch
1
17
33-271
Buss Bar
1
33-272
Fuse, 15 AMP
1
33-273
Fuse, 30 AMP
2
18
33-509
Cruise Foot Switch
1
19
30-107
Wire Harness Battery ground to Fuse
1
20
33-084
Magnetic Coil
1
21
48-147
Ground Battery Cable
1
22
33-216
Battery
1
23
30-106
Wire Harness Battery to Fuse
1
24
76-326
Battery Cable
1
25
30-104
Manual Hand Brake
1
26
16-883
Speed Sensor
1
27
12-003
Park Brake Toggle Switch
1
30-143
Toggle Switch Guard
1
28
31-071
Speedometer Wire
1
29
30-130
Fuel Pump
1
NA
30-148
Main Wire Harness
1
NA
30-149
Engine Wire Harness
1
