84
Accessories

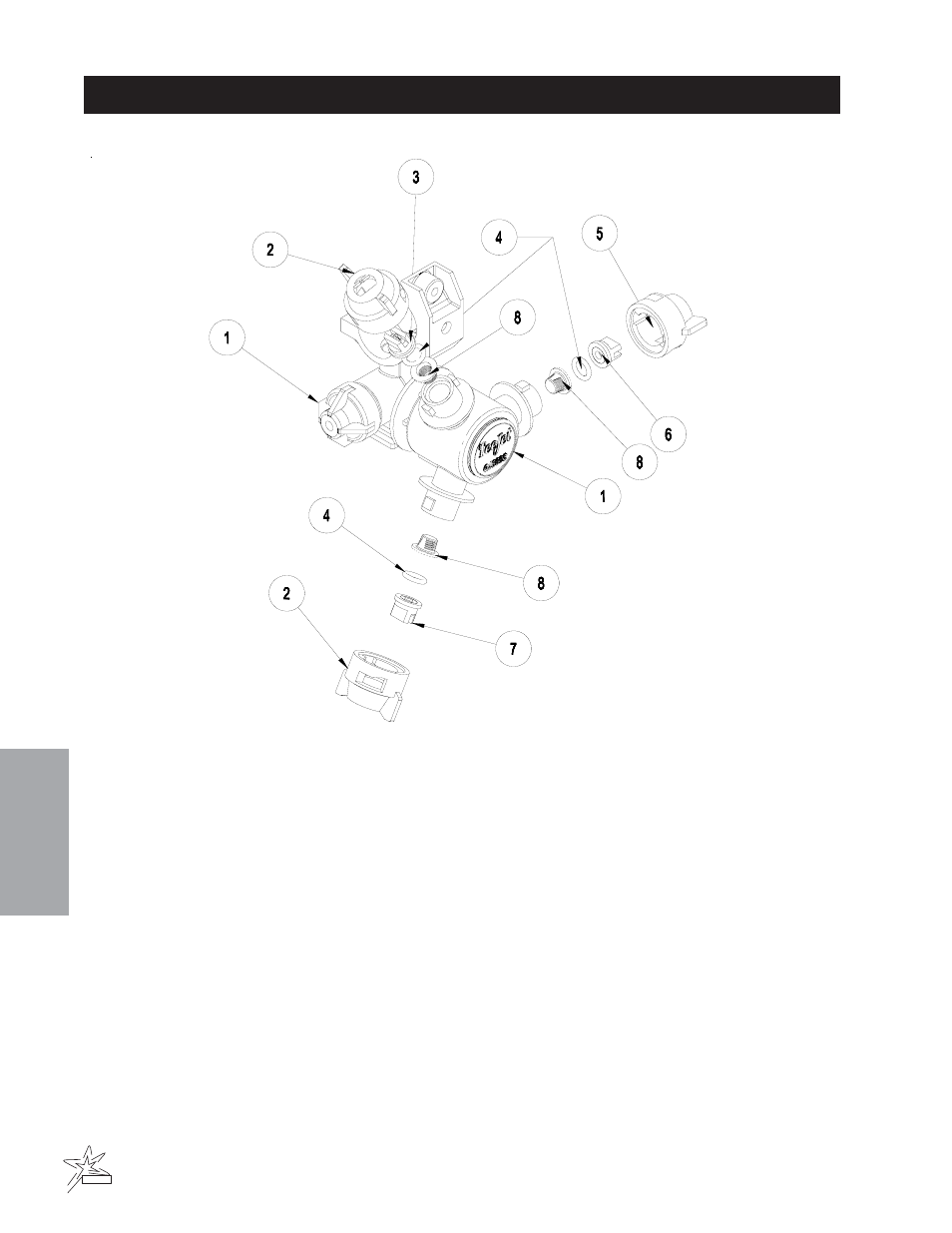

TRIPLE NOZZLE ASSEMBLY
REF# PART# DESCRIPTION QUANTITY
1 33-506 Body 1
2 33-538 Cap - Gray 2
3 33-553 Nozzle -Gray (XR11006-VS) 1
4 16-800 Viton Gasket 3
5 33-537 Cap - Red 1
6 33-552 Nozzle - Red (XR11004-VS) 1
7 33-554 Nozzle - White (XR11008-VS) 1
8 16-802 Strainer 3
Quantity is per nozzle body. For 20' booms multiply quantity by 12.
Quantity is per nozzle body. For 18' booms multiply quantity by 11.
Nozzles are located 20" (51 cm) apart on the right, left, and center tubes. Nozzles are 20" high off ground.
For reordering Nozzle Kits the following numbers apply
33-540 Triple Nozzle Kit for 18' Booms
33-542 Triple Nozzle Kit for 20' Booms
