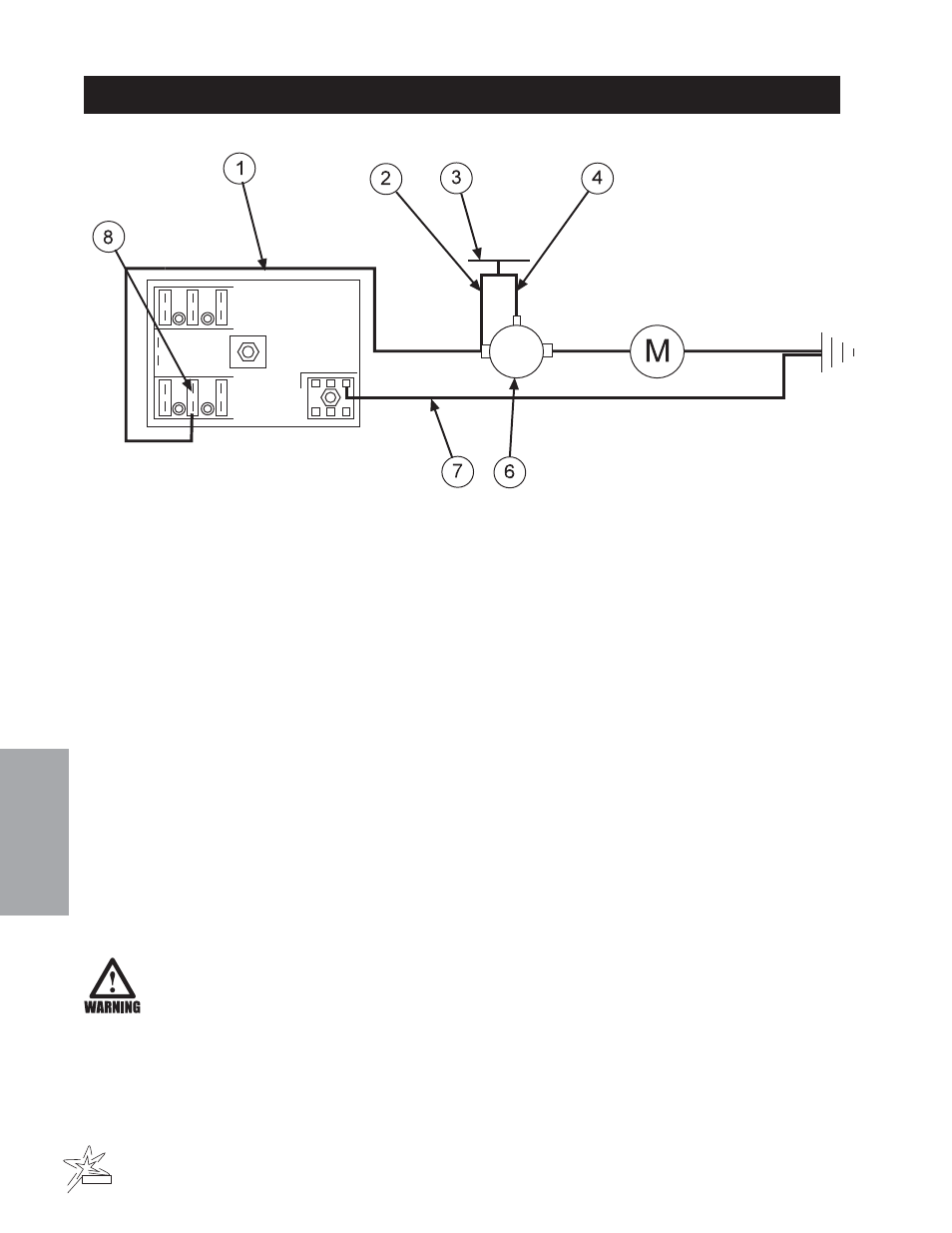

ELECTRIC HOSE REEL WIRING DIAGRAM

REF#

PART#

DESCRIPTION

QUANTITY

8843-132

Flexguard

3

/

8

ID

1

1

8919-144

10GA Red Wire 144"

1

8901

Slide-On Connector

1

2

16-979

Wire, Switch to Solenoid Hot Terminal

1

3

33-251

Push Button Switch

1

4

16-978

Wire, Switch to Solenoid Start Terminal

1

6

13-750

Solenoid

1

SOLENOID TERMINALS
HN -516-24

5

/

16

- 24 Hex Nut

2

HN -10-32

10 - 32 Hex Nut

1

7

8931-144

10GA White Wire 144"

1

8901

Slide-On Connector

1

8

33-273

Auto Blade Type Fuse 30Amp

1

CONNECTION INSTRUCTIONS

Route wire harness along side of tank and over to fuse block taking care to stay clear of moving parts or hot
engine components. Cut off excess wire and strip back

3

/

8

". Place one 8963 heat shrink (

1

/

4

x 1

1

/

4

) on each wire

before crimping 8901 slide on connectors to the red and white wires. Connect the two wires to the fuse block
first the red to the (+) positive and the white to the (-) negative. Put the 33-273 auto blade type fuse (30 amp)
into fuse block.

Make certain you are connecting positive (+) to positive; negative (-) to negative while attach-
ing power leads. If you do not observe polarity, damage will result to electrical components.

Use Dielectric Grease On All Electrical Connections
