Teo IP Phone 7810 User Guide
4
C
C
o
o
n
n
t
t
r
r
o
o
l
l
s
s
a
a
n
n
d
d
I
I
n
n
d
d
i
i
c
c
a
a
t
t
o
o
r
r
s
s
1)

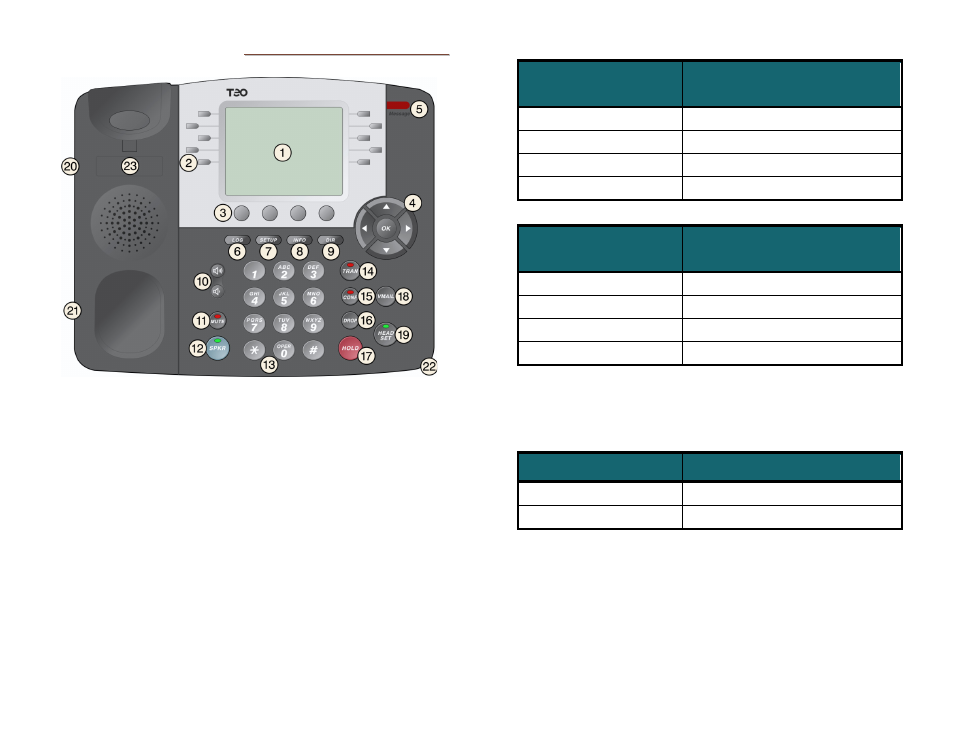

Display – shows the line ID, call state, caller ID, dialed digits,
network call control messages, elapsed time during calls,
the date and time of day, and softkey options.
The viewing angle is primarily set by selecting the high or
low base mounting position (page 21). Display contrast can
be adjusted by a menu selection (page 34).
2)
Multifunction Keys – used for Line Appearance, Direct
Station Selection/Busy Lamp Field (DSS/BLF), Feature, or
Speed Dial keys. The optional 8030X Button Expansion
Module provides 30 additional multifunction keys.
Red and green indicators on the keys show line appearance,
DSS/BLF and feature status.
Red/Green DSS/BLF presence status is only available if your
phone is connected to a Teo UC System (page 13).
Line Appearance Key
Indicator
Line State
OFF
Idle (On-Hook)
Steady Green
In Use (Off-Hook)
Winking Green
On Hold
Flashing Green
Ringing
DSS/BLF Key
Indicator
Monitored Station State
OFF
Available (On-Hook)
Steady
Red
/
Green
Other Presence State* (On-Hook)
Steady Red
On The Phone (Off Hook)
Flashing Green
Ringing
* Note: If your phone is connected to a Teo UC System, steady
red/green is used to indicate Busy, Away, Not Available, Do
Not Disturb, On Holiday, On Vacation, After Hours, or Call
Forward presence states (page 13).
Feature Key Indicator
Feature State
OFF
Deactivated
Steady Red
Activated
3)
Softkeys – select the function displayed above the key on
the bottom line of the display.
4)
Navigation (Arrow) Keys – navigate within menus. In editing
modes, the
key moves the cursor one position to the right
and the
key moves the cursor one position to the left. The
and
keys are used to shift between pages on multi-
page screens. The
OK
key exits the current menu, saves any
changes made, and returns to the previous menu options.
