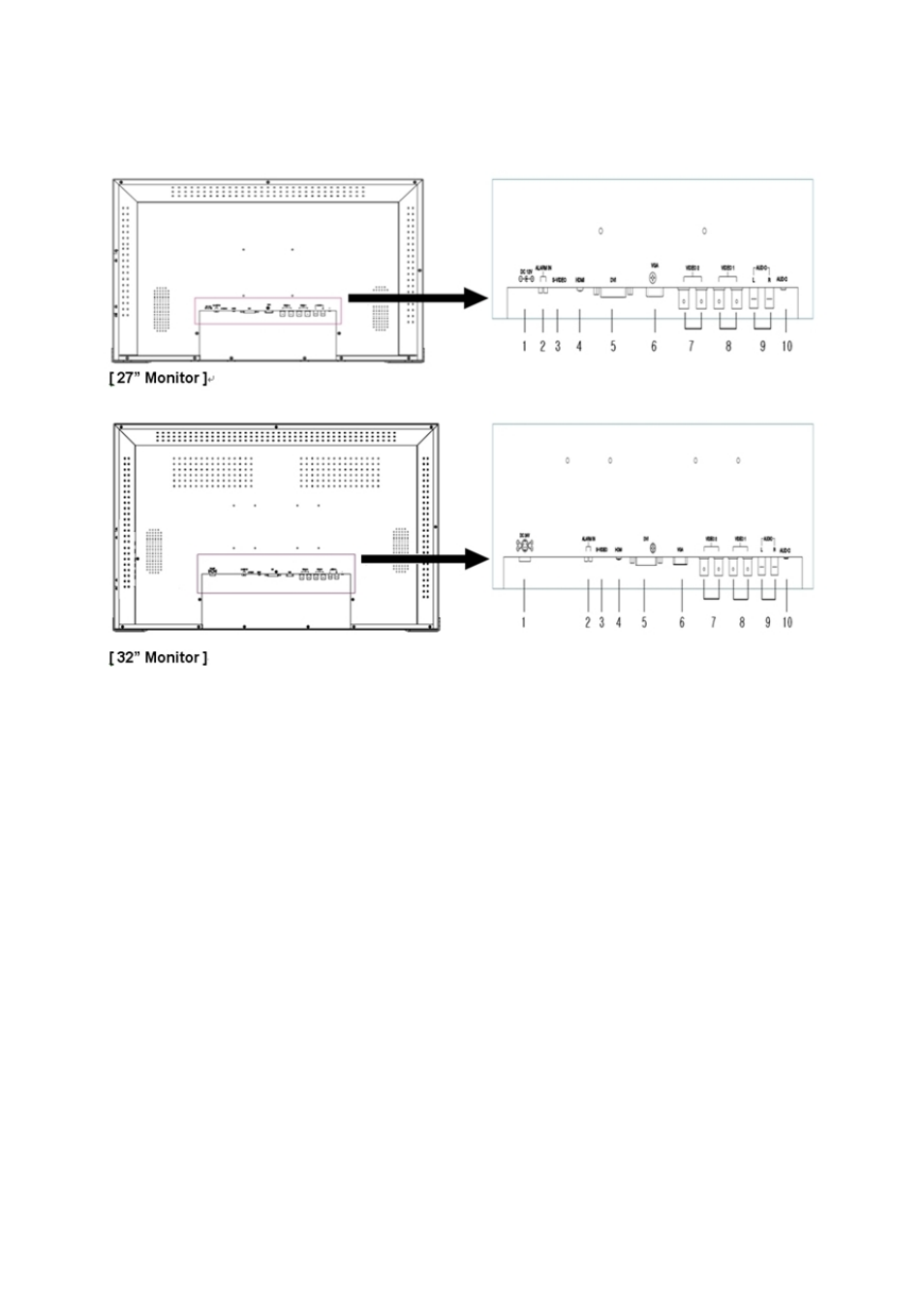

REAR connection
1. DC JACK
Connect the adapter jack to the DC power connector on the back of the monitor.
(27” monitor : DC12V, 32” monitor : DC24V)
2. Alarm INPUT
This is input for the alarm level (Max 5Vdc) of sensor.
3. S-Video INPUT
Used to connect a S-Video signal from a Camera or DVR.
4. HDMI INPUT
Used to connect a HDMI signal from a PC, Mega pixel Camera or DVR.
5. DVI INPUT
Connect DVI video signal to this connector using the supplied video cable.
6. RGB INPUT
Connect to the video output port on your PC or DVR.
7. CVBS INPUT/OUTPUT (CVBS2)
Used to connect a BNC Video signal from a camera or DVR.
8. CVBS INPUT/OUTPUT (CVBS1)
Used to connect a BNC Video signal from a camera or DVR.
9. AUDIO1 INPUT
Connect RCA audio cable to the audio output jacks of CVBS1, CVBS2, S-Video.
10. AUDIO2 INPUT
Used to connect a Stereo signal from a RGB, DVR, DVI.
