20
8937/8937D Instruction Manual
Configuration
Standard Selections Web Page
The Standard Selections web page allows you to set loss of signal reporting
and opeerating mode for the 8937 and 8937D modules. Refer to the specific
8937 or 8937D heading below.
8937 Module
Refer to
for the Standard Selections web page for the 8937.
•
Set the Report Loss of Signal input presence reporting to
Yes
or
No
. Dis-
abling this control will gray out the Input signal on the Status web page
graphic shown in
.
•
The Input Signal field will report the status of the input signal.
•
Set the Mode control to
Auto
(input bit rate standard detected by
module),
Manual
(input bit rate standard selected manually), or
Bypass
(input bypasses reclocking circuitry).
•
When Auto or Bypass mode is selected, the currently detected bit rate
detected by the module will be displayed in the Current Bit Rate field.
Click the
Apply
button to enter any values.

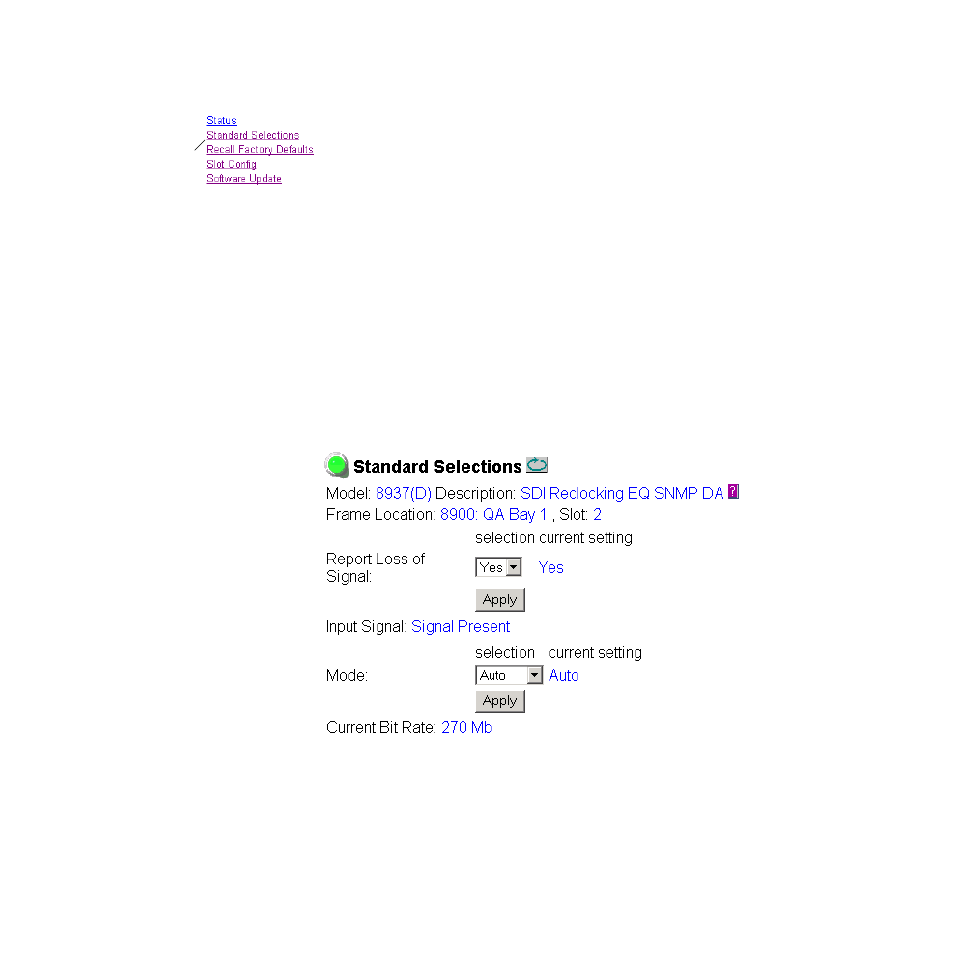

Figure 11. 8937 Standards Selections Web Page
