Removing and replacing frus – Grass Valley K2 Summit 3G v.9.0 User Manual

Page 102

Advertising
background image

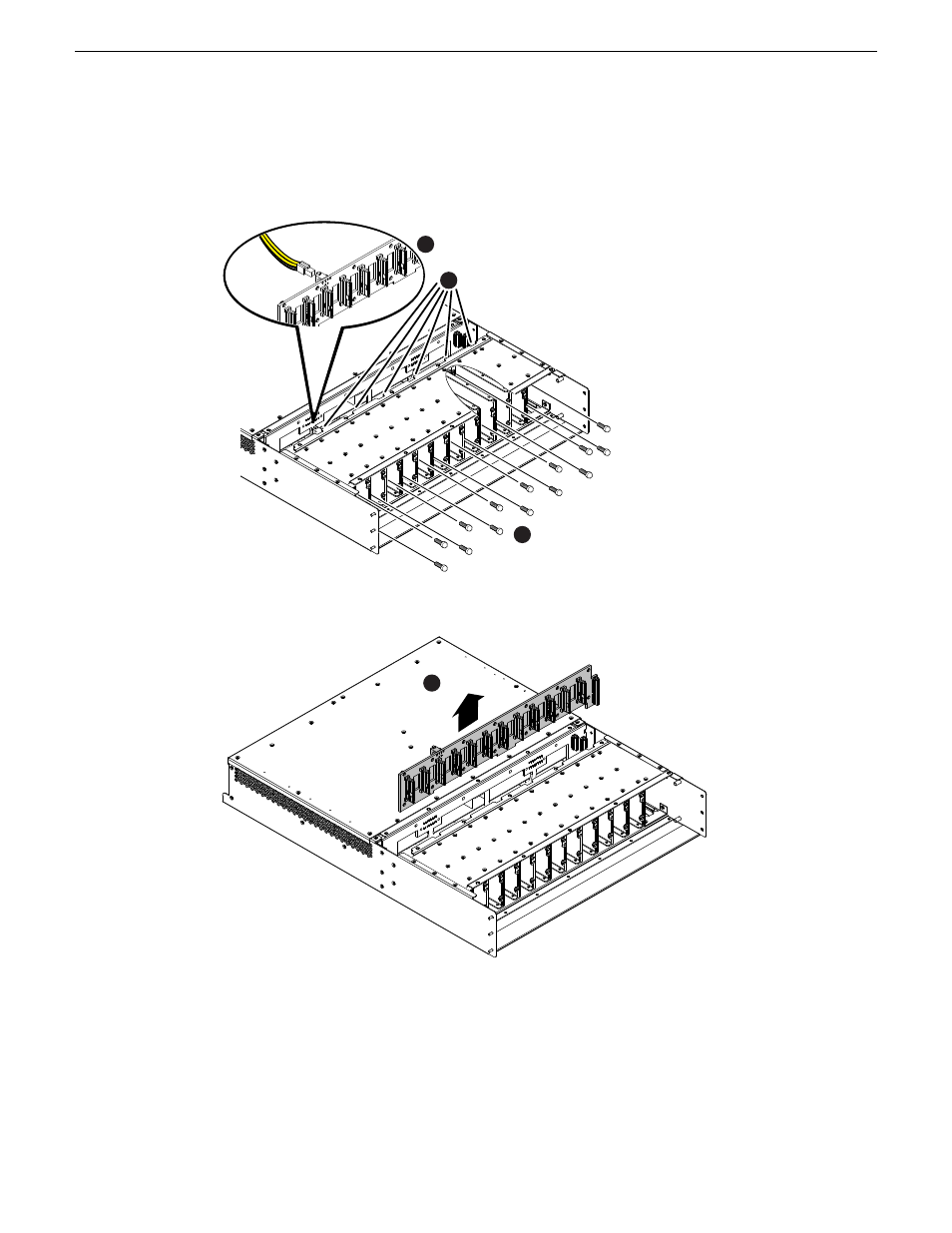

To remove the disk backplane unit, proceed as illustrated.

Remove 14
front screws

3

Disconnect cable

1

Locate notches to
identify screw positions

2

Lift out

4

102

K2 Summit 3G Service Manual

14 November 2012

Removing and replacing FRUs
