Status displays 2.4
2
TNC 640 | User's Manual
HEIDENHAIN Conversational Programming | 1/2015
83

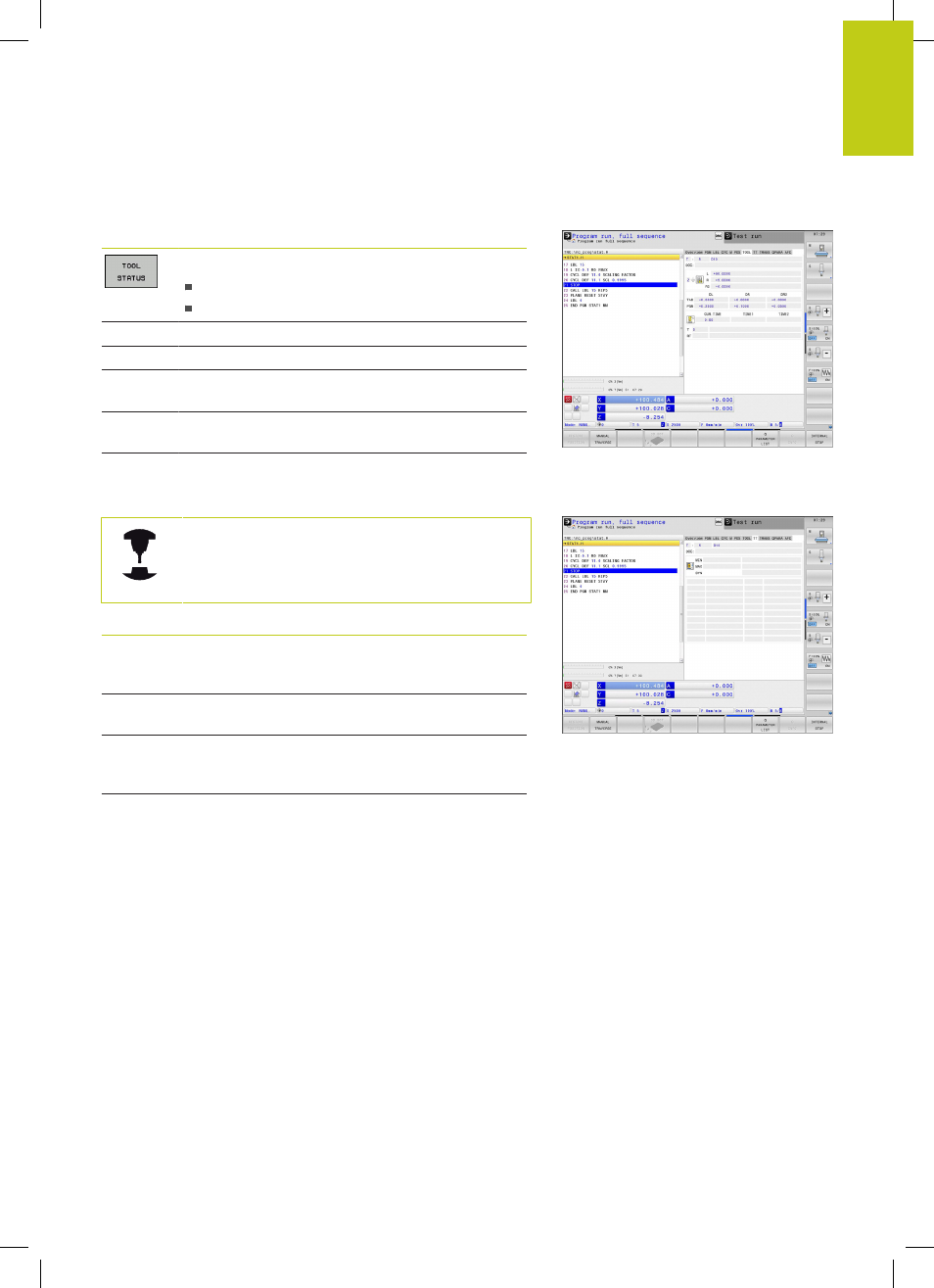

Information on tools (TOOL tab)
Soft key Meaning
Display of active tool:
T: Tool number and tool name
RT: Number and name of a replacement tool
Tool axis
Tool length and tool radii
Oversizes (delta values) from the tool table (TAB)
and the
TOOL CALL (PGM)
Tool life, maximum tool life (TIME 1) and maximum
tool life for
TOOL CALL (TIME 2)
Display of programmed tool and replacement tool
Tool measurement (TT tab)
The TNC displays the TT tab only if the function is
active on your machine.
Soft key Meaning
No direct
selection
possible Number of the tool to be measured
Display whether the tool radius or the tool
length is being measured
MIN and MAX values of the individual cutting
edges and the result of measuring the rotating
tool (DYN = dynamic measurement)
Cutting edge number with the corresponding
measured value. If the measured value is
followed by an asterisk, the tolerance in the
tool table was exceeded
