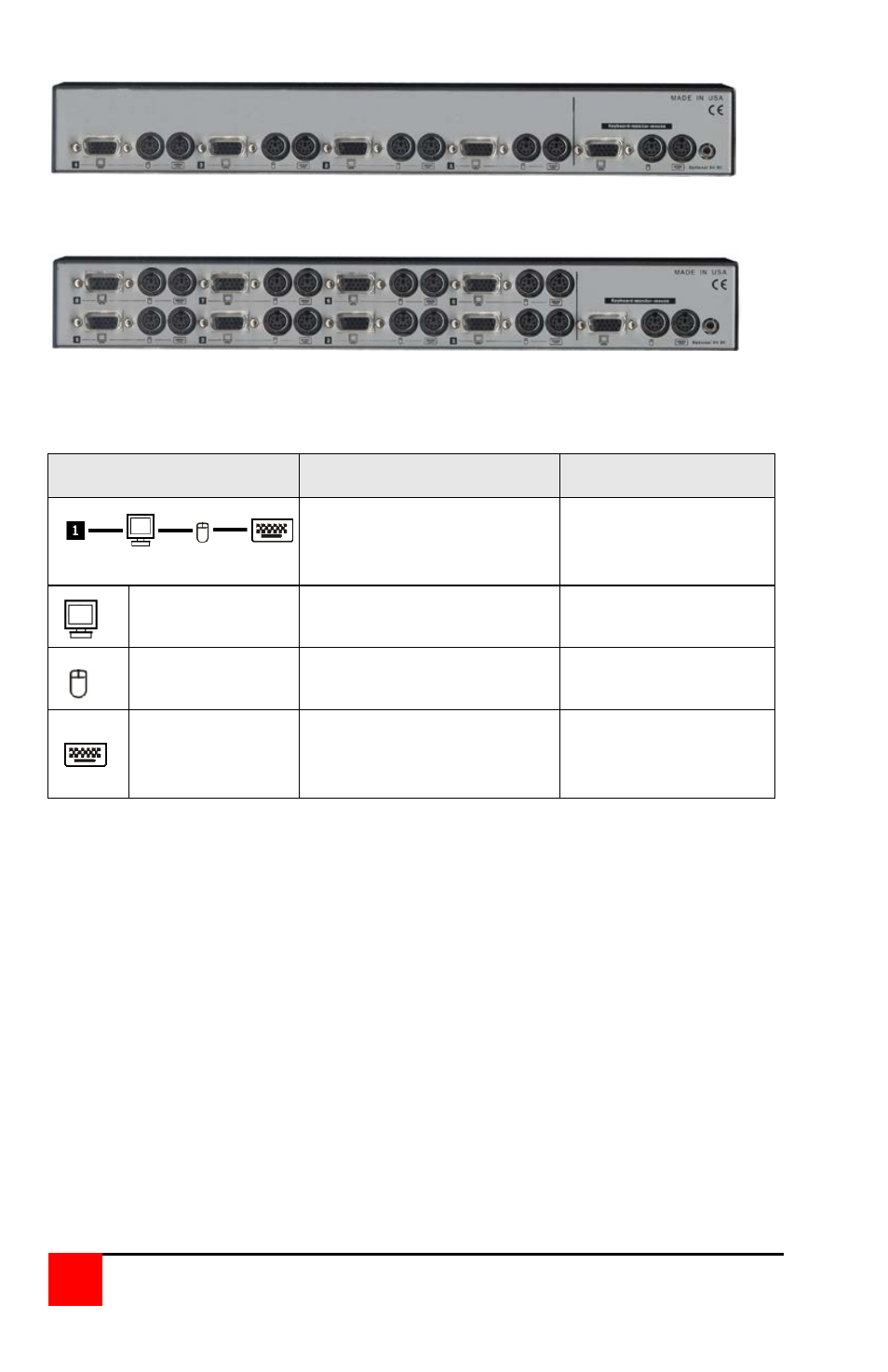

8 Vista L-Series Installation and Operations Manual
KVL-4PCA rear connectors
KVL-8PCA rear connectors
Label Connector Type Description
Keyboard (MiniDin-6F)
Mouse (MiniDin-6F)
Video (HD15F)
CPU connectors
1-4 on 4PC model
1-8 on 8PC model
Monitor HD15F
KVM monitor
connector
Mouse MiniDin-6F
KVM PS/2 mouse
connector
Keyboard MiniDin-6F
KVM keyboard
connector
Table 4. Vista 4PCA/8PCA description
