14
Part Names and Functions

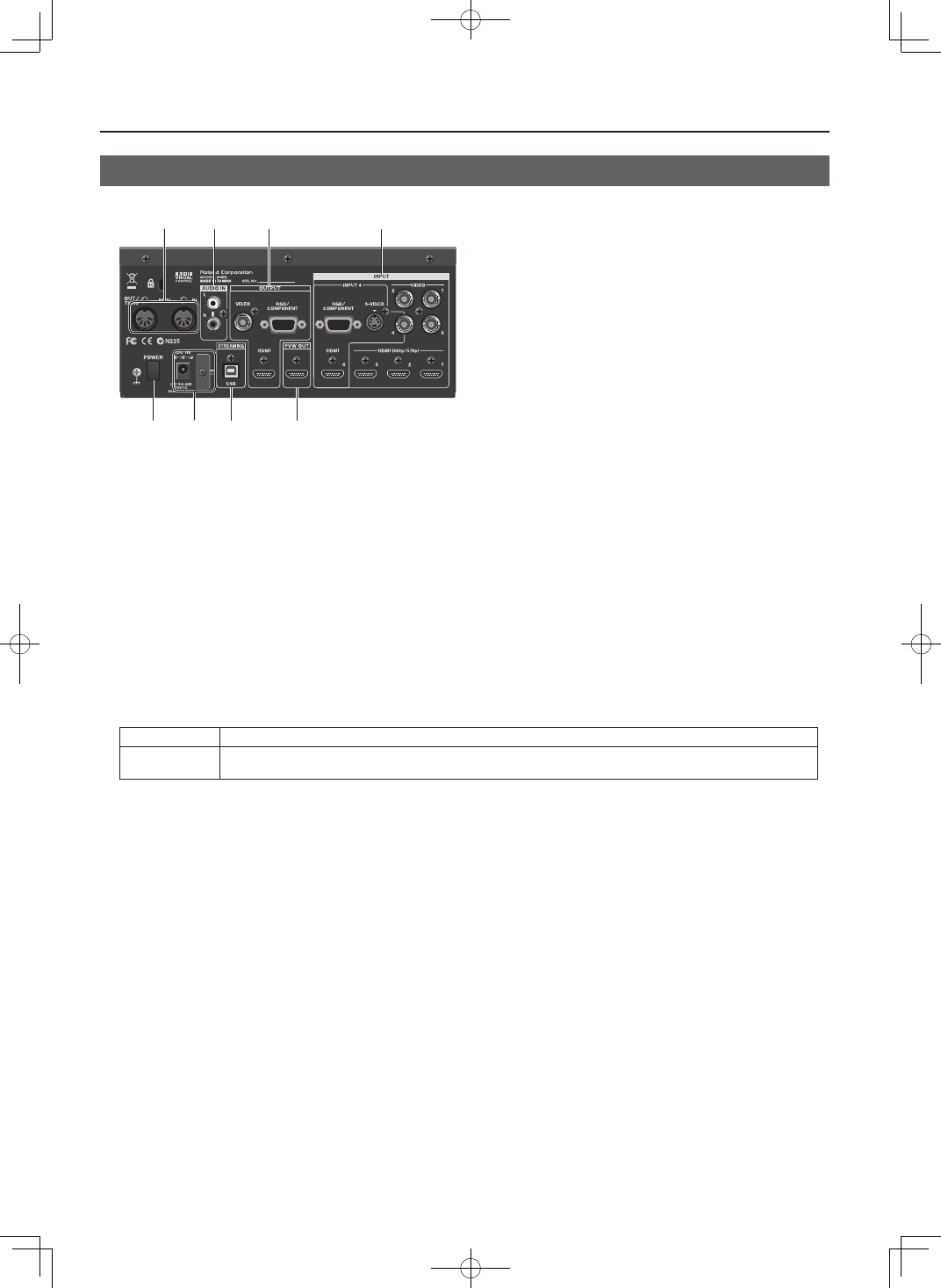

Rear Panel
fig.rear-panel.eps
1 2 3 4
5 6 7 8
1 MIDI IN and OUT/THRU Connectors
Use these when remotely controlling the unit from an external MIDI device (a device compatible with MIDI VISUAL CONTROL or the
like), or when using the unit to perform remote control of another device.
2 AUDIO IN Connectors
Use these AUDIO INPUT connectors to connect source equipment for analog audio.
3 OUTPUT Connectors
These connectors output the results of mixing on the V-4EX. Connect a projector or recording equipment. On the V-4EX, you can
output video and audio together (embedded audio) from the HDMI connector and the USB port.
* You can also use the composite connector (VIDEO) to output four-way split video.
4 INPUT Connectors
Connect video source equipment. Sections 1 through 4 are each provided with the connectors below. Use the menus to select the
enabled input connector.
INPUT 1 -- 3 Connect composite (VIDEO) or HDMI sources. By default, HDMI input is enabled for each channel.
INPUT 4
In addition to composite or HDMI, you can also connect sources with S-Video or analog RGB (15-pin mini D-Sub type) outputs.
By default, HDMI input is enabled.
5 POWER Button
This turns the power to the V-4EX on and off.
6 DC IN Connector and Cord Hook
These are for connecting the included AC adapter.
7 USB Port
When streaming output from the V-4EX or remotely controlling the V-4EX from a computer, use USB cable to make the connection
to the computer (p. 20).
8 PVW OUT Connector
Connect a monitor for preview output. You can select an output mode from below.
• Four-way split video. Same as [INPUT] mode for the built-in monitor.
• Final video output. Same as [OUTPUT] for the built-in monitor.
* Output format of the PVW OUT connector is 480/59.94i (when set to NTSC) or 576/50i (when set to PAL).
