3-3. Volt-Ampere Curves
va_curve1 4/95 − SA-178 652 / SA-178 653

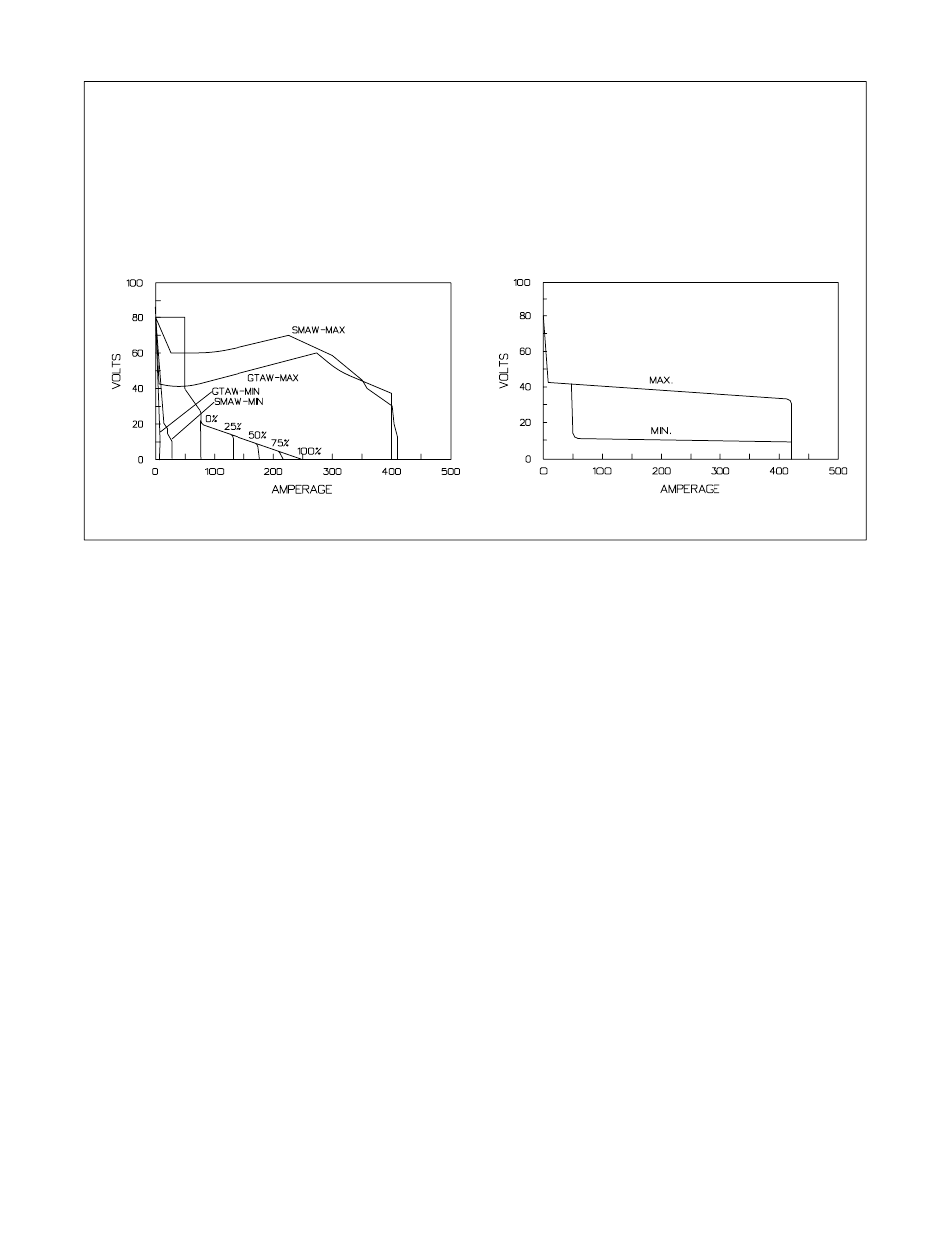

Volt-ampere curves show minimum
and maximum voltage and amper-
age output capabilities of unit.
Curves of other settings fall be-
tween curves shown.
A. CC Mode
B. CV Mode
ARC CONTROL
