Prestige 334 User’s Guide
159 Chapter 15 VPN Screens

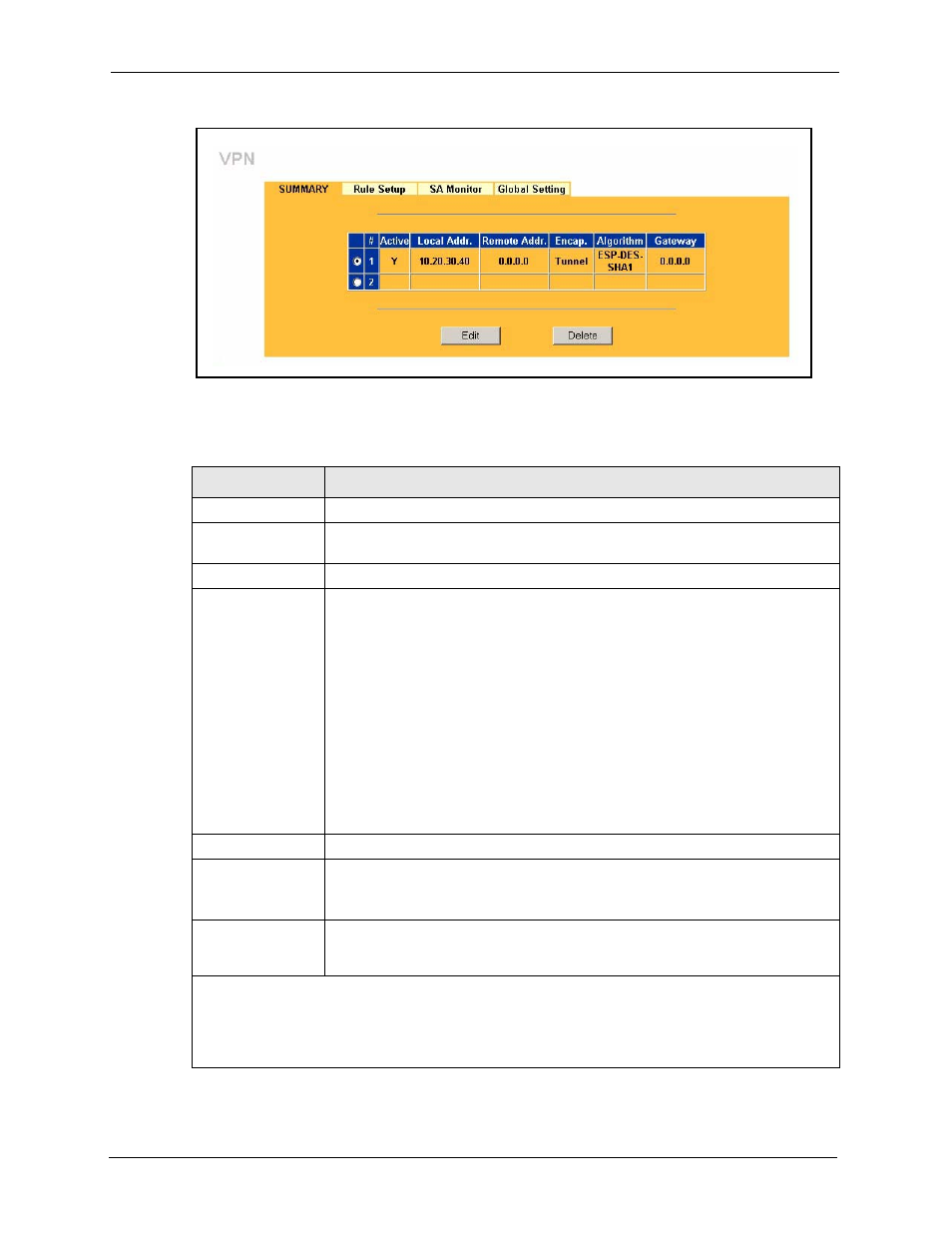

Figure 60 VPN: Summary
The following table describes the labels in this screen.
Table 47 VPN: Summary
LABEL DESCRIPTION
# The VPN policy index number.
Active This field displays whether the VPN policy is active or not. A Y signifies that this
VPN policy is active. N signifies that this VPN policy is not active.
Local Addr. This is the IP address of the computer on your local network behind your Prestige.
Remote Addr. This is the IP address(es) of computer(s) on the remote network behind the
remote IPSec router.
A single (static) IP address is displayed when the Remote Address Start and
Remote Address End/Mask fields in the Rule Setup IKE (or Manual) screen are
both configured to the same IP address.
The beginning and ending (static) IP addresses, in a range of computers are
displayed when the Remote Address Start and Remote Address End/Mask
fields in the Rule Setup IKE (or Manual) screen are configured for a range of IP
addresses.
A (static) IP address and a subnet mask are displayed when the Remote Address
Start and Remote Address End/Mask fields in the Rule Setup IKE (or Manual)
screen are configured for a subnet.
This field displays 0.0.0.0 when the Secure Gateway Address field is set to
0.0.0.0. In this case only the remote IPSec router can initiate the VPN.
Encap. This field displays Tunnel or Transport mode (Tunnel is the default selection).
Algorithm This field displays the security protocols used for an SA.
Both AH and ESP increase Prestige processing requirements and
communications latency (delay).
Gateway This is the static WAN IP address or URL of the remote IPSec router. This field
displays 0.0.0.0 when you configure the Secure Gateway Addr field in the Rule
Setup IKE screen to 0.0.0.0.
Select the radio button next to a VPN index number and then click Edit to edit a specific VPN policy.
Click the radio button next to an empty VPN policy index number and then Edit to add a new VPN
policy.
Select the radio button next to a VPN policy number you want to delete and then click Delete. When a
VPN policy is deleted, subsequent policies do not move up in the list.
