10 of 22
ISSUED: 08-24-12 SHEET #: 180-9030-1

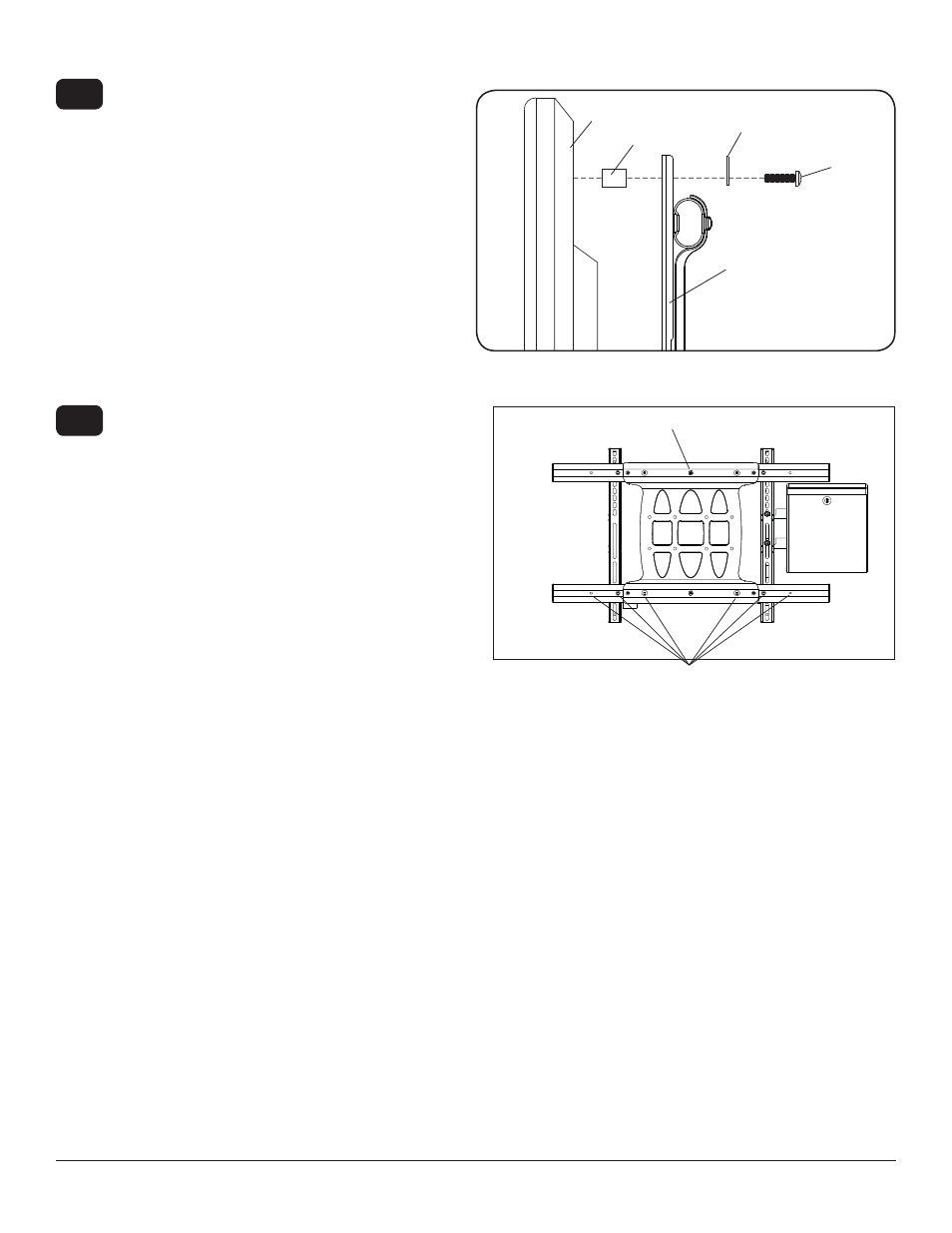

NOTE: enclosure removed for clarity.
Begin with the longest length screw, hand thread
screw through multi-washer, display brackets and
spacer in that order into display as shown below.
Screw must make at least three full turns into the
mounting hole and fi t snug into place. Do not over
tighten. If screw cannot make three full turns into
the display, select a shorter length screw from
the baffl ed fastener pack. Repeat for remaining
mounting holes, level display brackets and tighten
screws.
5-2
DISPLAY
MULTI-WASHER
DISPLAY BRACKET
SPACER
SCREW
Center display brackets horizontally and vertically
on back of display. Tighten two 1/4-20 x 1.25"
screws. Reinstall four 1/4-20 x .6" screws using
a 5 mm allen wrench into appropriate fi xed-stop
position from chart on page 7.
5-3
1/4-20 x 1.25" SCREWS
1/4-20 x .6" SCREWS
