8 of 22 ISSUED: 08-24-12 SHEET #: 180-9030-1

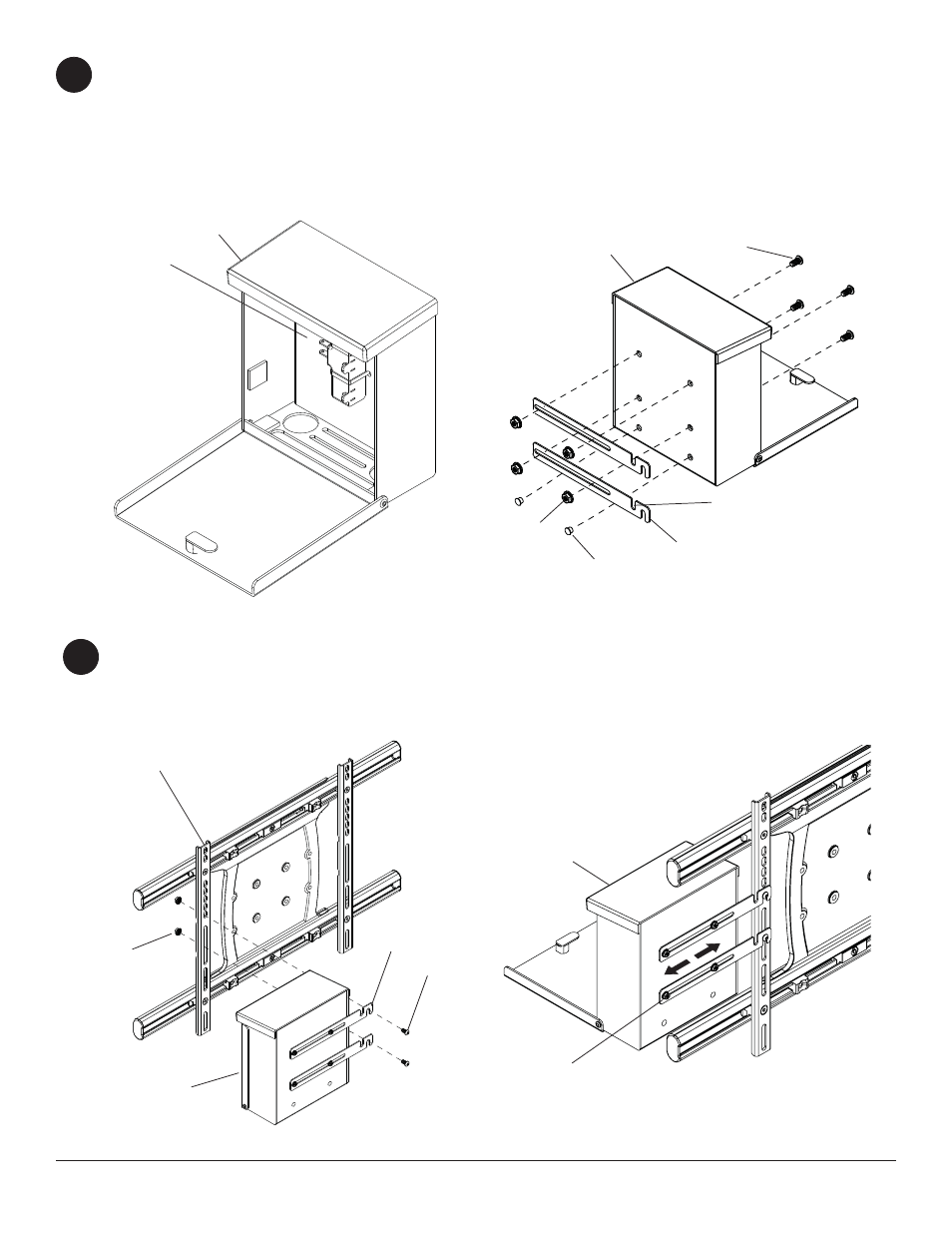

Open the wireless receiver enclosure (A) and remove the sub panel assembly as shown in fi g. 4.1. Loosely attach
the small enclosure mounting brackets (J) to the wireless receiver enclosure (A) with two 1/4-20 x 1/2 socket
head screws (G) and two 1/4-20 nuts (H) as shown in fi g. 4.2. NOTE: The enclosure mounting bracket can be
installed with the inside notch facing downward if additional side-to-side adjustment is needed. Position and
tighten the four 1/4-20 x 1/2 socket head screws (G) using 4mm allen wrench (L). Press in two plastic plugs (F)
into holes shown in fi gure 4.2.
Attach the mounting brackets (J), open end of notch facing downward, to the left display bracket with two
1/4-20 x 1/2 socket head screws (G) and two 1/4-20 nuts (H) as shown in fi g. 5.1.
Adjust the position of the enclosure (A) to your desired location as shown in fi g. 5.2 Once in position, tighten the
four 1/4-20 x 1/2 socket head screws (G) using 4mm allen wrench (L).
4
5
fi g. 4.1
fi g. 5.1
fi g. 5.2
fi g. 4.2
H
J
G
A
A
A
H
A
J
F
G
H
SUB PANEL
ASSEMBLY
DISPLAY
BRACKET
INSIDE NOTCH
