ZABG6002
ZABG6002
Document number: DS32078 Rev. 1 - 2
10 of 12
May 2010
© Diodes Incorporated
A Product Line of
Diodes Incorporated

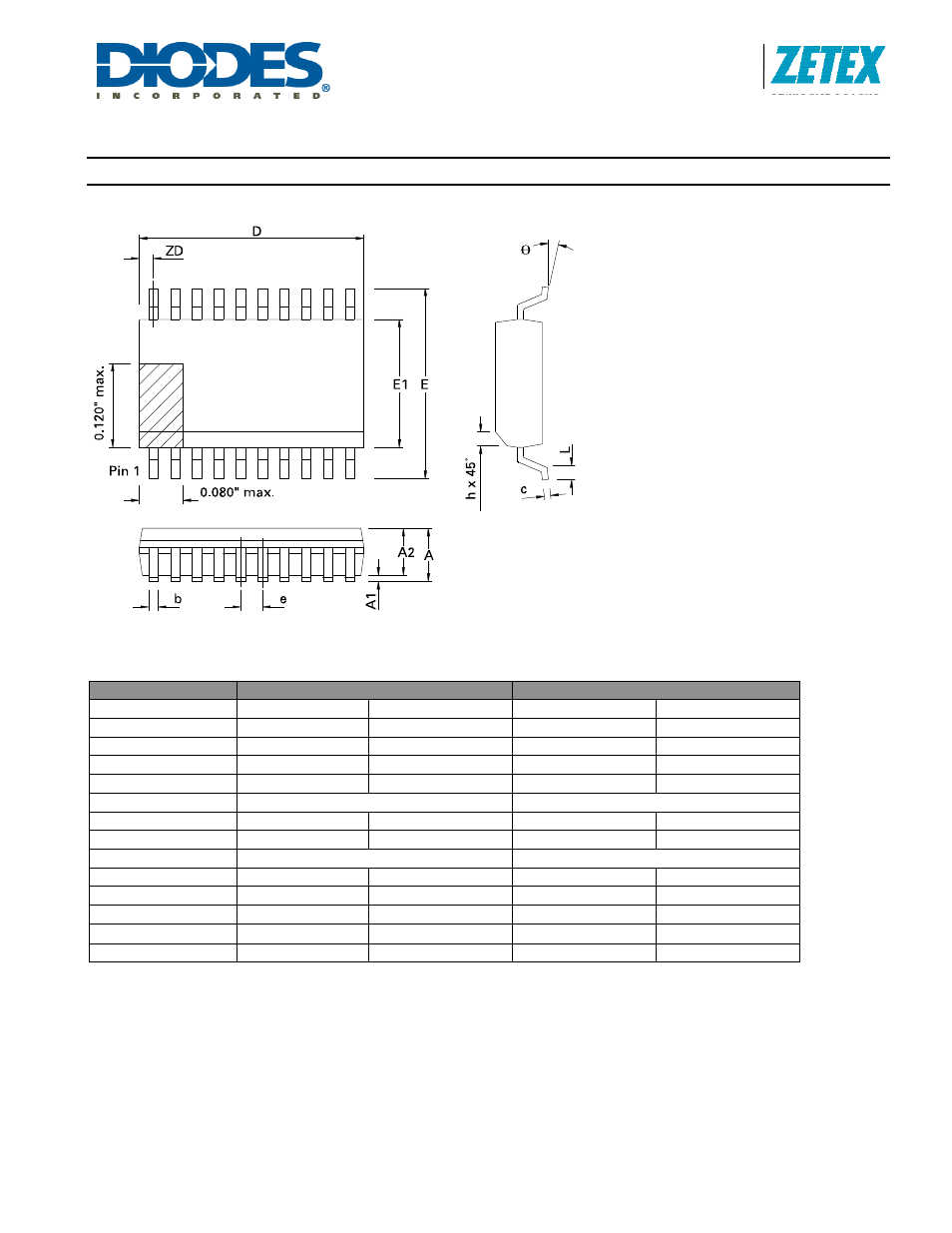

Package Outline Dimensions
QSOP20
DIM
Millimeters
Inches
MIN
MAX
MIN
MAX
A 1.35
1.75
0.053
0.069
A1 0.10 0.25 0.004
0.010
A2 1.25 1.50 0.049
0.059
D 8.56
8.74
0.337
0.344
ZD
0.058 REF
1.47 REF
b 0.20
0.30
0.008
0.012
c 0.18
0.25
0.007
0.010
e
0.64 BSC
0.025 BSC
E 5.79
6.20
0.228
0.244
E1 3.81 3.99 0.150
0.157
L 0.41
1.27
0.016
0.050
θ
0° 8° 0° 8°
h 0.25
0.50
0.010
0.020
