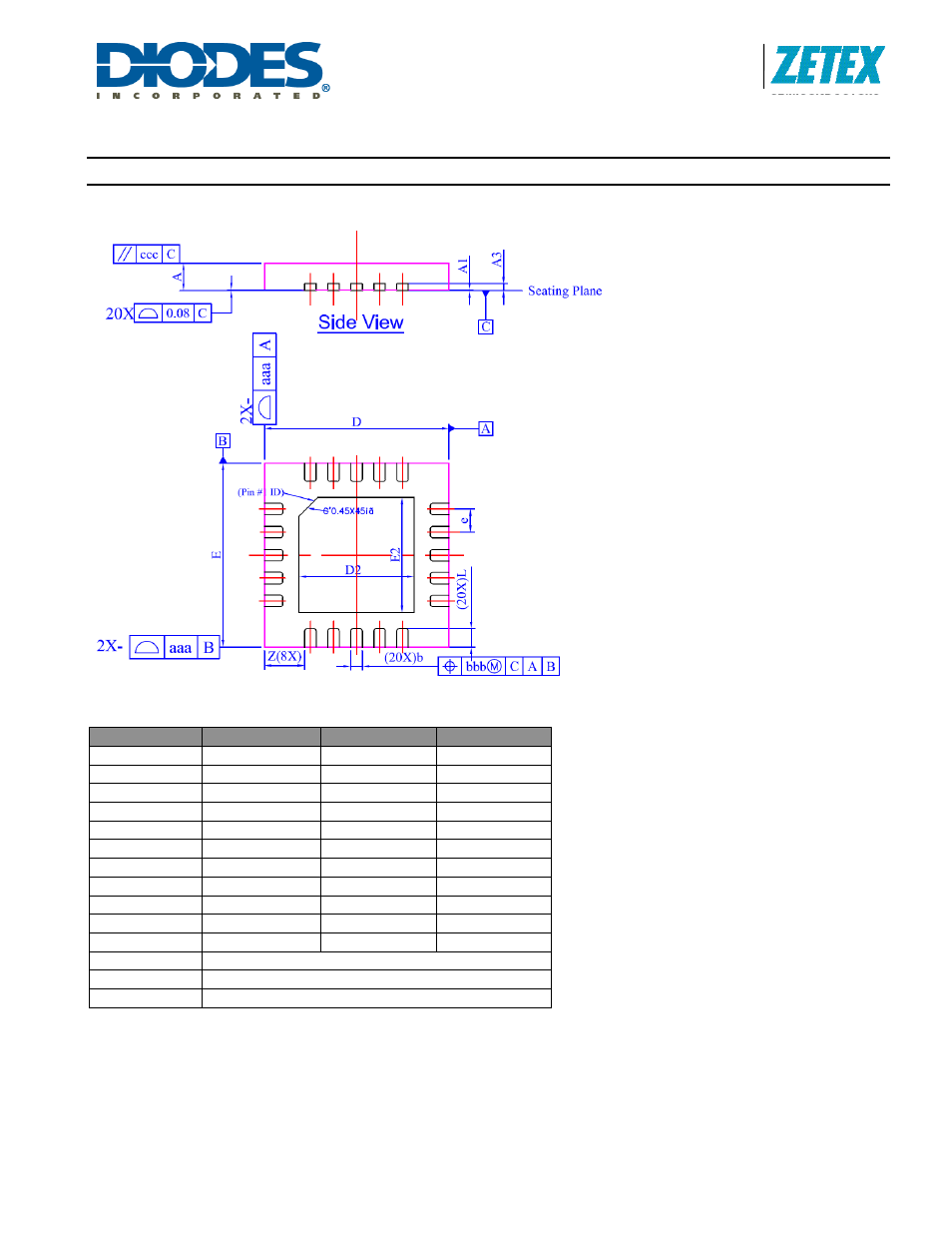

Package Outline Dimensions (Cont.)
QFN2044
DIM Min. Max. Typ.
D 3.95 4.05 4.00
E 3.95 4.05 4.00
D2 2.40 2.60 2.50
E2 2.40 2.60 2.50
A 0.57 0.63 0.60
A1 0 0.05 0.02
A3 — — 0.15
b 0.20 0.30 0.25
L 0.35 0.45 0.40
e — — 0.50
z — — 0.875
aaa 0.25
bbb 0.10
ccc 0.10
