Page 39: 02 power source replacement parts
CUTMASTER 10MM, 12MM
Manual 0-5197AC 6-1 PART LIST
SECTION 6:
PARTS LIST
C. Ordering Information
Order replacement parts by part number and
complete description of the part or assembly, as
listed in the parts list for each type item. Also include
the model and serial number of the torch. Address all
inquiries to your authorized distributor.

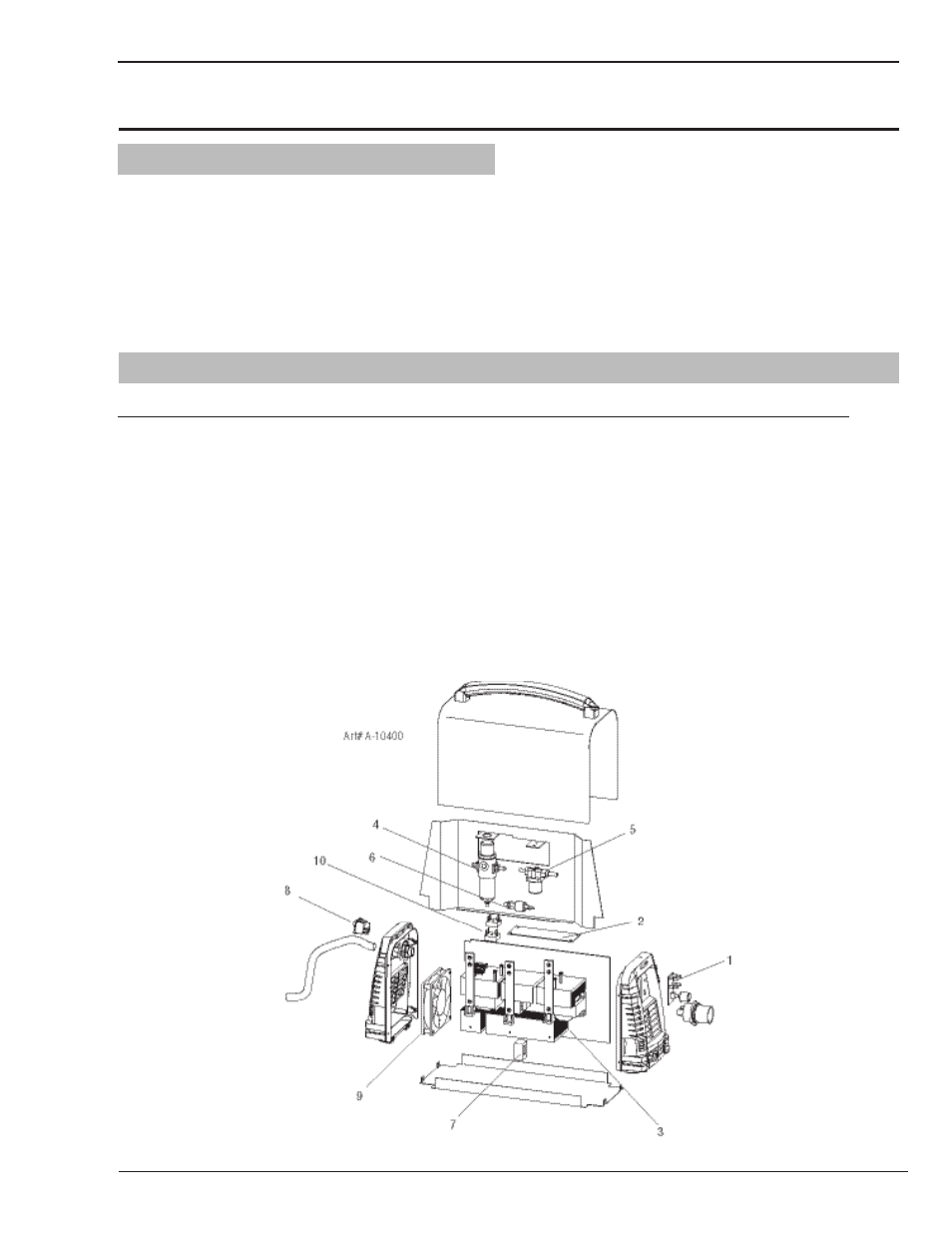

6.02 Power Source Replacement Parts
Item
#
Qty
Description
Catalog
#
1
1
Logic PCB assembly 10mm & 12mm
9-0076
2
1
Control PCB assembly 10mm
9-7555
2
1
Control PCB assembly 12mm
9-0077
3
1
Main PCB assembly 10mm
9-7556
3
1
Main PCB assembly 12mm
9-0079
4
1
Air Regulator 10mm & 12mm
9-0081
5
1
Solenoid assembly 10mm & 12mm
9-0082
6
1
Pressure Switch 10mm & 12mm
9-0075
7
1
Hall Current Sensor 10mm & 12mm
9-0088
8
1
ON/OFF Switch 10mm & 12mm
9-0074
9
1
Cooling Fan 10mm & 12mm
9-0042
10
1
Input Rectifier 10mm & 12mm
9-0049
Parts 6-1 - Power Source
6.01 Introduction
A. Parts List Breakdown
The parts list provides a breakdown of all replaceable
components.
B. Returns
If a product must be returned for service, contact
your distributor. Materials returned without proper
authorization will not be accepted.
