Installation

Operating Manual PSSu E F PS2(­T)(­R)
1002237­EN­03

17

5.3.1

Inserting an electronic module

Procedure:

}

The electronic module must audibly lock into position [1].

}

Mark the electronic module using the labelling strips [2].

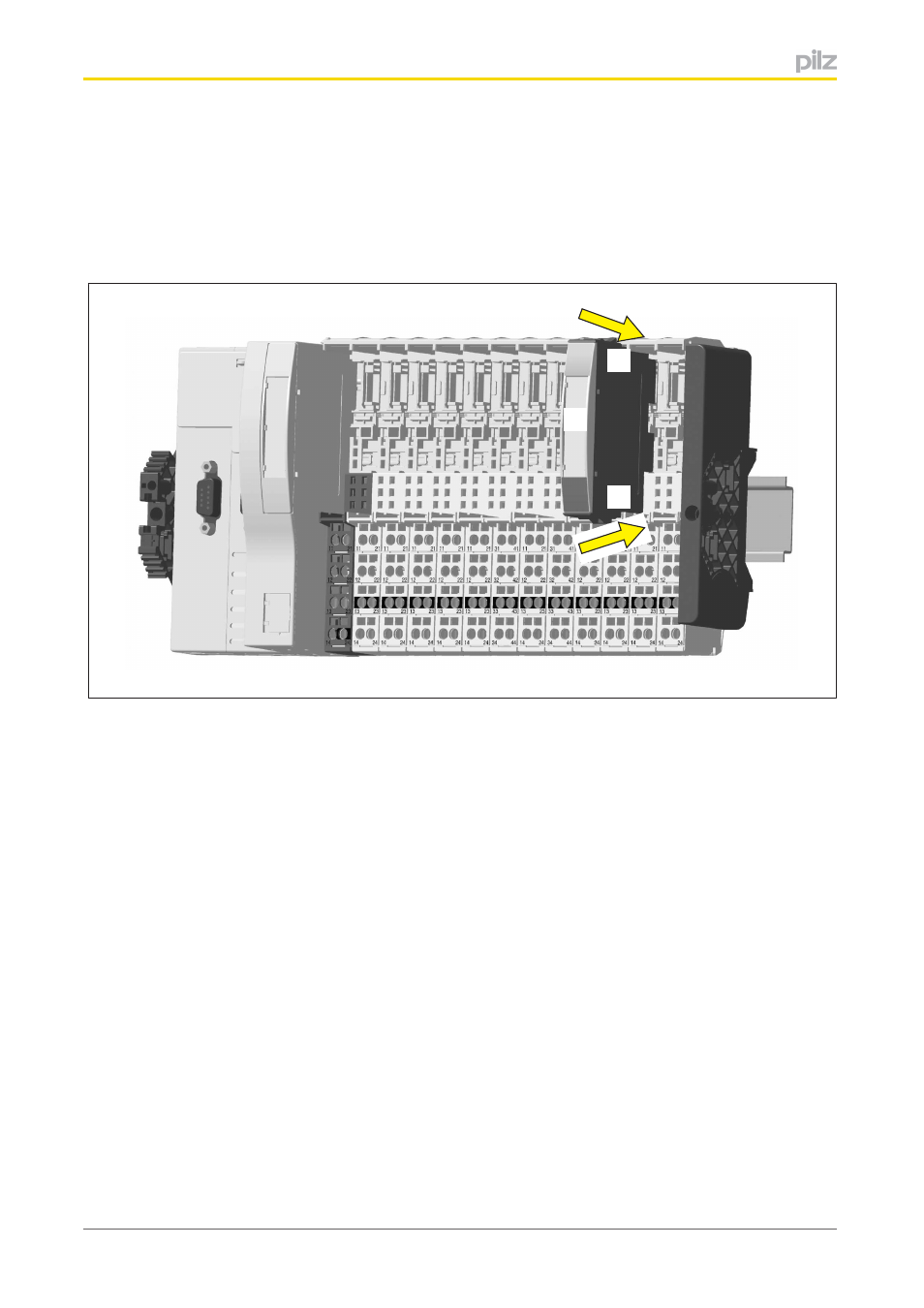

Schematic representation:

[2]

[1]

[1]
