468
4-3. Do-it-yourself maintenance
■

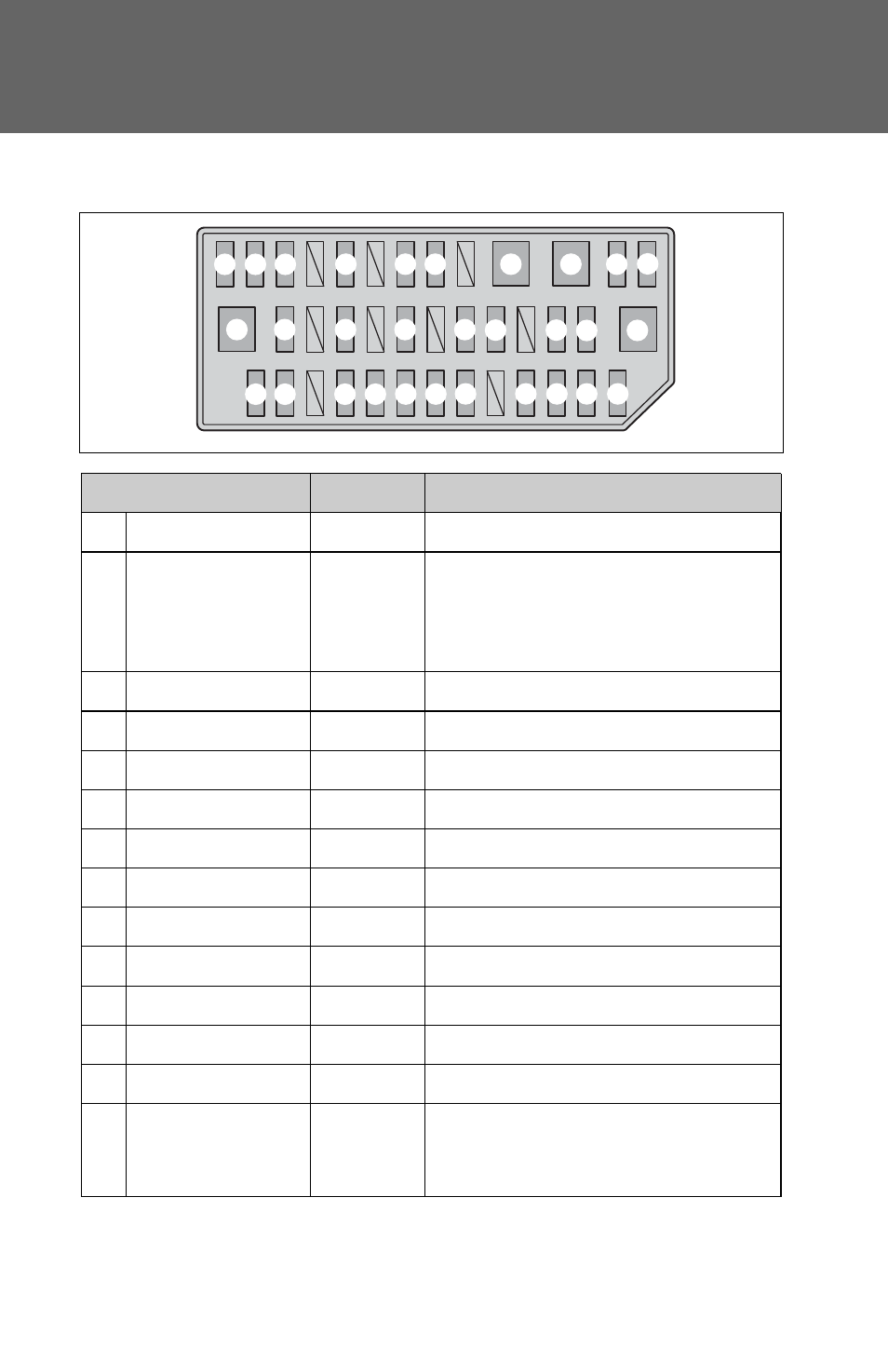

Left side instrument panel
FUSE Ampere Circuit
1 CIG 15A Power outlets
2 ECU-ACC 10A
Multiplex communication system,
outside rear view mirrors, driver
support system, audio system,
navigation system
3 PWR OUTLET 15A Power outlets
4 SEAT HTR FR 10A Seat heater
5 SEAT HTR FL 10A Seat heater
6 DOOR NO.1 25A Power door lock system
7 PSB 30A Pre-Collision System
8 PWR SEAT FR 30A Front seat lumber support
9 DBL LOCK 25A Tilt & telescopic steering
10 FR FOG 15A Front fog lights
11 PWR SEAT FL 30A Front seat lumber support
12 OBD 7.5A On-board diagnosis system
13 RR FOG 7.5A No circuit
14 STOP 10A
Stop lights, high mounted stop-
light, brake system, power win-
dows, driver support system
ITO43P133
1 2 3 4 5 6 7 8 9 10
11 12 13 14 15 16 17 18 19
23 24 25 26 27 28 29 30 20 21 22
