IR PASS-THROUGH
IR Extenders
IR Blaster IR
Receiver
IR Sockets
AT-HD88M-S
IR Main
: The default location for IR blaster to transmit all IR command signals received from any of
the eight remote receivers to all of the HDMI
™
sources.
IR PASS-THROUGH 1
–8: IR blaster connected here can only transmit IR command signals from
the remote receivers that are setting at respective input channel from 1 to 8.
AT-HD88M-R
IR RECEIVER
: IR receiver connected here can receive all IR command signals from the IR remote
controls of AT-HD88M-SR and all other HDMI
™
source devices.

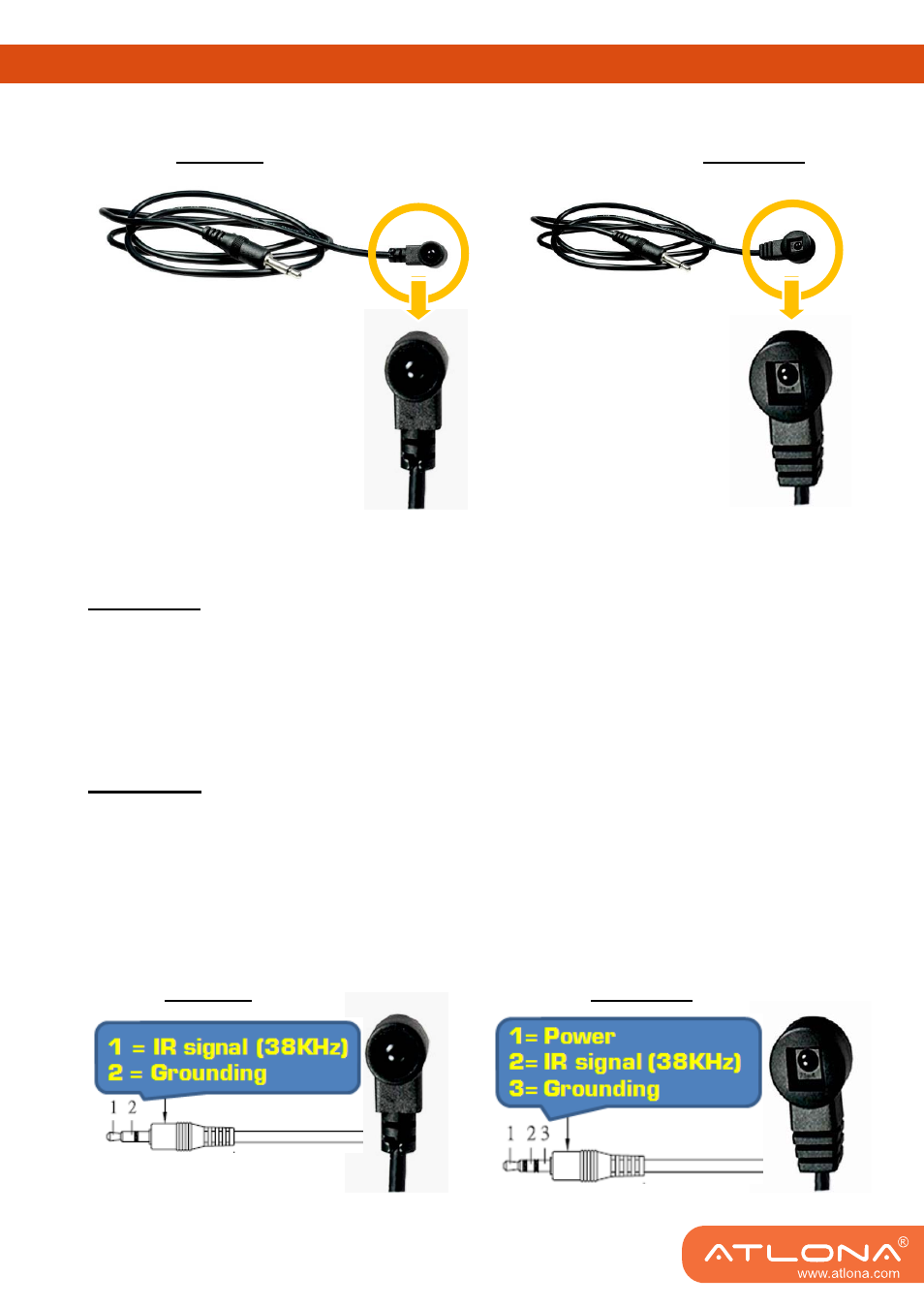

Definition of IR Earphone Jack
IR Blaster
IR Receiver
