7

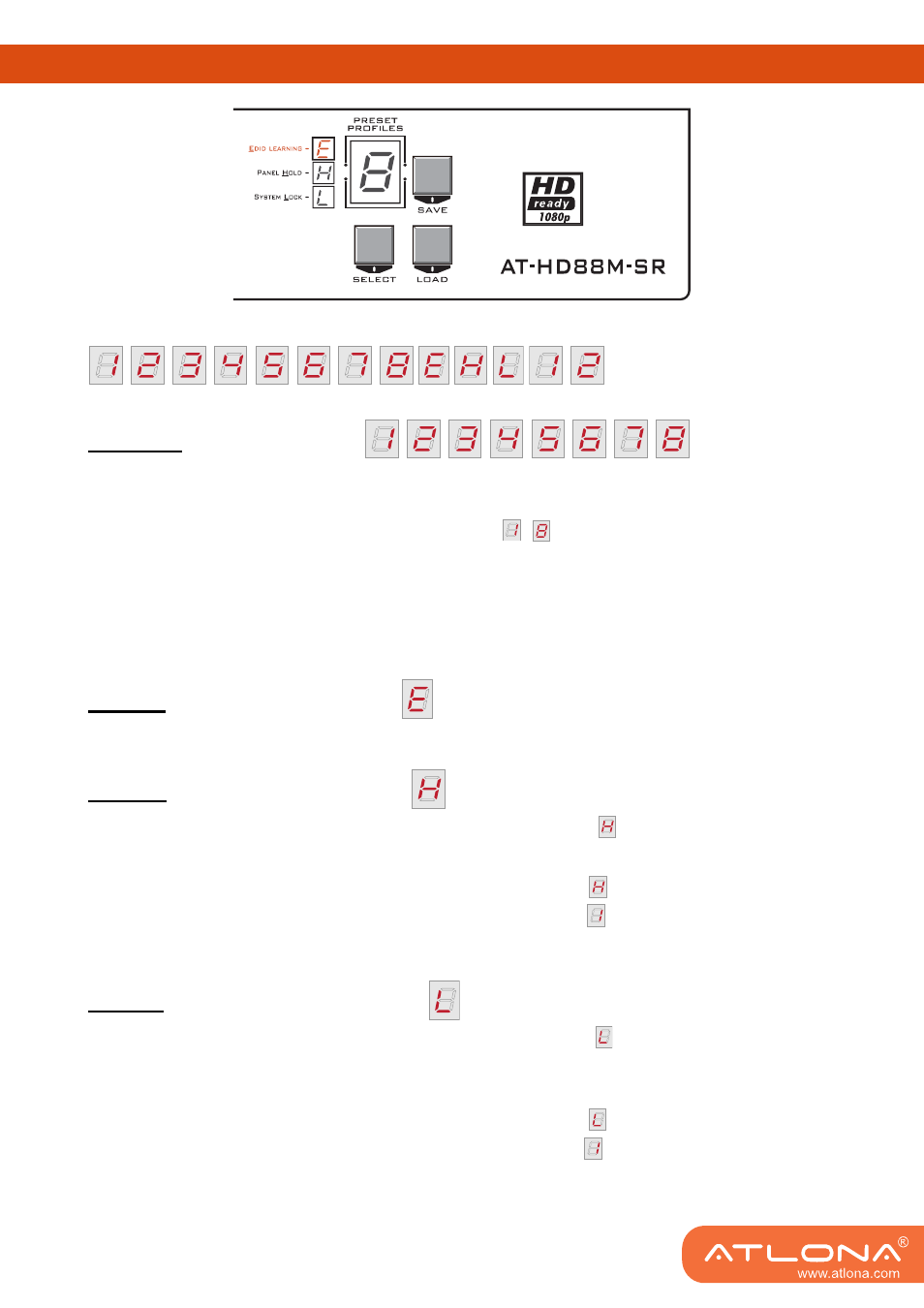

MODE SELECTION
Selection Sequence:
Mode 1-8: Preset Profiles
The matrix allows 8 sets of channel mapping configuration saved as preset profiles for later use.
Save current configuration:
Push the SELECT button to assign the preset profile ( - ) then press the SAVE button to save
the current channel mapping configuration into this designated preset profile.
Load previously saved configuration:
push the SELECT button to desired preset profile (1-8) then press the LOAD button to restore the
previously saved channel mapping configuration from the designated preset profile.
Mode E: EDID Learning Mode
Please find the detail in the following section for operation in EDID Learning mode.
Mode H: Panel Hold or Unhold
Hold:
press SELECT button until the PRESET PROFILES shows and wait for 3 seconds, then
all of the buttons on the matrix front panel will be ineffective automatically.
Unhold: when the LED display of PRESET PROFILES shows , keep pressing the SELECT
button for 3 seconds until the PRESET PROFILES shows to unhold all of the buttons on
the front panel.
Mode L: System Lock or Unlock
Lock: push SELECT button until the PRESET PROFILES shows and wait for 3 seconds, then
all functions of the whole system (including the receivers, IR remote, and the commands
through RS-232 or USB) will be locked automatically.
Unlock: when the LED display of PRESET PROFILES shows , keep pressing the SELECT
button for 3 seconds until the PRESET PROFILES shows to unlock all system functions.
