2.1.5 To store the measured values, use the / keys to select a desired
memory station (1-50) on the display. Then press the MR Key for 2 seconds
to store the measurement data into the designated station memory
location.
The letter “M” will be displayed in the upper right corner of the screen to
indicate stored values in the designated station memory location. Old
data must be cleared from a station by pressing and holding the MC Key
for 5 seconds before new measured values can be saved.
The stored data in all fifty memory locations can be cleared in a single
operation by pressing both the MC Key and the ST Key for 5 seconds.
3. CABLE ID MODE:
In this mode, the receiver can be used to identify unidentifed cables by
attaching specially marked terminators (Holland p/n PFTK) to one end of
each cable. The meter can read the terminator resistance and display the
specific ID of the terminator corresponding to the chart below:

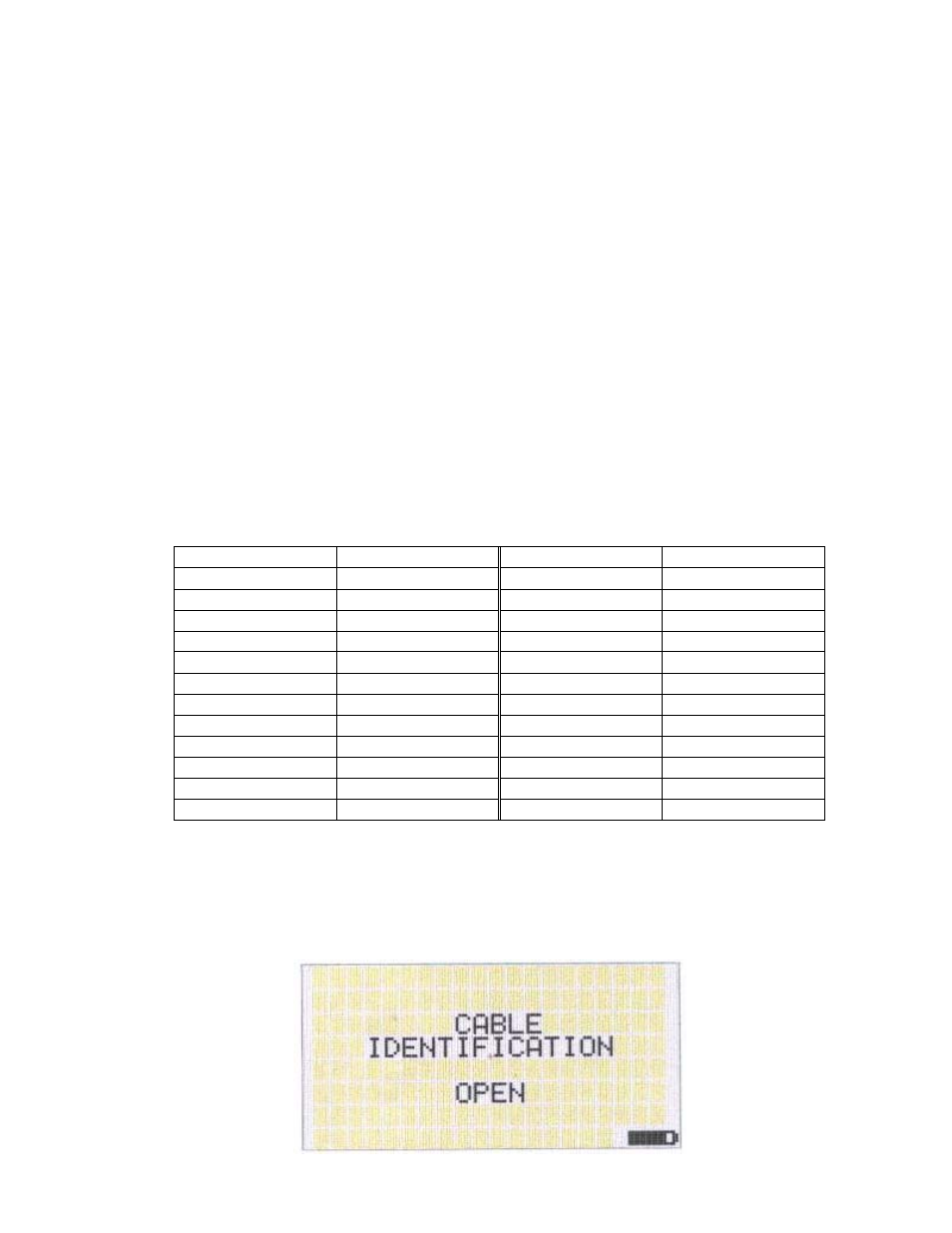

3.1 Press the MODE key to select Cable ID mode. The LCD will display as shown
below:
Resistance ohms Cable ID Display Resistance ohms Cable ID Display
0 ~ 210 SHORT 11K ~ 11.99K 11
220 ~ 990 -- -- 12K ~ 12.99K 12
1K ~ 1.99K 1 13K ~ 13.99K 13
2K ~ 2.99K 2 14K ~ 14.99K 14
3K ~ 3.99K 3 15K ~ 15.99K 15
4K ~ 4.99K 4 16K ~ 16.99K 16
5K ~ 5.99K 5 17K ~ 17.99K 17
6K ~ 6.99K 6 18K ~ 18.99K 18
7K ~ 7.99K 7 19K ~ 19.99K 19
8K ~ 8.99K 8 20K ~ 24.5K 20
9K ~ 9.99K 9 24.5K ~
OPEN
10K ~ 10.99K 10
