There are two IP Port Forwarding tables in this configuration for inputting items for “IP port
forwarding”. In the default settings, the two tables are empty. Click on “Add” and “Edit”
button can pop up windows for editing the tables.

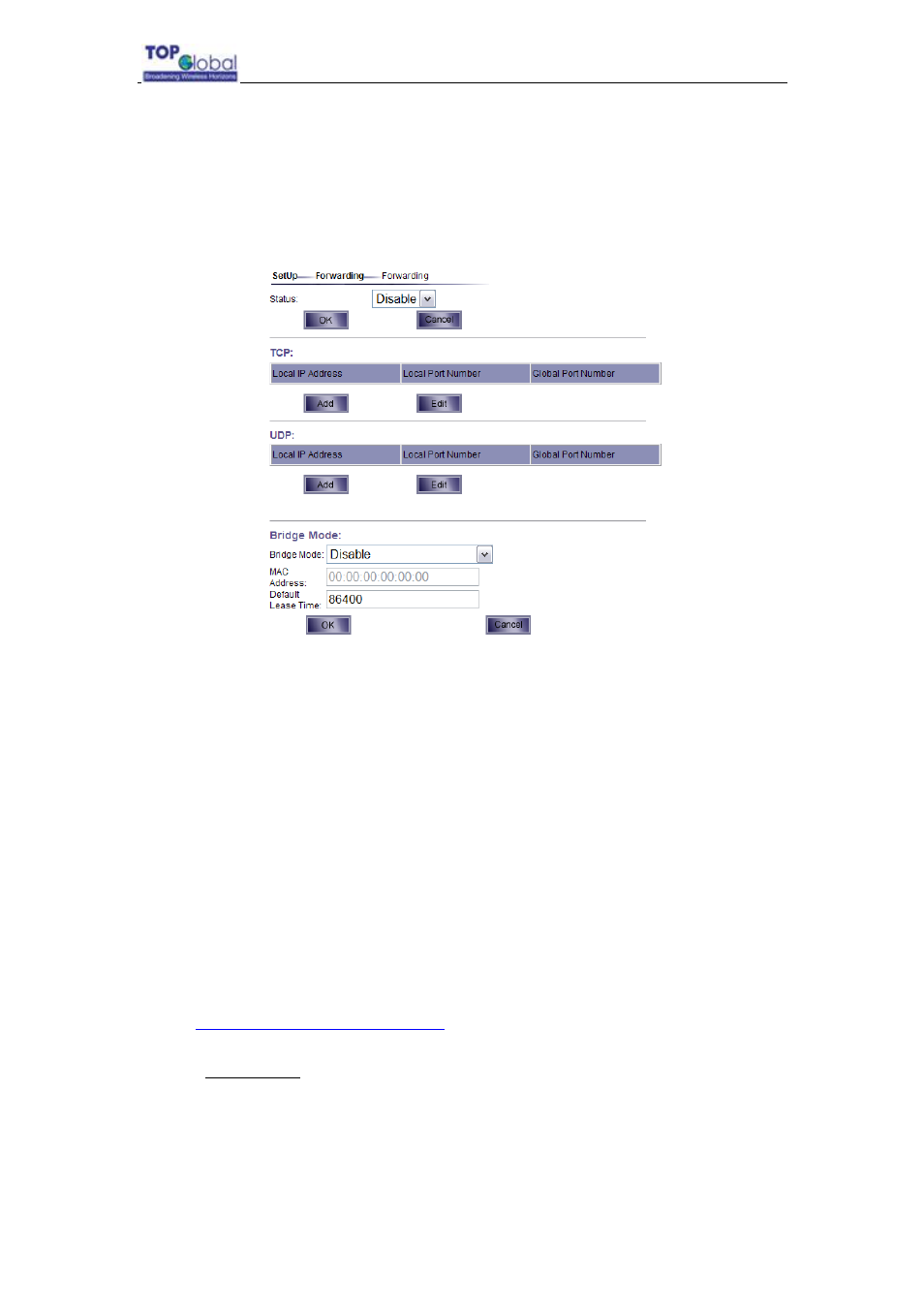

Figure 3- 17 IP Port Forwarding Table
z
Add an Entry to the IP Port Forwarding Control Table
1．
Click the “Add” button in the TCP or UDP table.
2．
Enter the Local IP Address of the client station.
3．
Enter the Local Port Number of the client station.
4．
Enter Global Port Number.
5．
Add a comment as needed. Entries are automatically enabled.
z
Disable or Delete an Entry in IP Port Forwarding Control Table
1．
Click the Edit button in the TCP or UDP Table.
2．
Select the entry you want to disable or delete
3． Click
OK
Bridge Mode:
When bridge mode is enabled, MB8000 works as a bridge. That is, MB8000 forwards
incoming and outgoing packets, doesn’t modify anything about them. We will discuss it in
section
How to Use MB8000 as A Bridge
(3.3.3.12).
z
Bridge
Mode: Indicates users which bridge mode will be used. When Enable
with Static MAC
is selected, users should assign a client’s MAC address to
MB8000. When Enable with Dynamic MAC is selected, MB8000 gets client’s
physical address automatically.
z
MAC Address: Client’s physical address.
