Top Global USA. ----MB8000 User Guide
- 8 -
1. MB8000 Main Unit (Top View）
2. Power
supply
3. MB8000 Mounting Rack (Back View, optional and can be purchased separately)
4. CD
5. Cross-over cable
6. User manual
7. QIG (Quick Installation Guide)
Note
:
When shipped from the factory, a Mini-PCI Card has been built into MB8000. Mini
PCI Card is a wireless network card with integrated radio modules and antennas
(2.4 GHz). The card complies with the IEEE 802.11b and Wi-Fi™ standards.
2.3 Write Product Identification
Before you proceed with your MB8000 installation, please write down and keep the
following MB8000 information.
z Serial Number
z MAC address
2.4 Power up the MB8000
Connect the power supply. (See Figure 2-2).

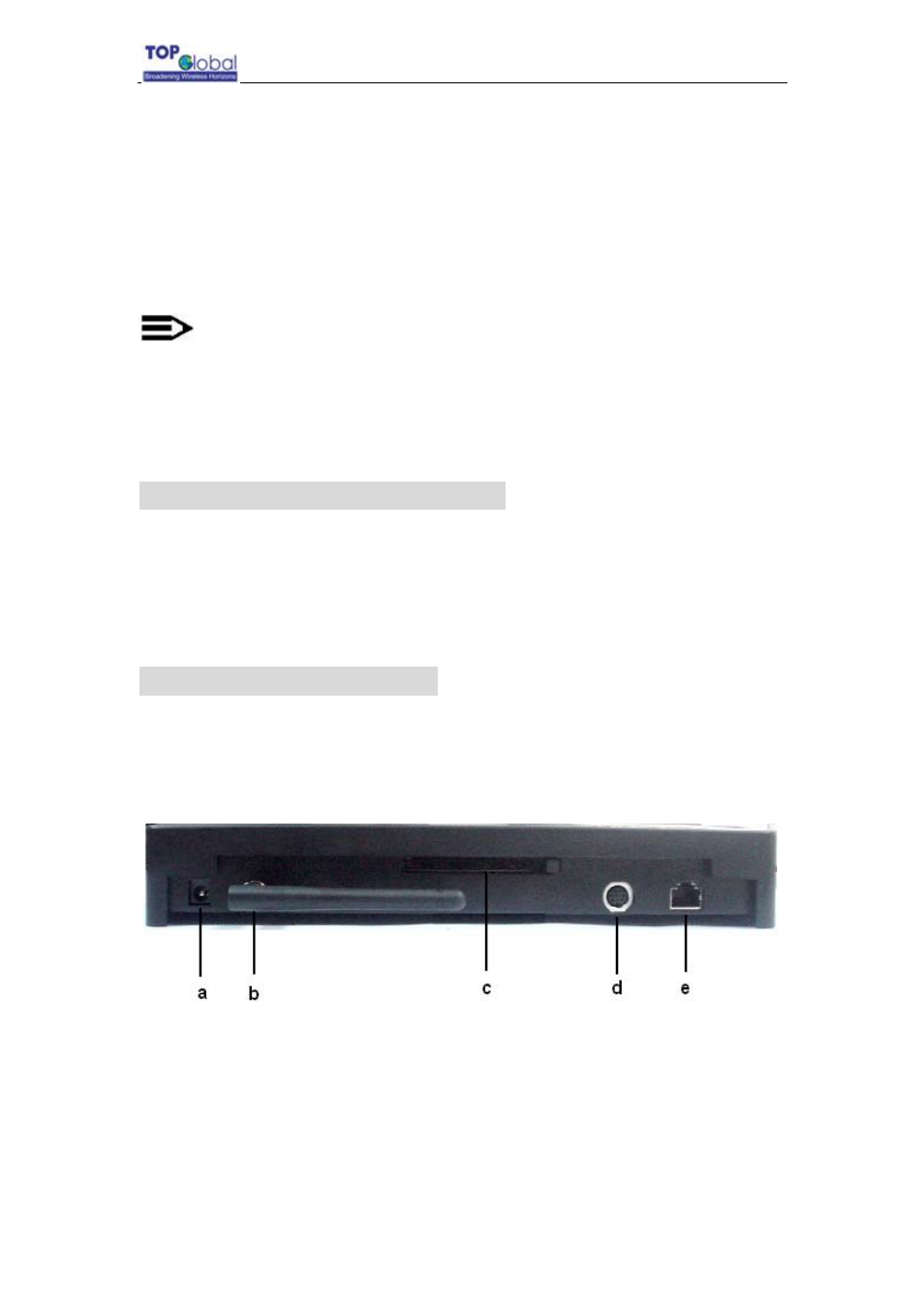

Figure 2-2 Ports description
a. Power
b. WLAN Antenna
c. PC CARD Slot
d. Serial Port
e. Ethernet Interface(LAN)
