Chapter 8
AXP 1410 Installation and Use (6806800H70L) 191
Shelf Management Alarm Module
8.1 Overview
The SAM1410 is compliant to PICMG 3.0 R1.0 (AdvancedTCA). It is equipped with a backplane
connector and is plugged into a 2U slot.
The alignment pin offers a guiderail to the slot and a coding mechanism to ensure the
installation of the board in the matching slot. It also prevents bent pins which may occur during
installation.
The hardware consists of:
 Payload hardware section with
– Ethernet interfaces to the backplane and to the face plate
– Redundant connection between two shelf managers via backplane
– Block transfer interface to the ShMC

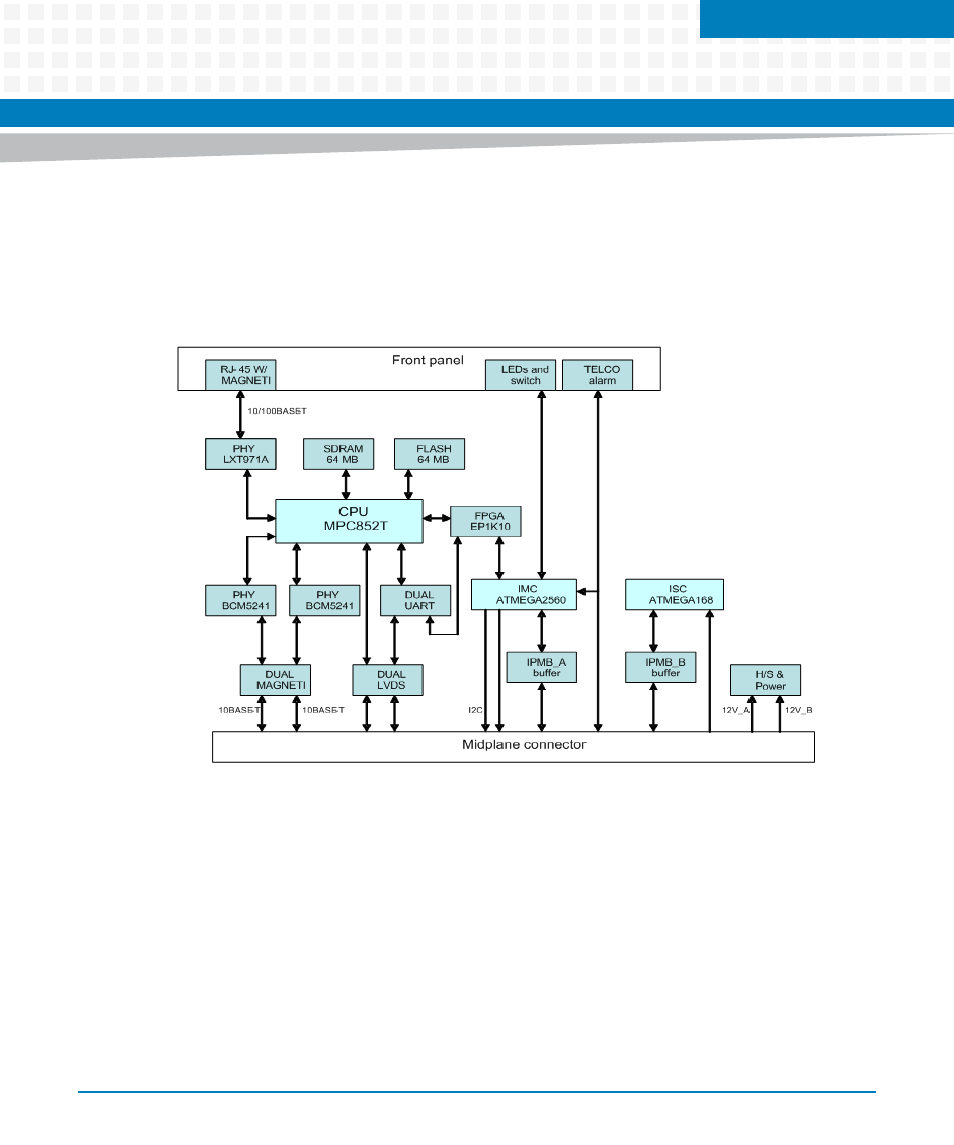

Figure 8-1 SAM1410 Block Diagram
