User Manual
21
5.3.4.6 Mobile Set
Click [Main menu
ÆNetworkÆMobile] to enter into the [Mobile] interface shown as Picture 5-30.
5.3.4.7 CMS Set
5.3.5 Alarm set
5.3.5.1 0RWLRQ'HWHFWLRQ
Click [Main Menu
ÆDeviceÆMotion] to enter into the below interface shown as Picture 5-32.
¾ Channel: allow you enable/disable the motion function for any channel.
¾ Area: Click the [Setup] button to enter into area setup interface shown as Picture 5-33.
¾ Sensitivity: allow you to configure sensitivity level of motion detection from higher to low with 8
being the most sensitive.
¾ Alarm out: allow you connect external alarm sensor.
¾ Latch time: you can set how long the buzzer will sound when object move is detected (10s, 20,
40s, 60s).
¾ User Name: indicate user name of DVR, and support
numbers and characters and 1~15 bits length.
¾ User password: indicate user password of DVR, and
also support numbers and characters and 1~15 bits
length
¾ Server port: Mobile monitoring port. Setting range is
between 1024 and 65535.
¾ Remote Surveillance: allow you enable the remote
surveillance function.
¾ CMS name: input CMS name.
¾ Device ID: Input device ID no allocated by CMS system.
¾ CMS IP: Input public IP of CMS system.
¾ CMS port: Input according communication port
¾ Upload mode: defaulted to TCP.
Note:
1 ǃ The DVR is currently compatible with mobile phones running Andriod, Windows Mobile,
Symbian operating systems, Iphone and Black berry on 3G networks.
2 ǃ The server port here can’t duplicate with network port

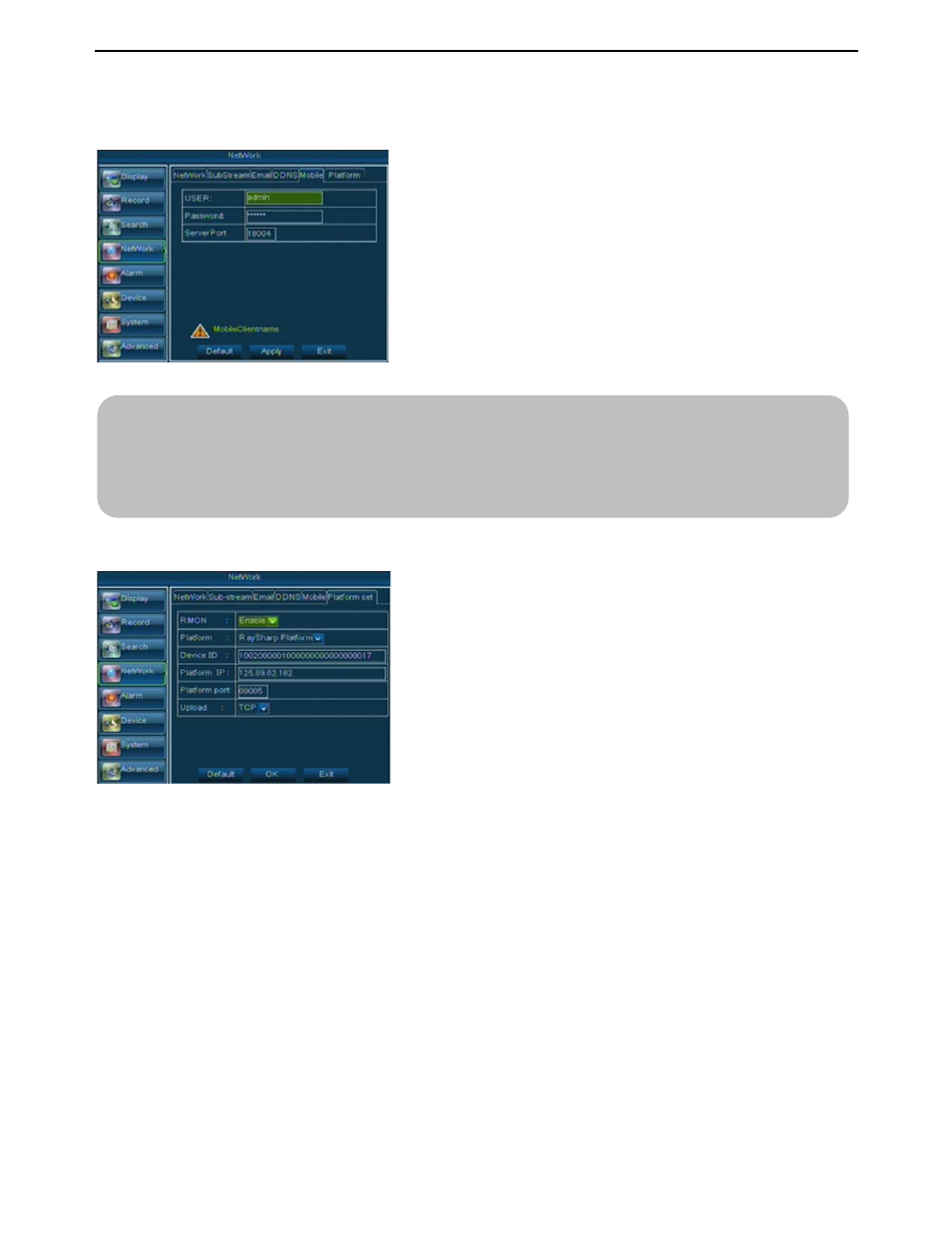

Picture 5-30
Picture 5-31
