- 53 -
PS-8810
DIGITAL SIGNAL PROCESSOR
The PS-8810 is an 8 analogue input/10 analogue output digital
signal processor and matrix mixer that also has the capability of
routing 8 digital inputs and 8 digital outputs from a CobraNet
network when the PS8810C or CobraNet card is used.
The 8 rear panel analogue inputs and the 8 CobraNet inputs are
available to each of the 16 Input Processing Sections through a
switch. The sixteen Input Processing Sections are divided into
eight pairs (A & B) that share a common rear panel analogue input
or CobraNet input. For example, Input Processing Sections 1A and
1B can have either Analogue Input 1 or CobraNet Input 1 as their
input. All sixteen Input Processing Sections are identical. The
outputs of the Input Processing Sections are fed to the 24 x 10
Matrix Mixer.
In addition, the output of the ‘B’ Input Processing Sections are
available to the eight CobraNet outputs. These CobraNet output
routing switches allow either the output of the ‘B’ Input Processing
Sections or the output of the AUX Output Processing Sections to be
sent to the eight CobraNet outputs.

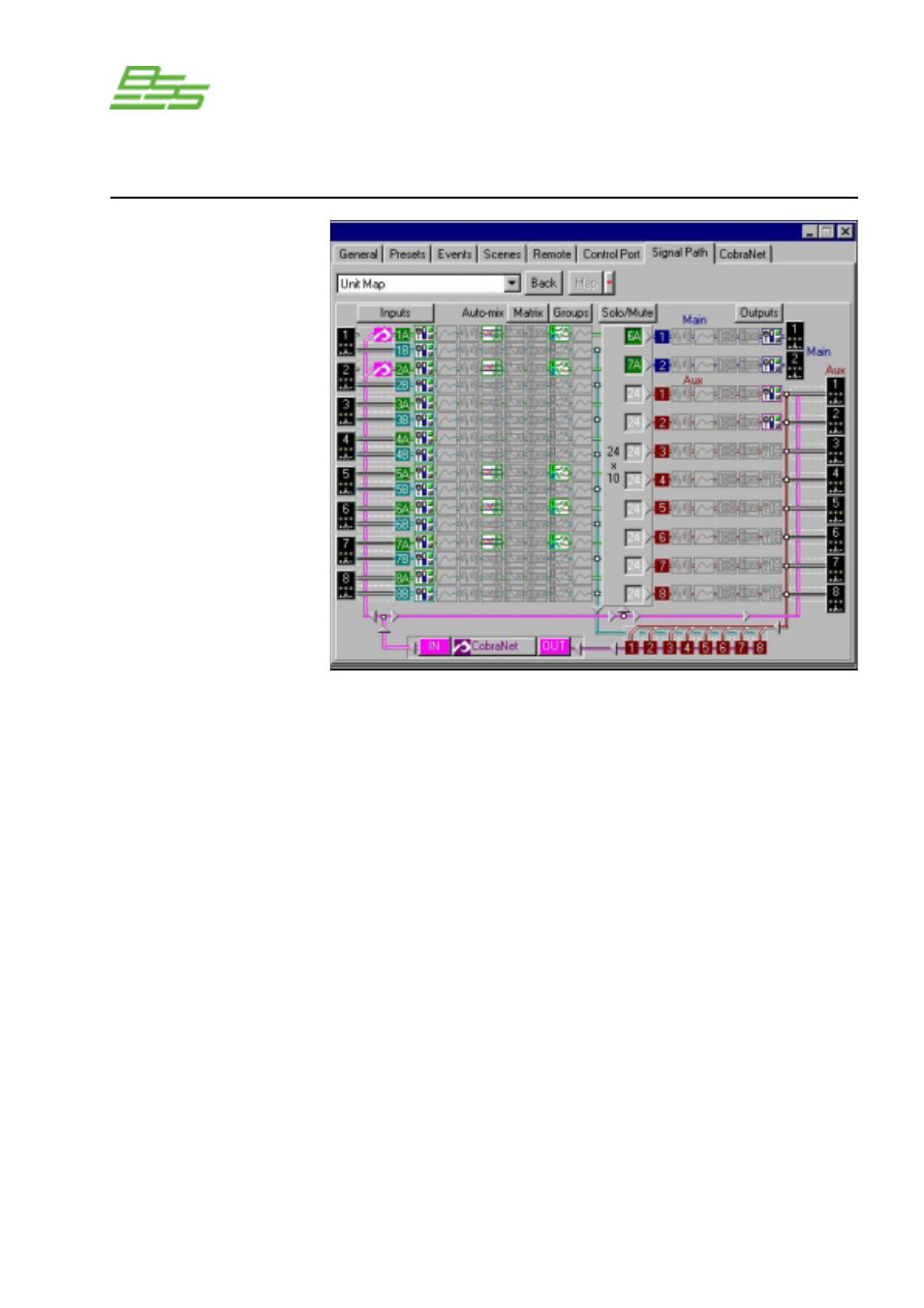

Processing Functions Signal Path
Signal Path
