Introduction High-Power C-Band Satellite Terminal
1–12 Rev. 0
1.5.6 Redundant Switch Unit (RSU)
The RSU-503L (Figure 1-5) is an all-weather unit that provides for primary and backup
operation as a communications terminal. The RSU is designed for mounting on either the
antenna or support pole. The RSU controls the switching from primary to backup service
in a 1:1 redundant configuration.
For information on the RSU-503L, refer to the RSU-503 Redundancy Switch Unit
Installation and Operation Manual.

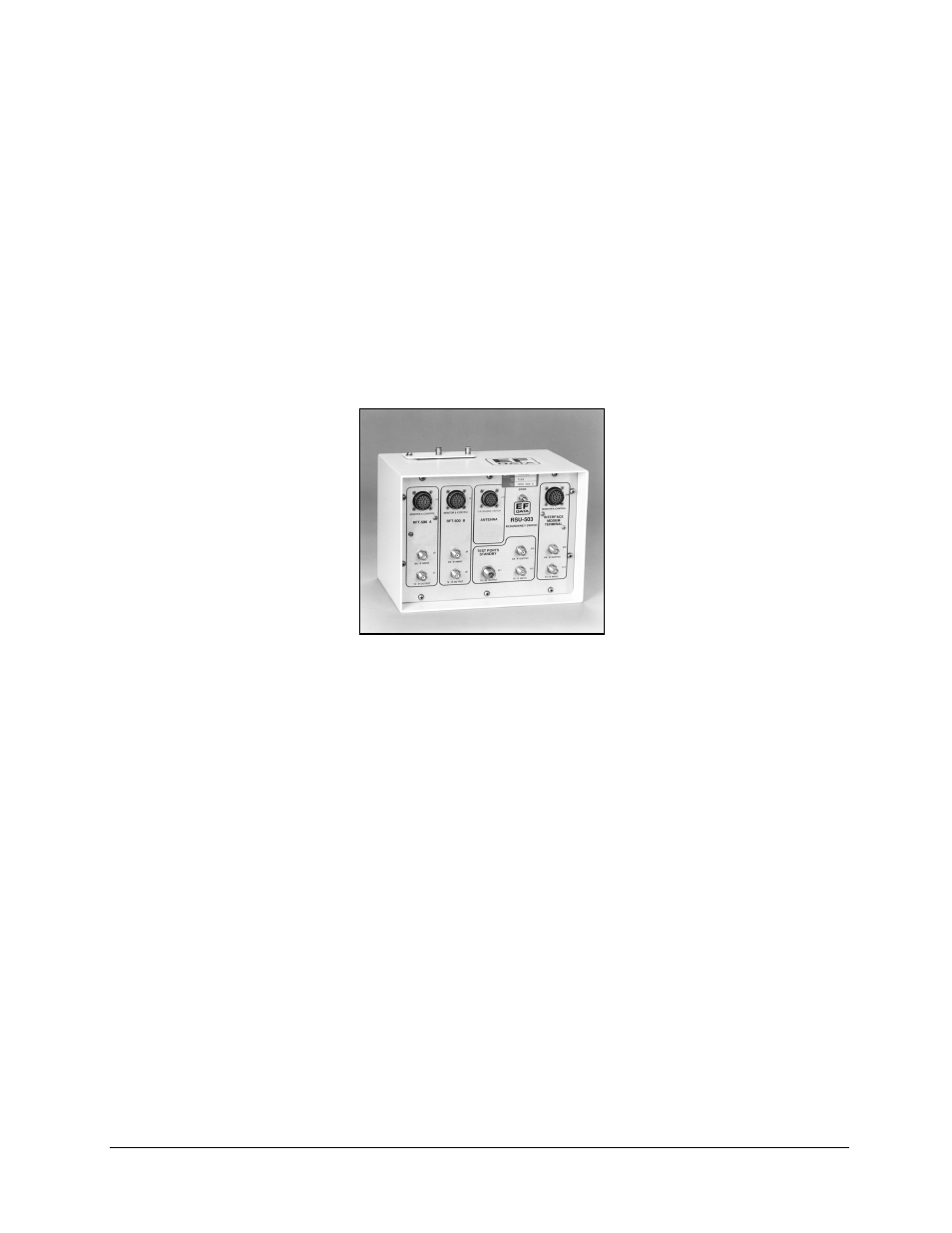

Figure 1-5. RSU-503L
