2-2 Mechanical Installation
2.2 Mechanical Installation
Reference Drawings:
Mechanical Spec, DF-1050 ......................................... Drawing A-191157
Mechanical Specification Drawings ..........................Refer to Appendix A
As noted previously, the DataMaster Parking Garage displays are designed for either
tower or flush wall mounting. Refer to the Mechanical Specifications Drawings for
installation details.
DF-1050 Installation
DF-1050 modules are assembled with end caps and attached with angles to a support
structure provided by the customer. Refer to Drawing A-191157 for detailed
mounting information. Individual drawings for each DF-1050 model are listed in
Appendix A.
End caps are manufactured to have an appropriate height based on the number of
sections or modules the finished display has. The following table provides a guide
for vertical display heights:
DF-1050Display Heights
Overall Height According to Number of Sections Digit
Size
4 5 6 7 8 9 10
5" 40" 50" 60" 70" 80" 90" 100"
7" 48" 60" 72" 84" 96" 108" –
10" 60" 75" 90" 105" – – –

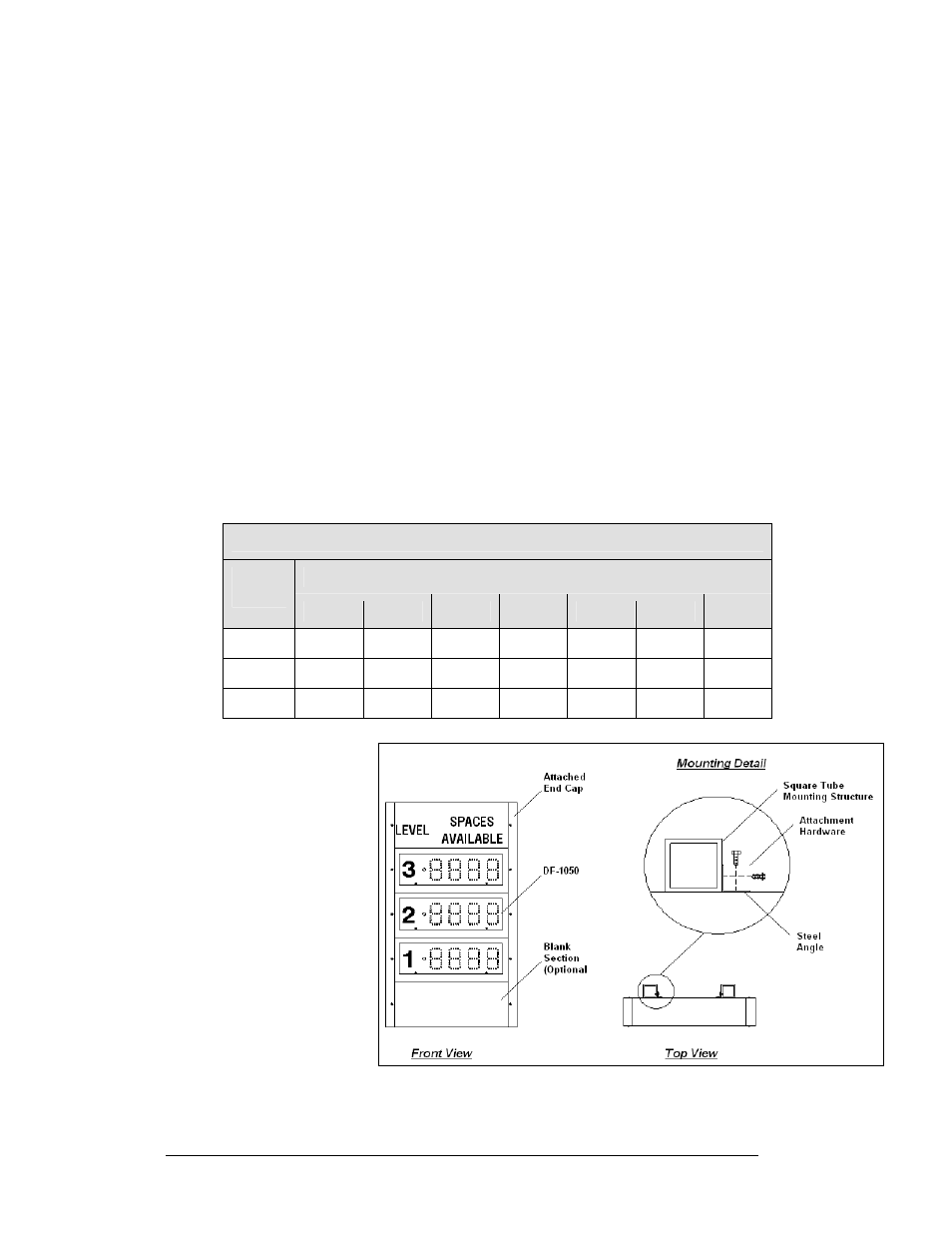

Figure 5 illustrates a
typical DF-1050
installation. Note that
the individual
cabinets attach to the
end caps with a single
screw on either side
of the display (front
and back surfaces).
Holes for the end caps
and for the steel
mounting angles are
pre-drilled, and
hardware for those
components is
provided by
Daktronics.
Figure 5: DF-1050 Mounting
