Parking Garage Display Operation 5-1
Section 5: Parking Garage Display
Operation
These sections describe the DataMaster 100 controller, and how it is used to set the
information on the Parking Garage Display.
5.1 DataMaster 100 Overview
These sections describe the DataMaster 100 controller, and how it is used to set the
information on the Parking Garage Display.
The DataMaster 100 Series controller,
shown in Figure 23 , is a hand-held
controller designed to operate Daktronics
LED DataMaster
displays. The console’s
liquid crystal display (LCD) guides the
user through the operation of the system.
The DataMaster 100, identified by the
series number DM-100, can be configured
to display parking numbers, gasoline
price, time and temperature data, etc. The
displays in the LED DataMaster Series
will use a junction box at the base of the
sign, an indoor wire system, modem or
radio. Refer to Section 3 for information
on possible connection procedures.
For details on configuring the DataMaster
to operate the display, refer to Section
5.3: Parking Garage Display Operation.
5.2 DataMaster Insert and Code
Reference Drawing:
Insert, 0G-164998 (LL-2551) Price/T&T Display ......... Drawing A-164998
The DataMaster 100 is a hand-held controller that uses a keypad insert to program
information into DataMaster Parking Garage displays.

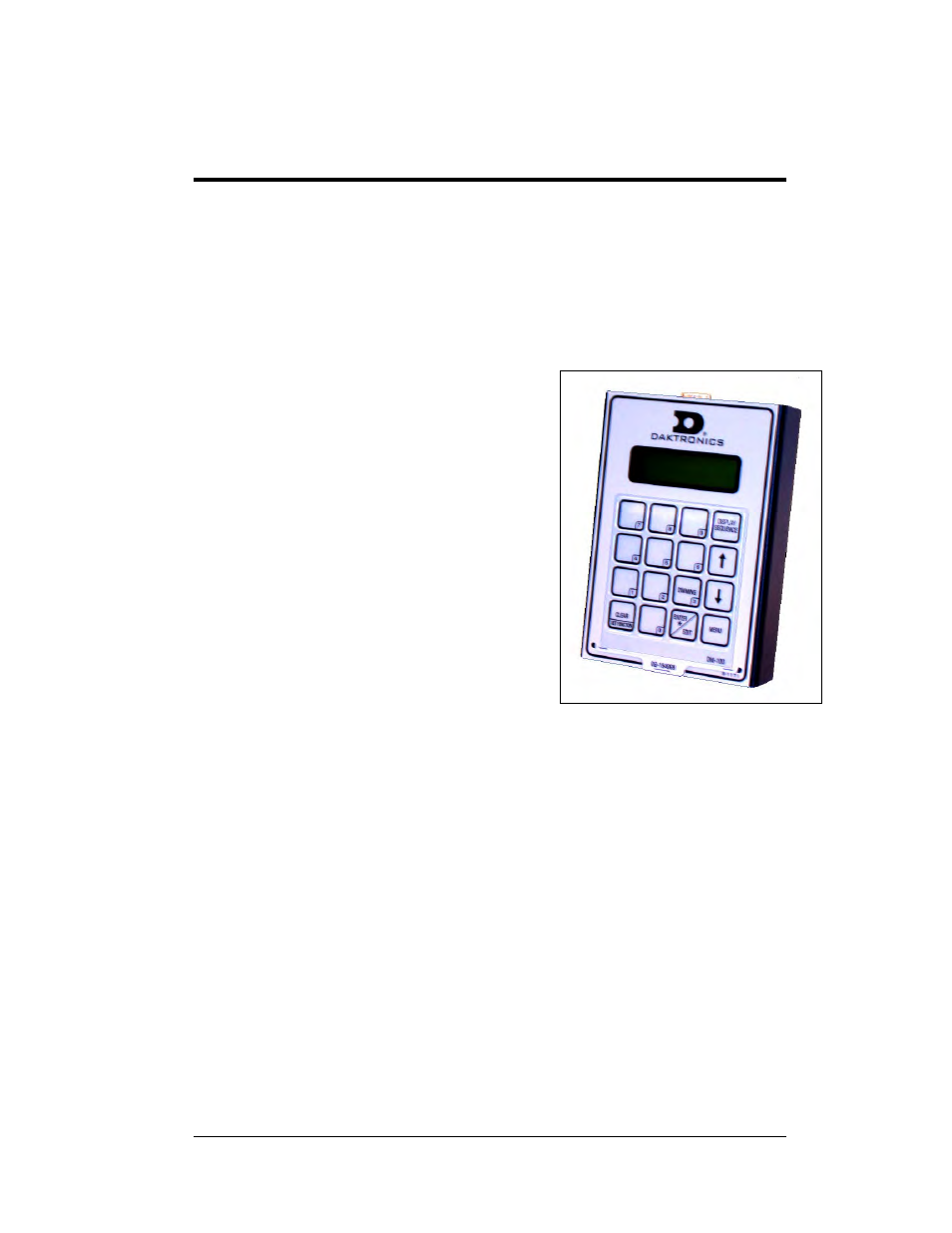

Figure 23: DataMaster 100
