CONTACT US AT www.DRpower.com 13
Adjusting the Wheels and Drag Stake
Adjusting the Wheels
You can adjust the Wheels on the DR ROTO-HOG Mini Tiller
to one (1) of three (3) positions (Figure 6). Use the lowest
Wheel position for transporting the machine across a smooth
level surface while the Engine is not running. Use the two (2)
higher positions for tilling in soil and to help stabilize the unit
when tilling at different depths.
1. Pull the Locking Sleeve (Figure 6) toward the Wheel against
the Spring until it releases from one of the three (3) holes
in the Vertical Guide (Figure 6).
2. Slide the Wheel Set up or down to the desired position,
and then release the Locking Sleeve until it locks into one
(1) of the three (3) Holes in the Vertical Guide (Figure 6).
Adjusting the Drag Stake
The Drag Stake (Figure 7) is used to help regulate tilling depth
and control the machine from lurching forward during
operation. Set the Drag Stake in its lowest position of three (3)
to provide the greatest resistance to forward motion allowing
for deeper tilling.
1. Pull the Detent Pin out of the Drag Stake Mounting Hole
(Figure 7).
2. Position the Drag Stake to the desired depth and reinsert
the Detent Pin.

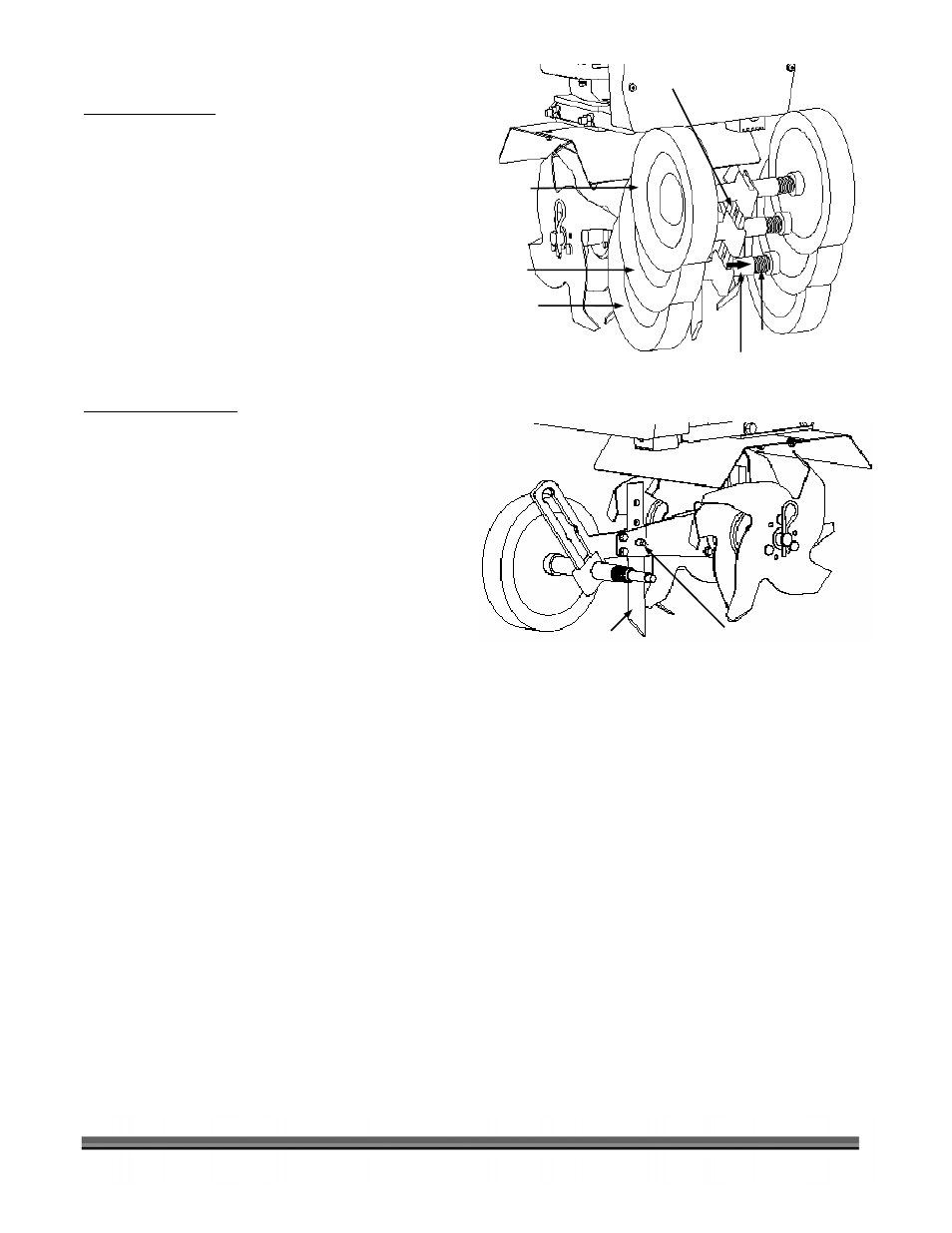

Figure 6
Figure 7
Highest
Middle
Lowest
Locking Sleeve
Spring
Vertical Guide
Drag Stake Detent Pin
