8 DR
®
ROTO-HOG™ Mini Tiller
Unpacking and Assembling the Machine
Your DR ROTO-HOG Mini Tiller shipped in one carton, completely assembled except for the Handlebars and Battery
connection.
Parts Supplied in Shipping Carton:
•
DR ROTO-HOG Mini Tiller
•
Upper Left Handlebar
•
Upper Right Handlebar
•
Middle Handlebar
•
Battery Charger
•
Safety & Operating Instructions Manual
•
Hardware Bag:
- (4) T-Handle Nut
- (4) Curved Washer
- (4) Handle Clamp Bolt
- (2) Ignition Key
Stabilize the shipping carton on a flat ground surface before attempting to unpack and assemble the machine. Do not
place the machine on a bench or table where it can fall and cause personal injury or damage the machine.
1. Carefully lift the DR ROTO-HOG Mini Tiller out of the carton and set the machine upright with the Tines and Wheels on a
level surface.
2. Remove the Hardware Bag from the Shipping Carton.
3. Remove any packing material from the machine and cut the Ties holding the Handlebar pieces to the Tiller assembly.
NOTE: Use care with the Upper Right Handlebar so as not to kink the Throttle Cable; it is pre-attached to the Engine.
4. Using two (2) T-Handle Nuts, two (2) Handle Clamp Bolts and two (2) Curved Washers, assemble the Middle Handlebar
to the Lower Handlebar already attached to the machine (Figure 2).
NOTE: You can install the Middle Handlebar in either of two (2) positions, one high, and one low. DO NOT over tighten the T-
Handle Nuts.

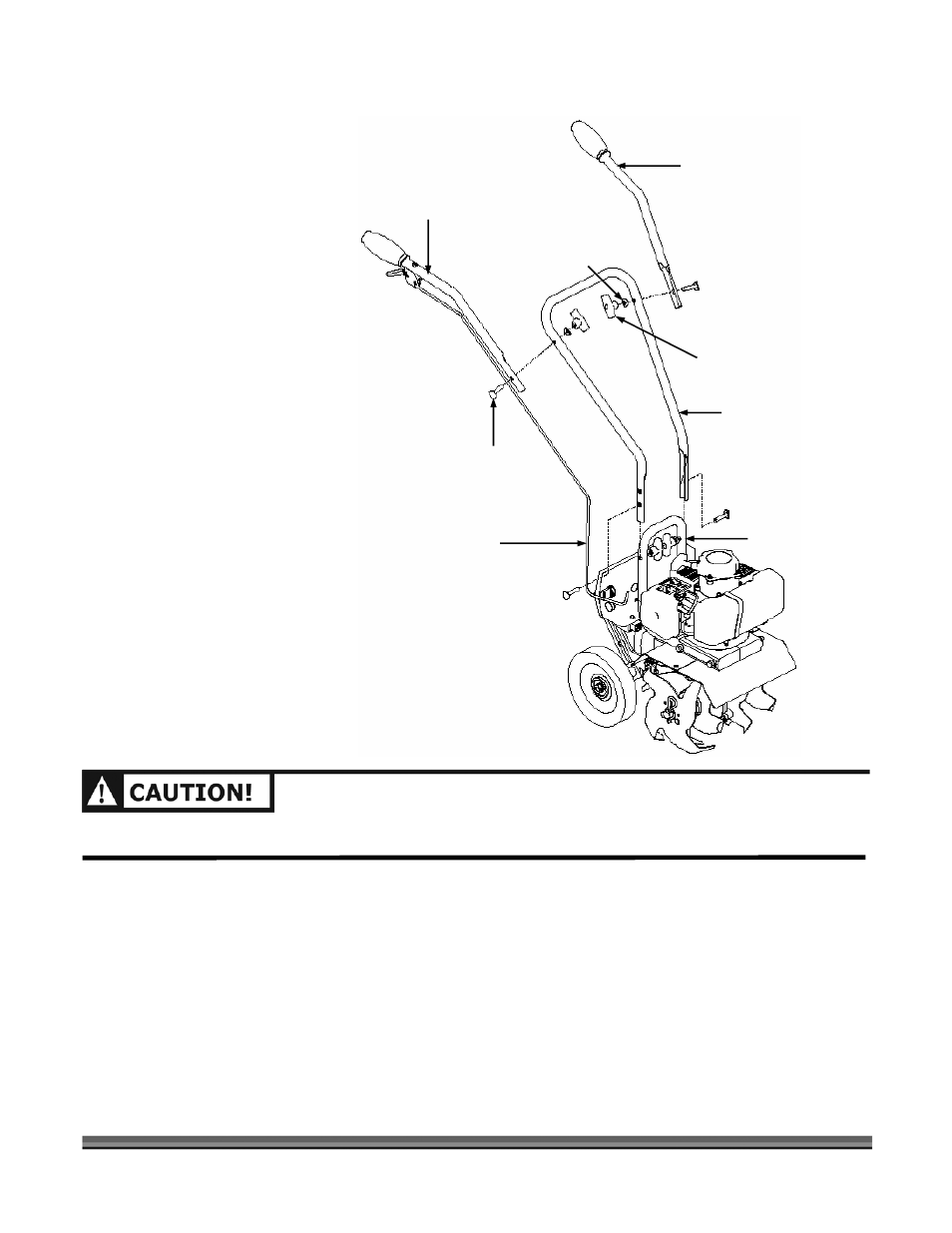

Figure 2
Upper Left Handlebar
Upper Right Handlebar
Curved Washer
(4 places)
T-Handle Nut
(4 places)
Handle Clamp Bolt
(4 places)
Throttle Cable
Middle Handlebar
Lower Handlebar
