26 DR
®
POWERWAGON-PREMIER
Parking Brake Cable Adjustment
NOTE: The Parking Brake Cable, located on the right side of the machine, is factory set (Figure 22). If you
think the Parking Brake Cable needs adjustment, you may actually need to replace the Parking Brake
Pads. See below.
Changing the Parking Brake Pads
WHEN PERFORMING ANY MAINTENANCE, YOU MUST FIRST SHUT OFF THE ENGINE, SET THE
PARKING BRAKE, WAIT FIVE (5) MINUTES TO ALLOW PARTS TO COOL AND DISCONNECT THE SPARK
PLUG WIRE, KEEPING IT AWAY FROM THE SPARK PLUG.
NOTE: If your DR POWERWAGON-PREMIER rolls on slopes when the Parking Brake is set, and you have
tried adjusting the Parking Brake, the Parking Brake Pads may need replacement.
Tools & Supplies Needed:
•
1/2" Wrench or Socket
•
Mat or container for loose parts
NOTE: You may want to remove the Wheel to provide easier
access to the Parking Brake area. See page 24.
1. Find a level area to work. The Parking Brake should NOT
be engaged. Chock the Wheels so the machine cannot
move.
2. Locate the Parking Brake Caliper at the right front of the
machine (Figure 23). Remove the two (2) Caliper Bolts
holding the Parking Brake Caliper with a 1/2" Wrench, and
then carefully remove the Caliper.

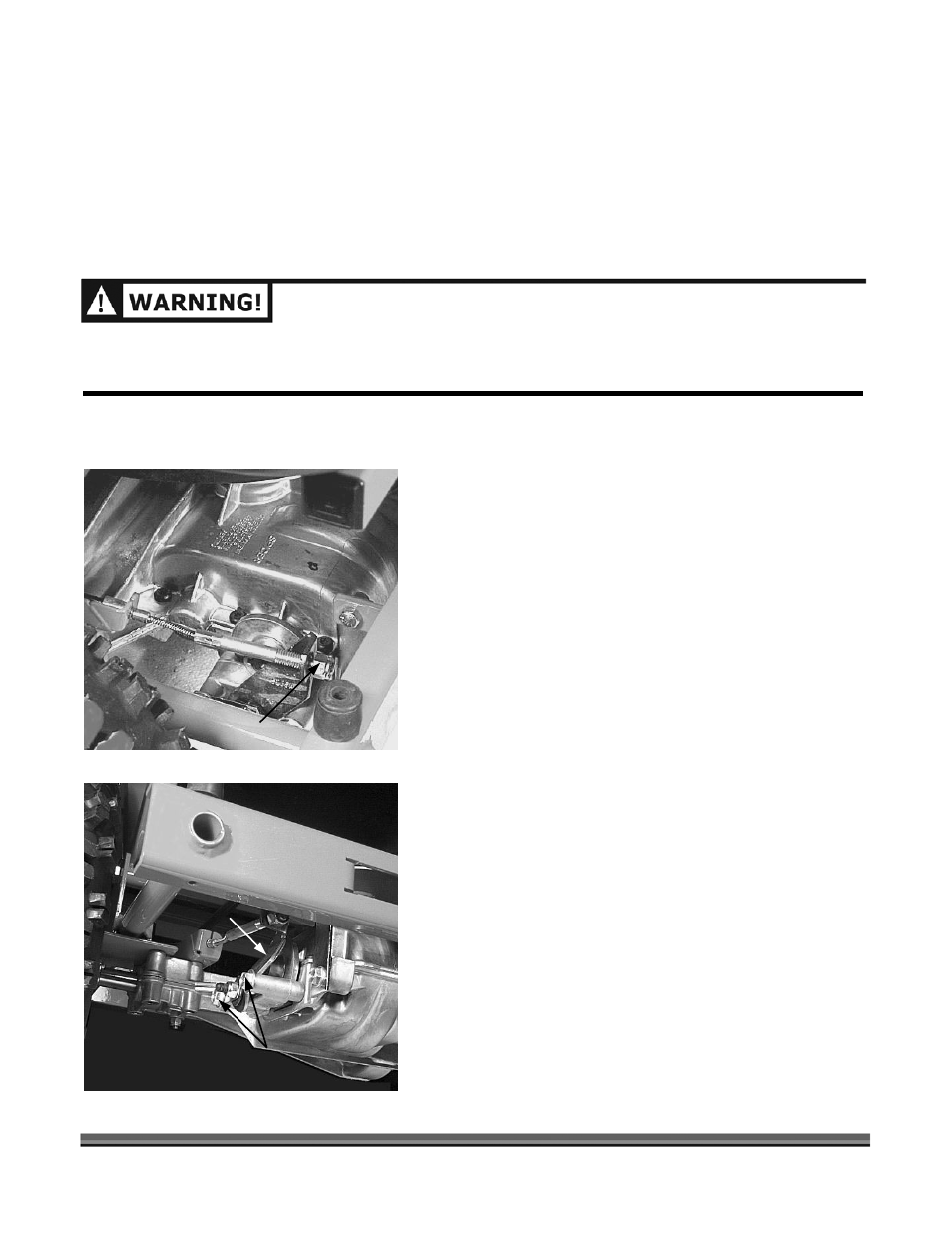

Figure 22
Brake Cable Adjustment
Figure 23
Brake Caliper
Two (2) Caliper Bolts
